Body repairs – exterior · Exterior equipment · Radiator grille and front trim
Radiator grille and front trim
1.1 Assembly overview - radiator grille
⇒ 1.1.1 Assembly overview – radiator grille GTI
⇒ 1.1.2 Assembly overview - radiator grille
1.1.1 Assembly overview – radiator grille »GTI«
- 1 Radiator grille »GTI«
- Removing and installing ⇒ 1.2 Removing and installing radiator grille
- 2 Trim strip
- Upper right
- Engaged in radiator grille -1-.
- 3 Honeycomb grille
- Removing and installing ⇒ 9.4.2 Removing and installing emblems at vehicle front, Polo BlueMotion
- 4 Trim strip
- Upper left
- Engaged in radiator grille -1-.
- 5 Badge
- Removing and installing ⇒ 9.4.2 Removing and installing emblems at vehicle front, Polo BlueMotion
- 6 Trim strip
- Lower left
- Engaged in radiator grille -1-.
- 7 Trim strip
- Lower right
- Engaged in radiator grille -1-.
- 8 Emblem »GTI«
- Engaged in radiator grille -1-.

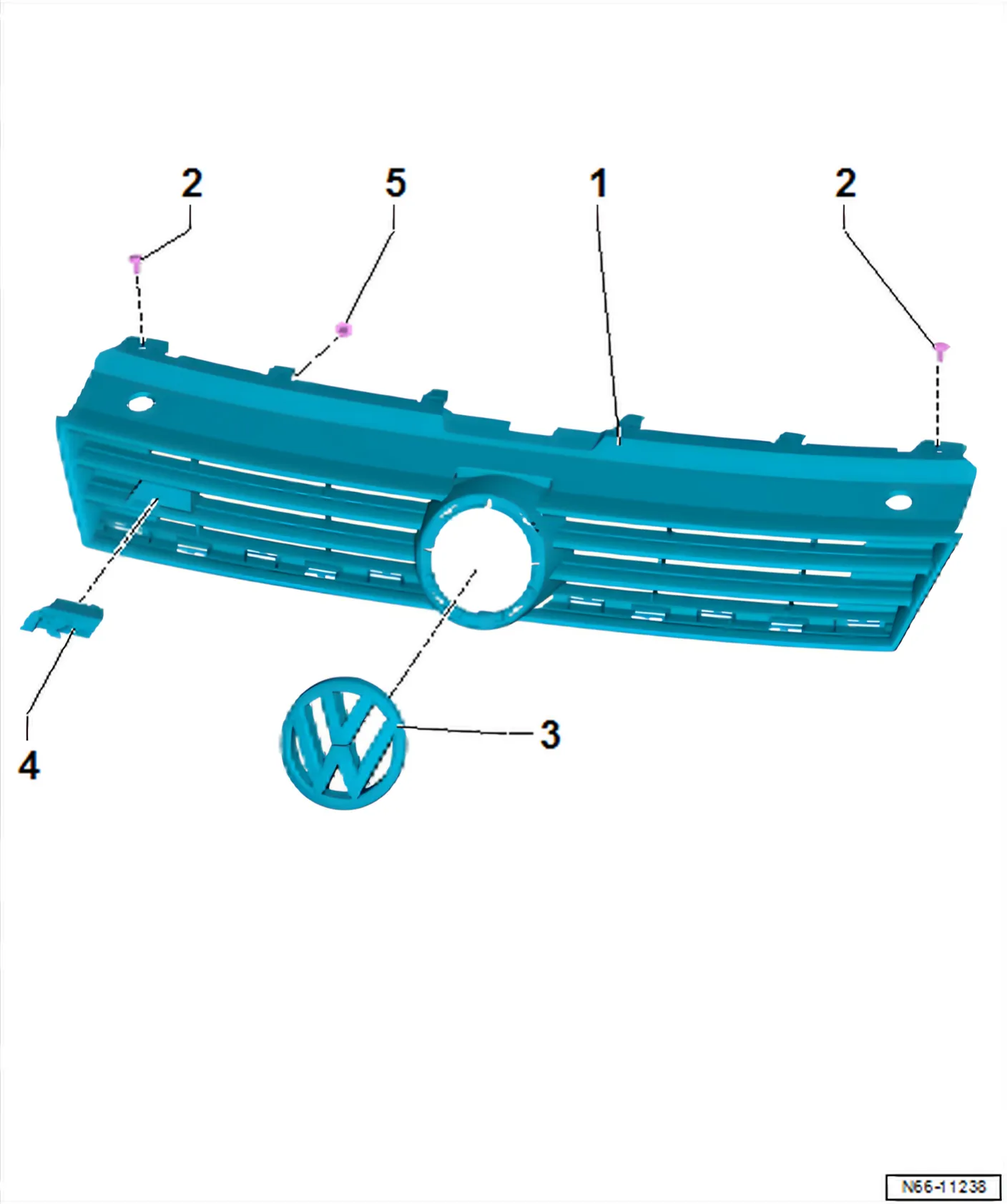

1.1.2 Assembly overview - radiator grille
Volkswagen R GmbH, optional equipment, »R Line«
- 1 Radiator grille
- Removing and installing ⇒ 1.2 Removing and installing radiator grille
- 2 Bolts
- Qty. 2
- 2 Nm
- 3 Badge
- Removing and installing ⇒ 9.4.2 Removing and installing emblems at vehicle front, Polo BlueMotion
- 4 Emblem
- Removing and installing ⇒ 9.4.4 Removing and installing emblems at vehicle front, Polo “R-Line”
- 5 Bolt
- 2 Nm
1.2 Removing and installing radiator grille
Volkswagen R GmbH, optional equipment, »R Line«
Special tools and workshop equipment required
- Torque wrench - V.A.G 1783-
- Removal wedge - 3409-
Removing
- Unscrew bolts -2-.
- Release 4 locking hooks -arrows a- from lock carrier.
- Pull upper area of radiator grille -1- out of lock carrier -arrows b-.
- Release 6 locking hooks -arrows c- from bumper using removal wedge - 3409-.
- Pull radiator grille -1- out of front bumper cover in direction of -arrow d-.
Installing
- Insert radiator grille -1- into front bumper cover and lock carrier.
- Applying slight pressure, engage all locking hooks -arrows aand -arrows c-.
Specified torques
