Rear mud flaps 6R0075101

Step-by-step fitting of the rear mud flaps on the Volkswagen Polo from 2009.

Fitting

Part number:
6R0 075 101
Vehicle:
Polo 2009– (6R)

Scope of delivery

Rear mud flaps (left and right) with fixings
Rear mud flaps (left and right) with fixings

Fitting

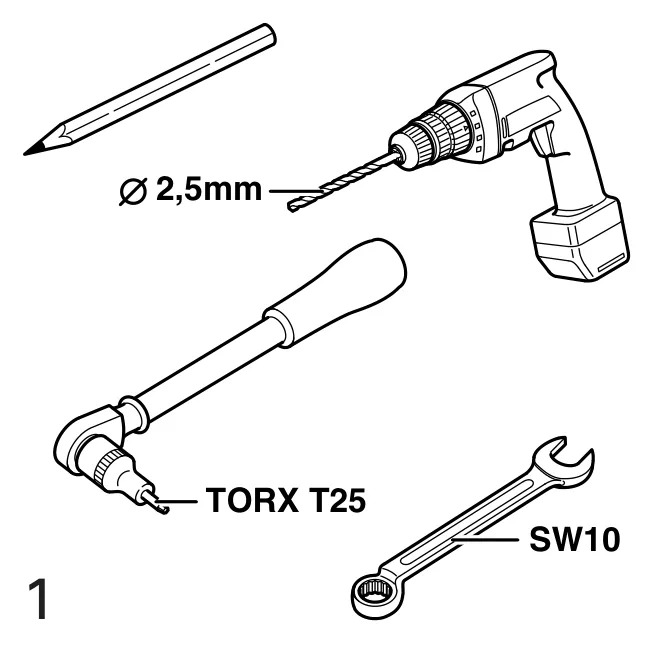

1. Tools: pencil, drill with a Ø 2,5 mm bit, Torx T25 key, 10 mm open-end spanner.
1. Tools: pencil, drill with a Ø 2,5 mm bit, Torx T25 key, 10 mm open-end spanner.

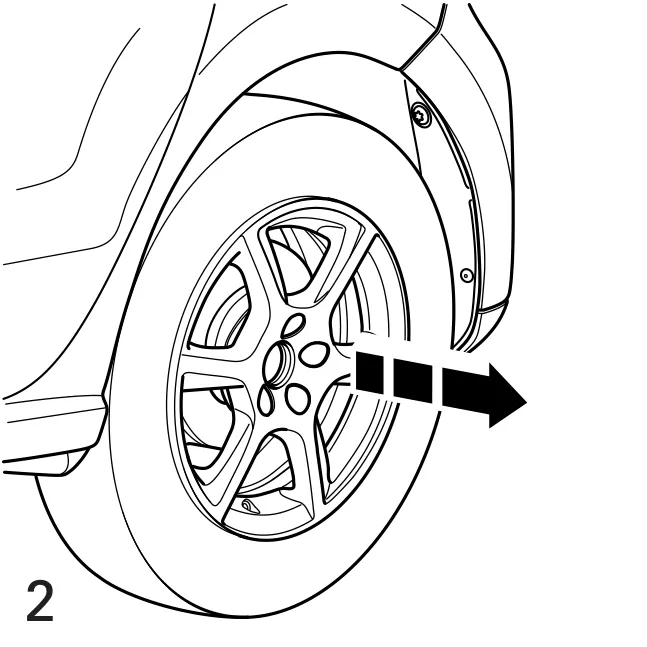

2. Remove the rear wheel.
2. Remove the rear wheel.

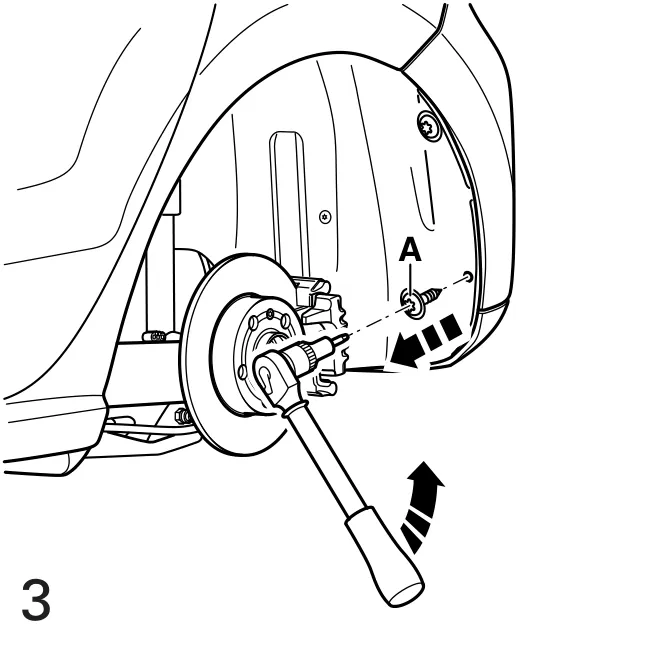

3. Unscrew the screw (A) from the wheel housing.
3. Unscrew the screw (A) from the wheel housing.

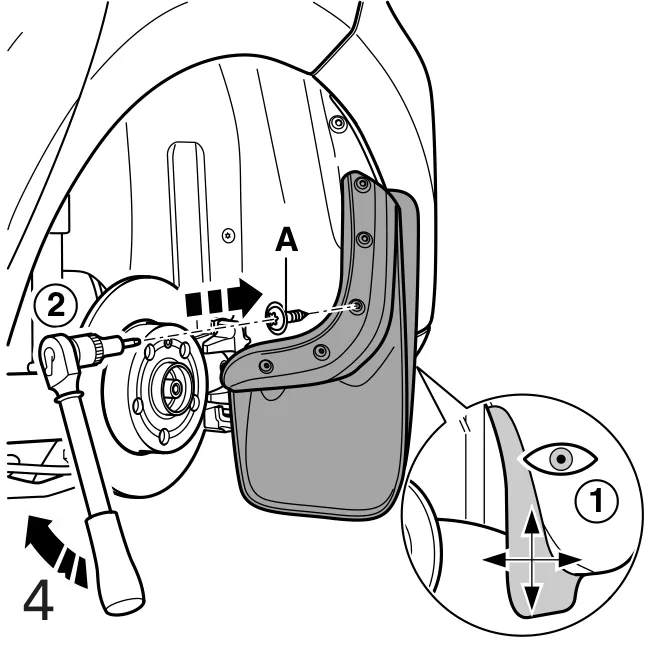

4. Hold the mud flap in place, align it (1) and screw it on with the screw (A) (2).
4. Hold the mud flap in place, align it (1) and screw it on with the screw (A) (2).

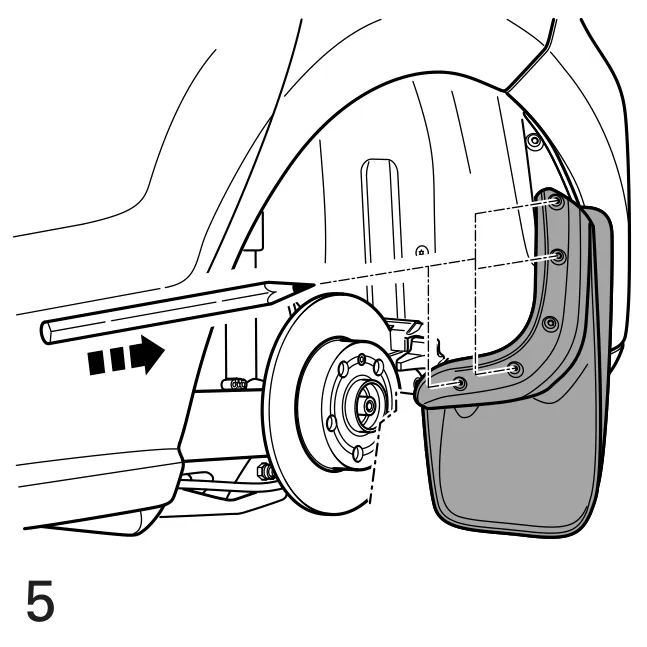

5. Mark the hole positions with a pencil through the holes in the mud flap.
5. Mark the hole positions with a pencil through the holes in the mud flap.
6. Unscrew the screw (A) and take the mud flap off.
6. Unscrew the screw (A) and take the mud flap off.

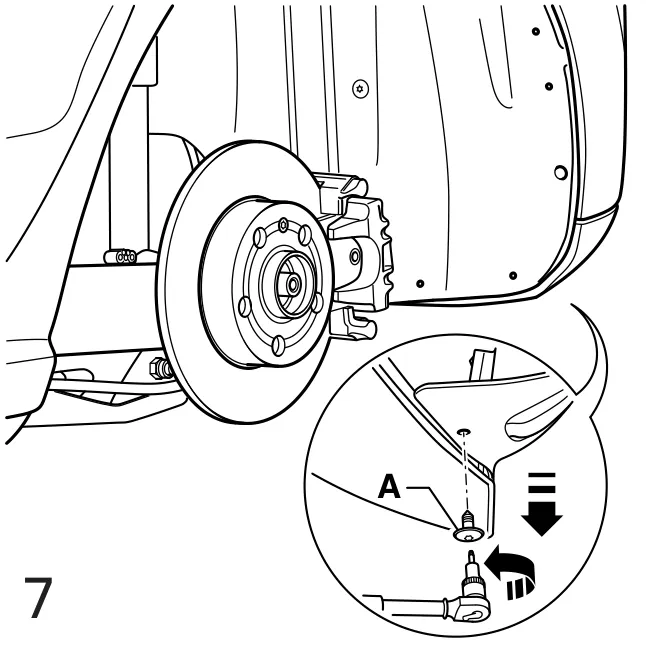

7. Remove the fastener (A) from the lower edge of the wheel housing.
7. Remove the fastener (A) from the lower edge of the wheel housing.

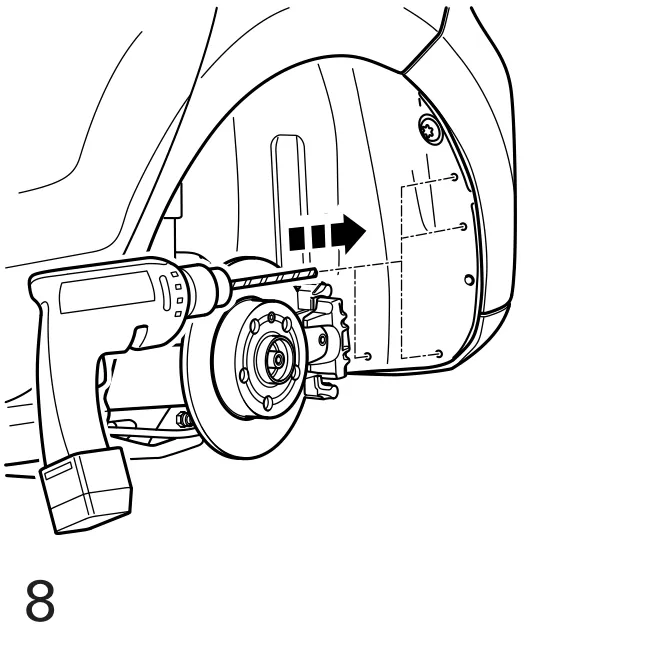

8. Drill the marked holes.
8. Drill the marked holes.

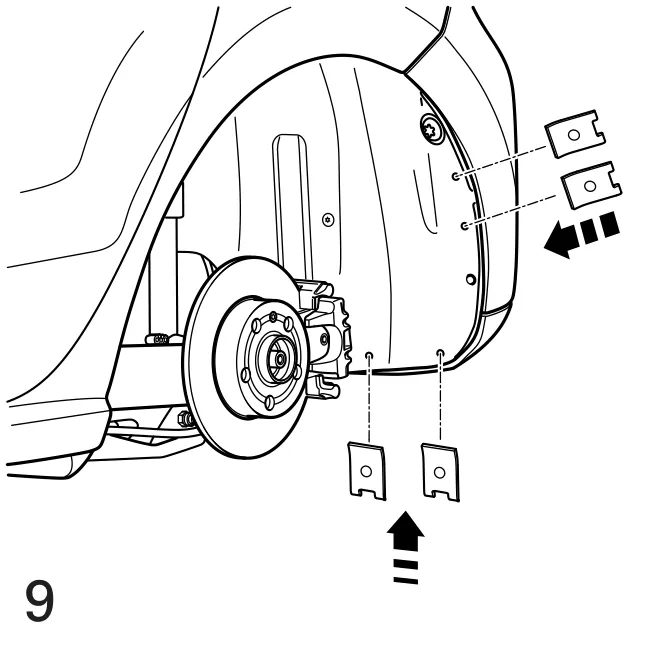

9. Push the clips onto the holes.
9. Push the clips onto the holes.

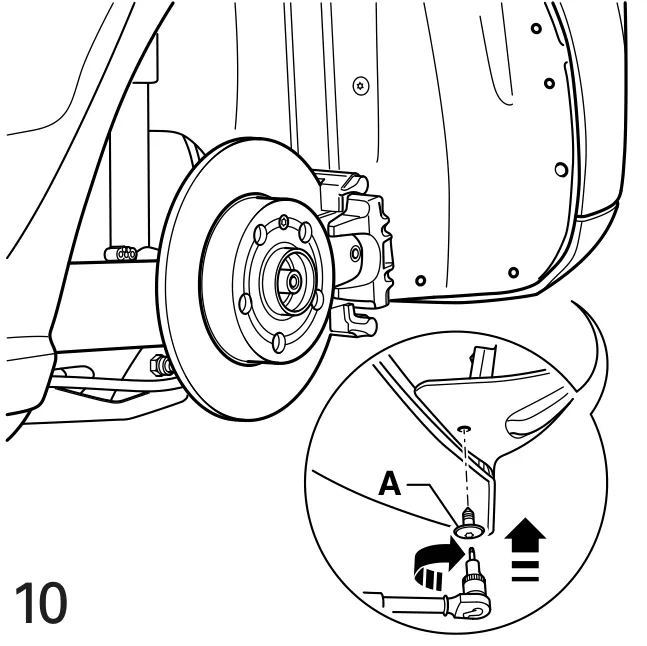

10. Refit the fastener (A).
10. Refit the fastener (A).

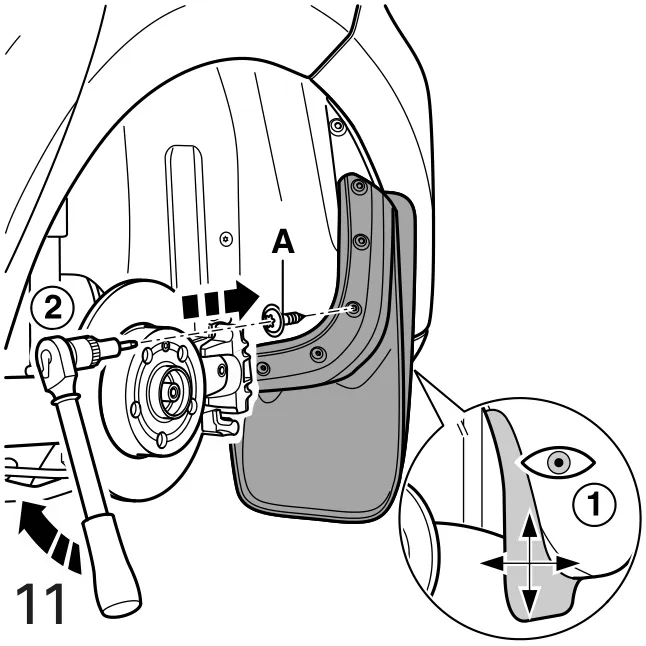

11. Hold the mud flap in place, align it (1) and screw it on with the screw (A) (2).
11. Hold the mud flap in place, align it (1) and screw it on with the screw (A) (2).

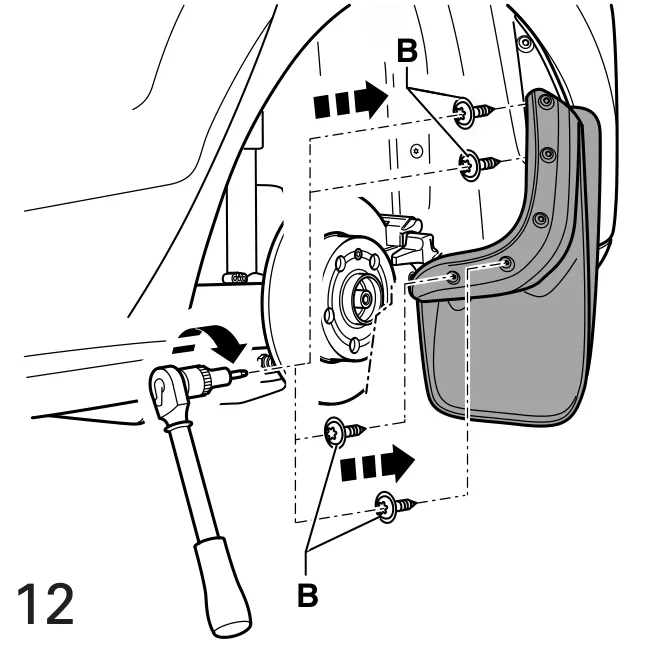

12. Screw the mud flap on with the screws (B).
12. Screw the mud flap on with the screws (B).

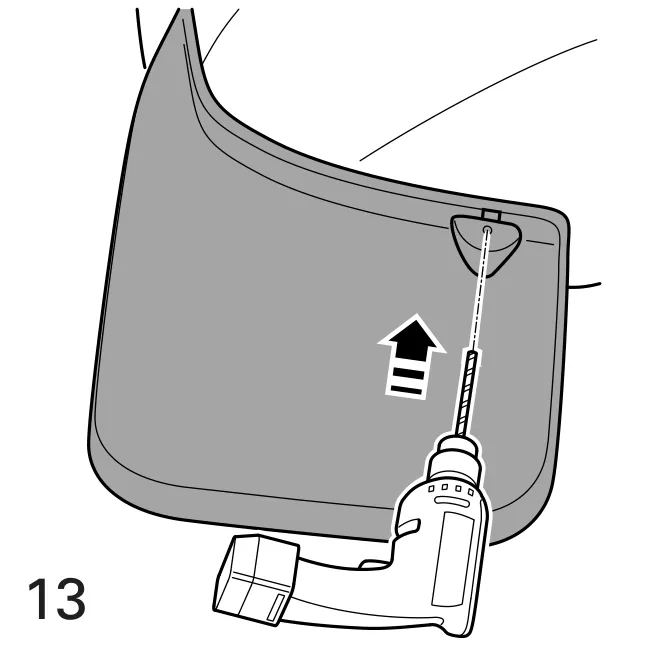

13. Drill the hole through the mud flap's tab.
13. Drill the hole through the mud flap's tab.

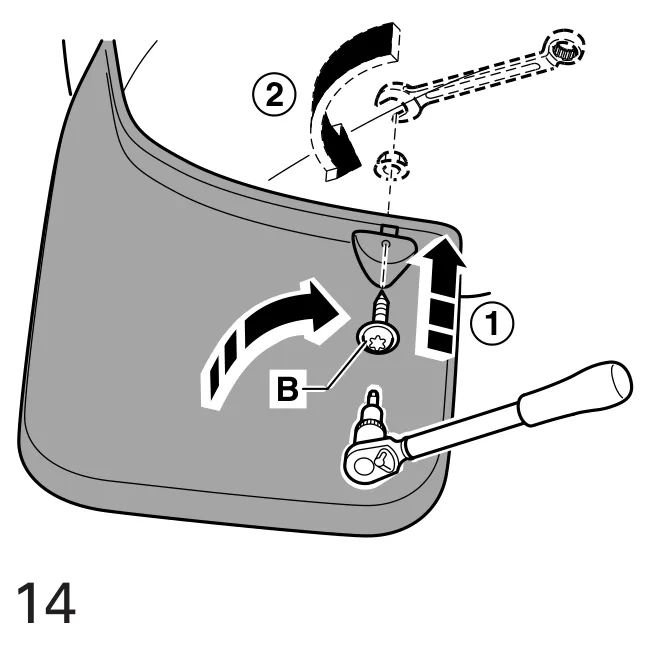

14. Fasten the tab with a screw (B) and nut.
14. Fasten the tab with a screw (B) and nut.

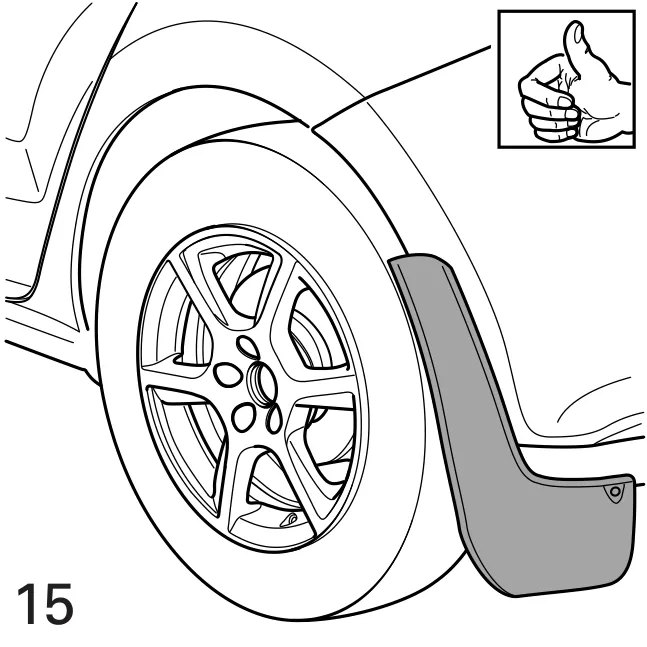

15. Refit the wheel.
15. Refit the wheel.
