Body repairs – exterior · Exterior equipment · Lettering and emblems

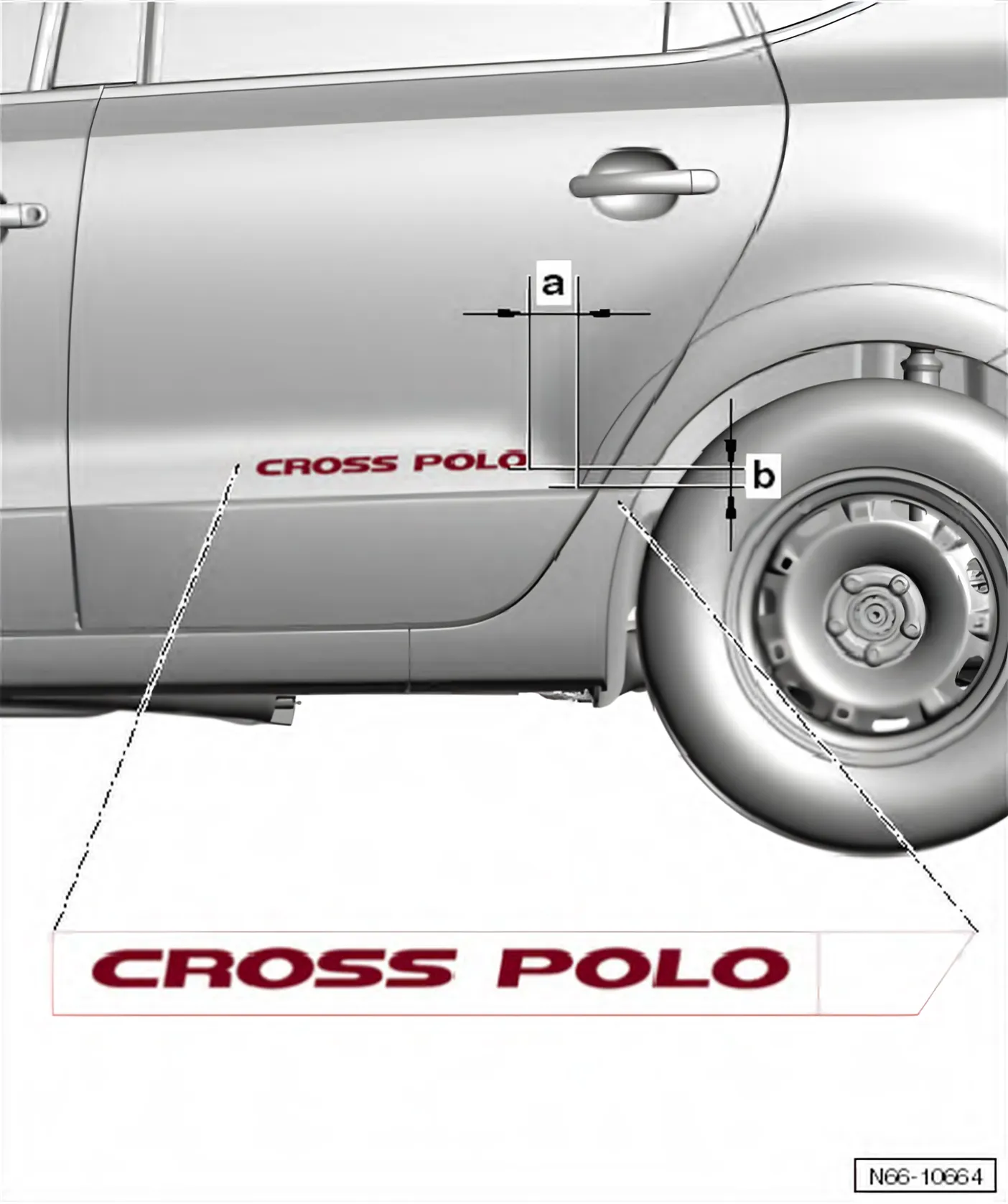

Dimensions – lettering, rear door
Assembly notes ⇒ 9.5 Removing and installing lettering and emblems
Removing
- Before removing the film with lettering, heat it with the hot air blower - V.A.G 1416-.
- Carefully pull off film with lettering from rear door.
Installing
Observe assembly instructions ⇒ 9.5 Removing and installing lettering and emblems.
- Film with lettering -dimension a = 65 mm- from outer edge of rear door cover to lettering.
- Film with lettering -dimension b = 15 mm- from upper edge of rear door cover to lettering.
- After bonding, remove mounting tape.
