Body repairs – exterior · Exterior equipment · Lettering and emblems

Removing and installing lettering and emblems

Special tools and workshop equipment required

Note

The vertical and horizontal dimensions of lettering for the different engines are identical.
When fitting the lettering, observe the assembly instructions as follows.

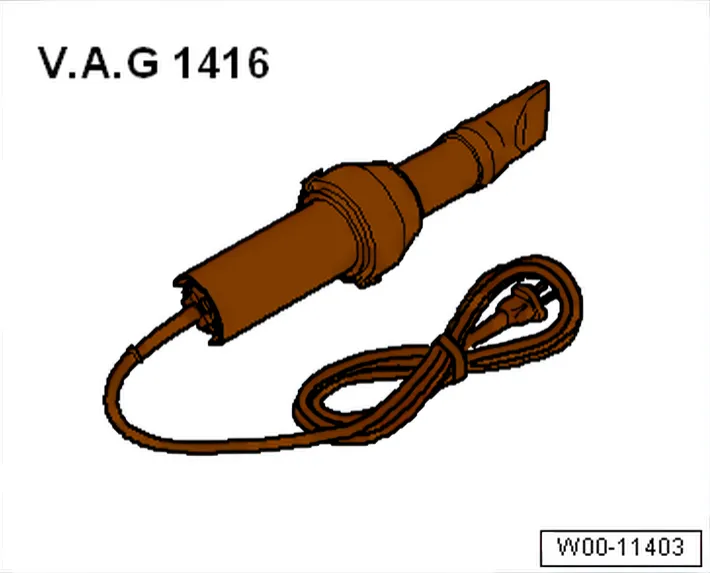

Before removing the lettering, heat it with a hot air blower - V.A.G 1416-.
If lettering is fitted for the first time on a new vehicle or on newly painted surfaces, observe the procedure in ⇒ Workshop manual “Paint”; ⇒ Paintwork repairs; ⇒ Paint finish; ⇒ Mouldings & film.
If a lettering is removed and reinstalled, only use adhesive remover to remove the adhesive remains.
Remove any glue residue from adhesive tape using adhesive strip remover - VAS 6349-.
Ensure that the adhesive surfaces are free of dust and grease.
The lettering must be bonded in place immediately after cleaning.
Remove protective film immediately before installation.
Working temperature is approx. 21 °C.
Lettering cannot be removed without damage.
