Body repairs – exterior · Exterior equipment · Mouldings, trims, extensions

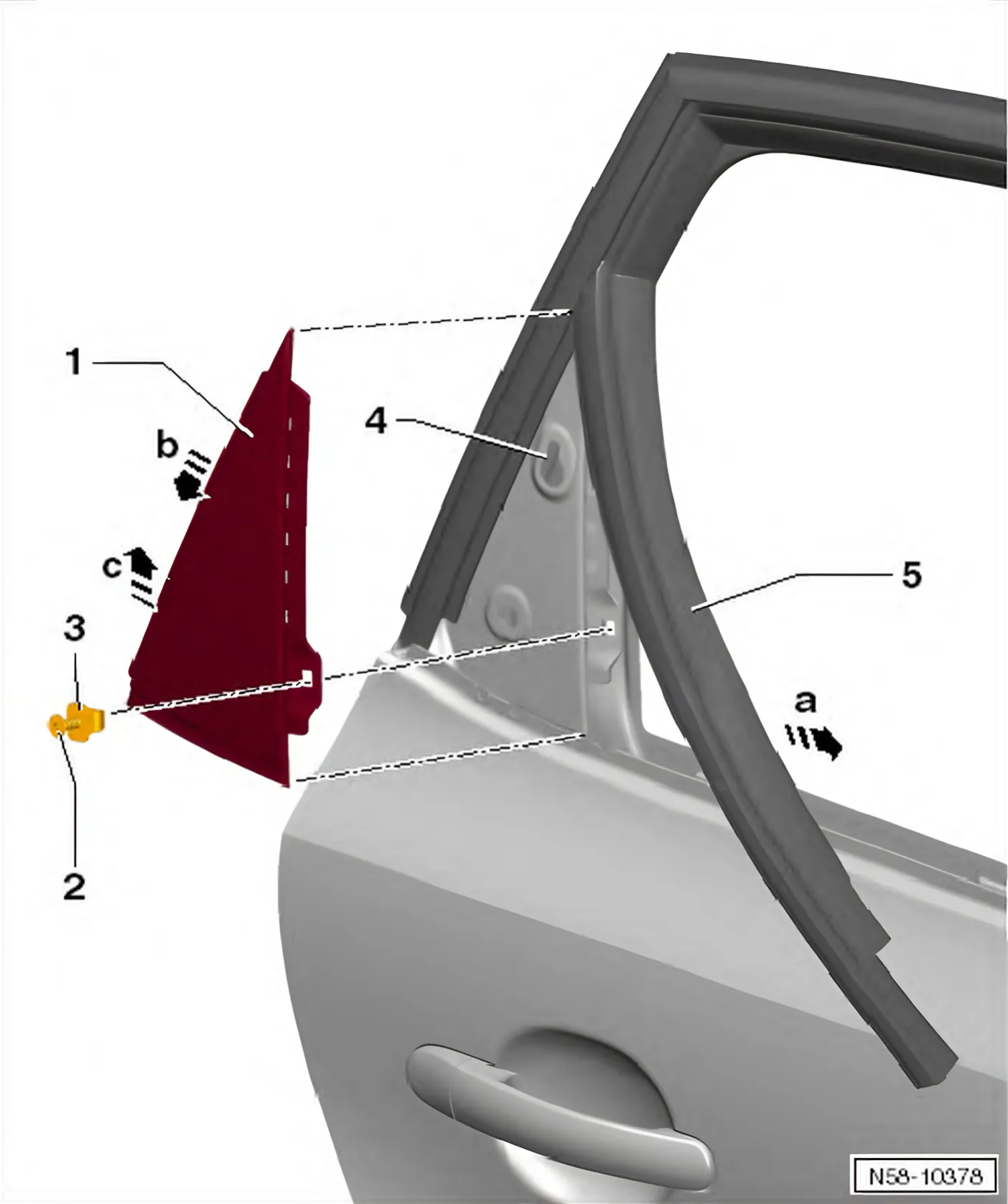

Removing and installing C-pillar trim on door
Removing
- Pull window channel -5- out of door -arrow a-.
- Unscrew bolt -2- and remove clip -3-.
- Push trim -1- downwards a little -arrow b- and then pull it off the door -arrow c-.
Installing
- Check clip -3- and bolt -2- for damage and renew if necessary.
- Position trim on door so that bracket grips in hole -4- -arrow a-.
- Push trim -1- upwards -arrow b-.
- Fit clip -3- and bolt -2- in place.
- Tighten bolt -2-, specified torque: 1 Nm.
- Push window channel -5- into door -arrow c-.
