Dimensions - lettering and emblems on rear lid

⇒ 9.1.1 Dimensions - lettering and emblems on rear lid

⇒ 9.1.2 Dimensions – rear lettering, Polo “GTI”

⇒ 9.1.3 Dimensions – lettering and emblems on rear lid, Polo BlueMotion

⇒ 9.1.4 Dimensions – lettering and emblems on rear lid, Polo BlueGT

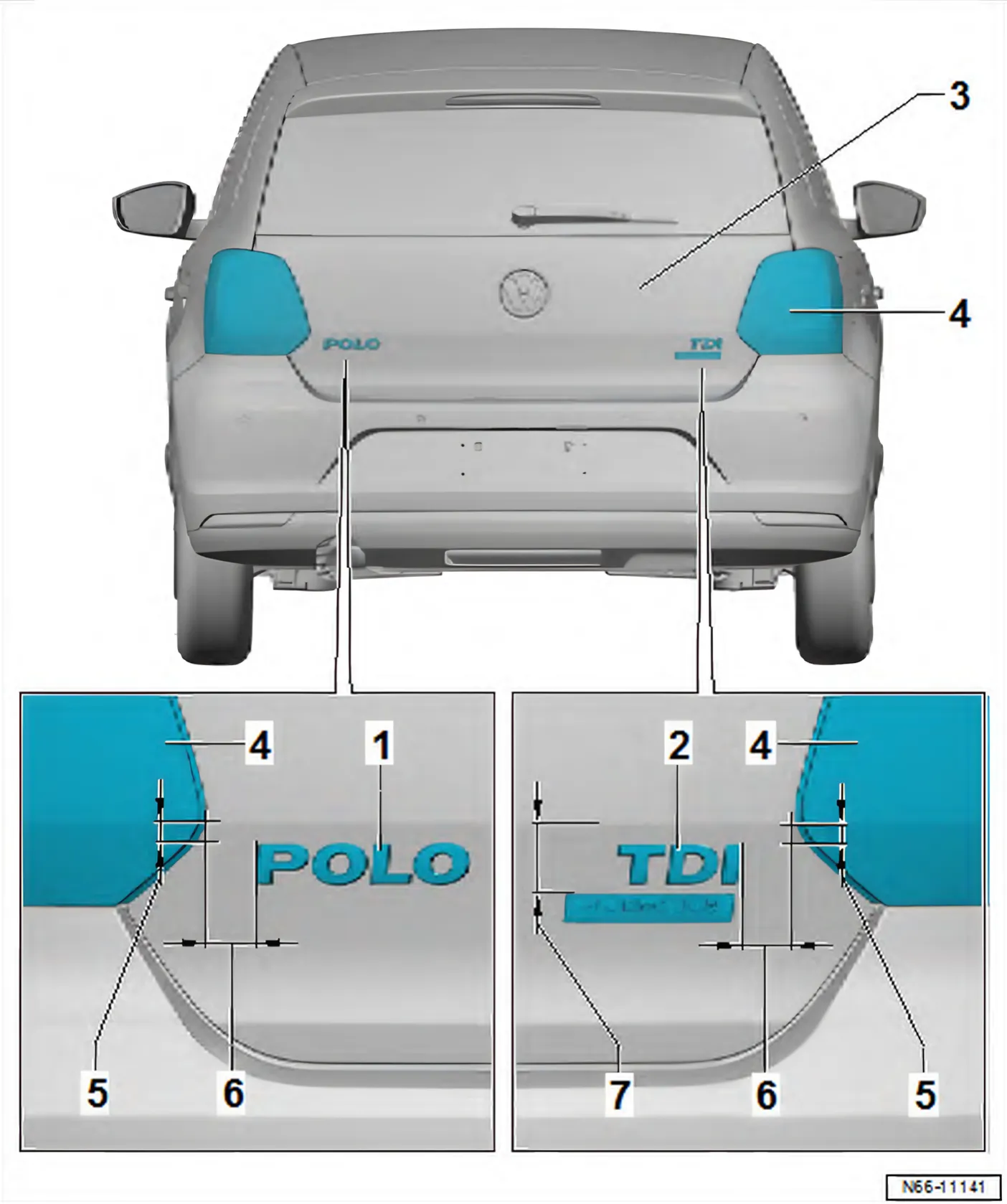

9.1.1 Dimensions - lettering and emblems on rear lid

• 1 Lettering
  • Model designation.
• 2 Lettering
  • Engine designation
• 3 Rear lid
• 4 Tail light
• 5 Height dimension
  • 12 mm from edge in rear lid to lettering
• 6 Horizontal dimension
  • 33 mm, from outer edge of rear lid to lettering.
• 7 Height dimension
  • 8.0 mm gap between edges of lettering

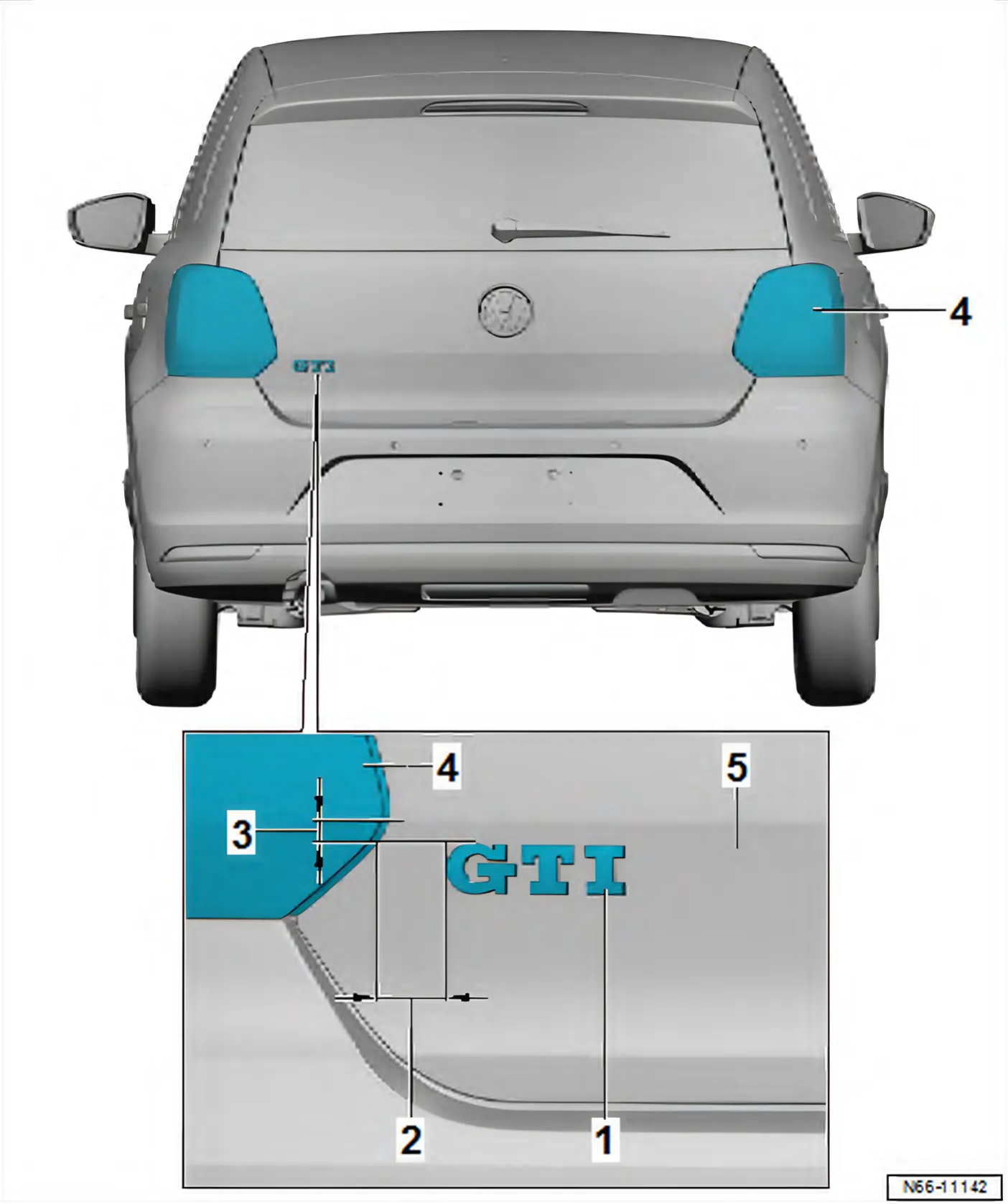

9.1.2 Dimensions – rear lettering, Polo “GTI”

• 1 Lettering
  • Depending on model designation
• 2 Horizontal dimension
  • 33 mm, from outer edge of rear lid to lettering.
• 3 Height dimension
  • 11 mm from edge in rear lid to lettering
• 4 Tail light
• 5 Rear lid

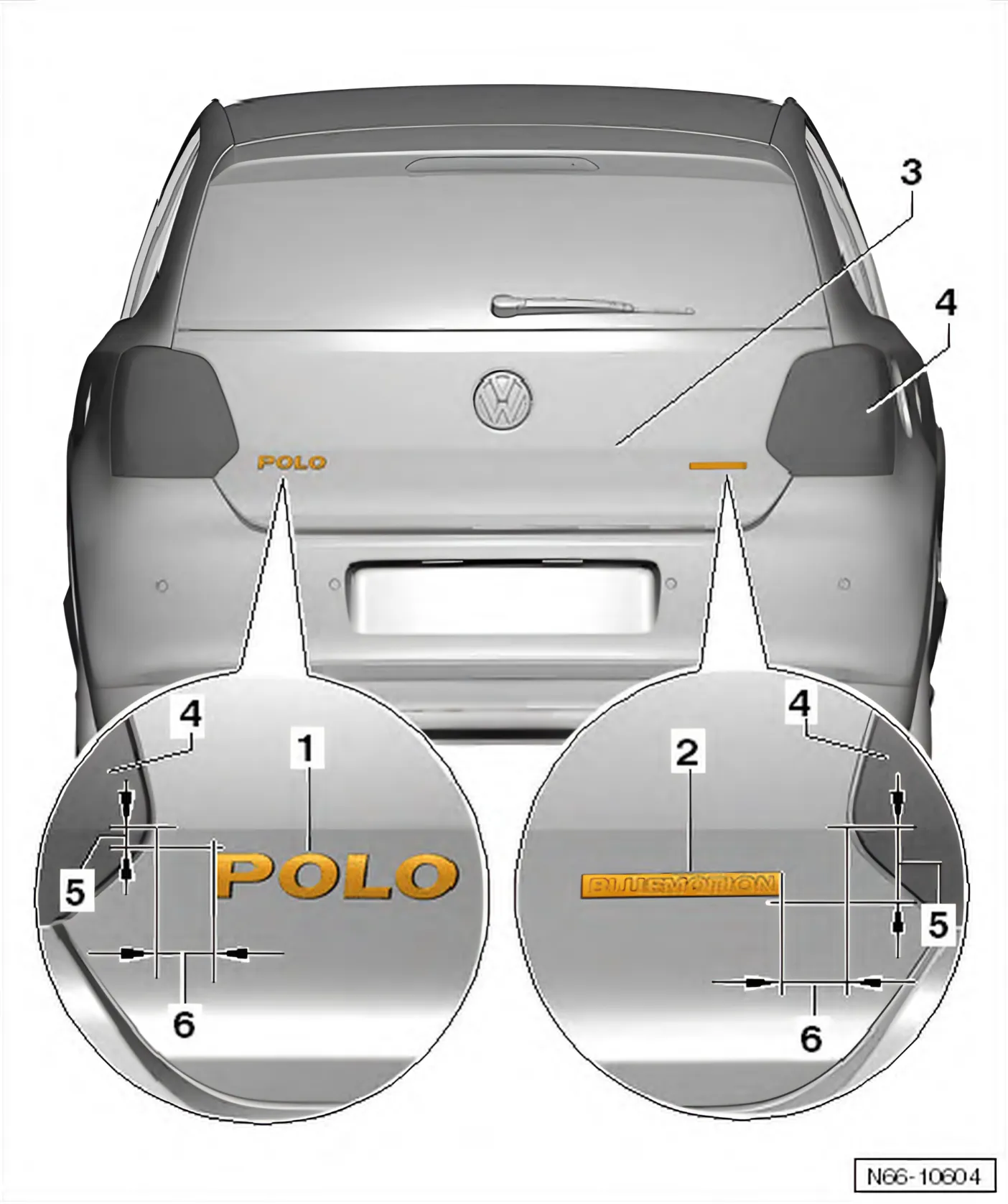

9.1.3 Dimensions – lettering and emblems on rear lid, Polo BlueMotion

• 1 Lettering
  • Model designation.
• 2 Lettering
  • Engine designation
• 3 Rear lid
• 4 Tail light
• 5 Height dimension
  • 37 mm from edge in rear lid to bottom edge of lettering.
• 6 Horizontal dimension
  • 33 mm, from outer edge of rear lid to lettering.

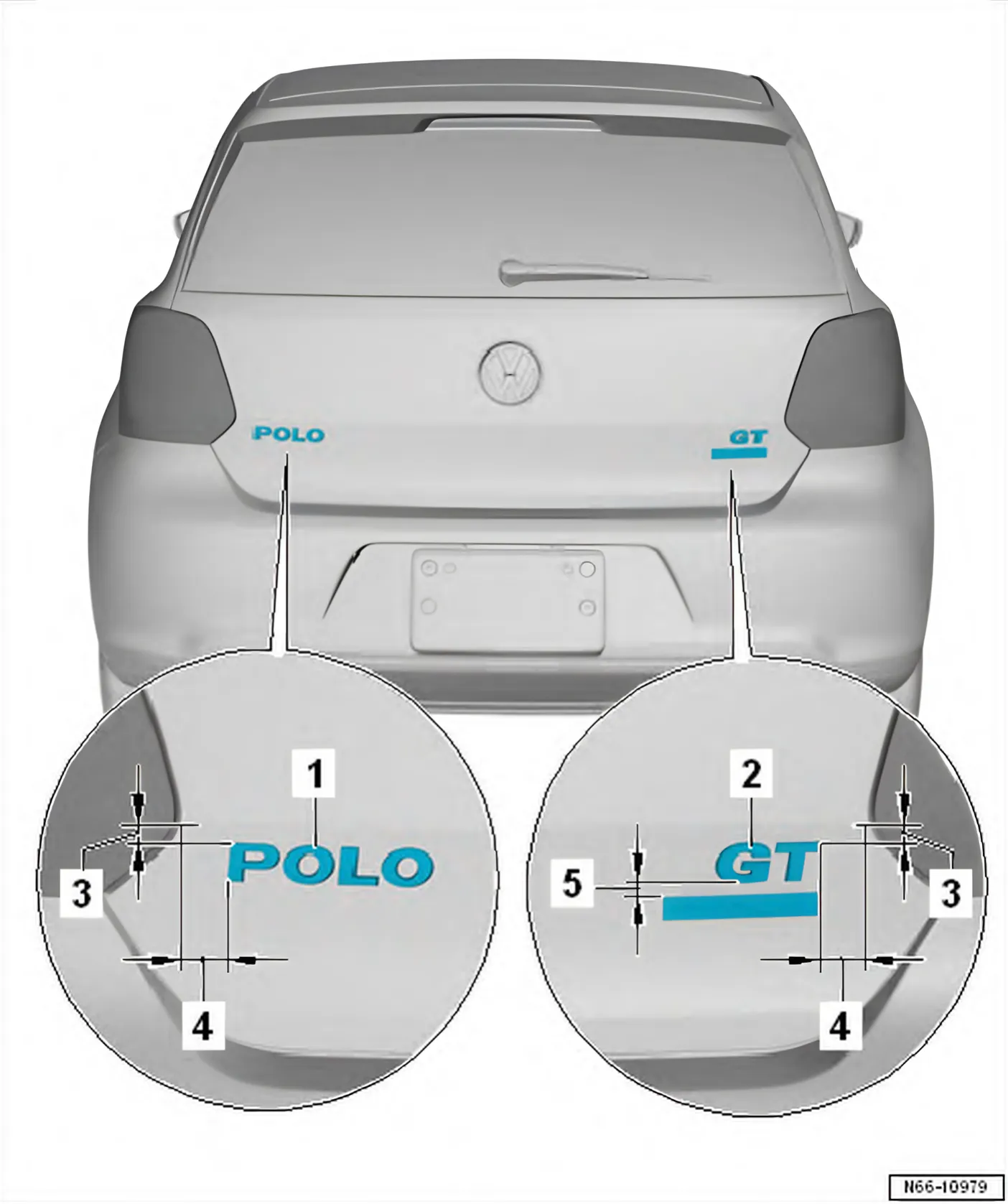

9.1.4 Dimensions – lettering and emblems on rear lid, Polo BlueGT

• 1 Lettering
  • Model designation.
• 2 Lettering
  • Engine designation
• 3 Height dimension
  • 12 mm from edge in rear lid to lettering
• 4 Horizontal dimension
  • 39 mm, from outer edge of rear lid to lettering.
• 5 Height dimension
  • 8.0 mm gap between edges of lettering
