Body repairs – exterior · Exterior equipment · Wheel housing liner

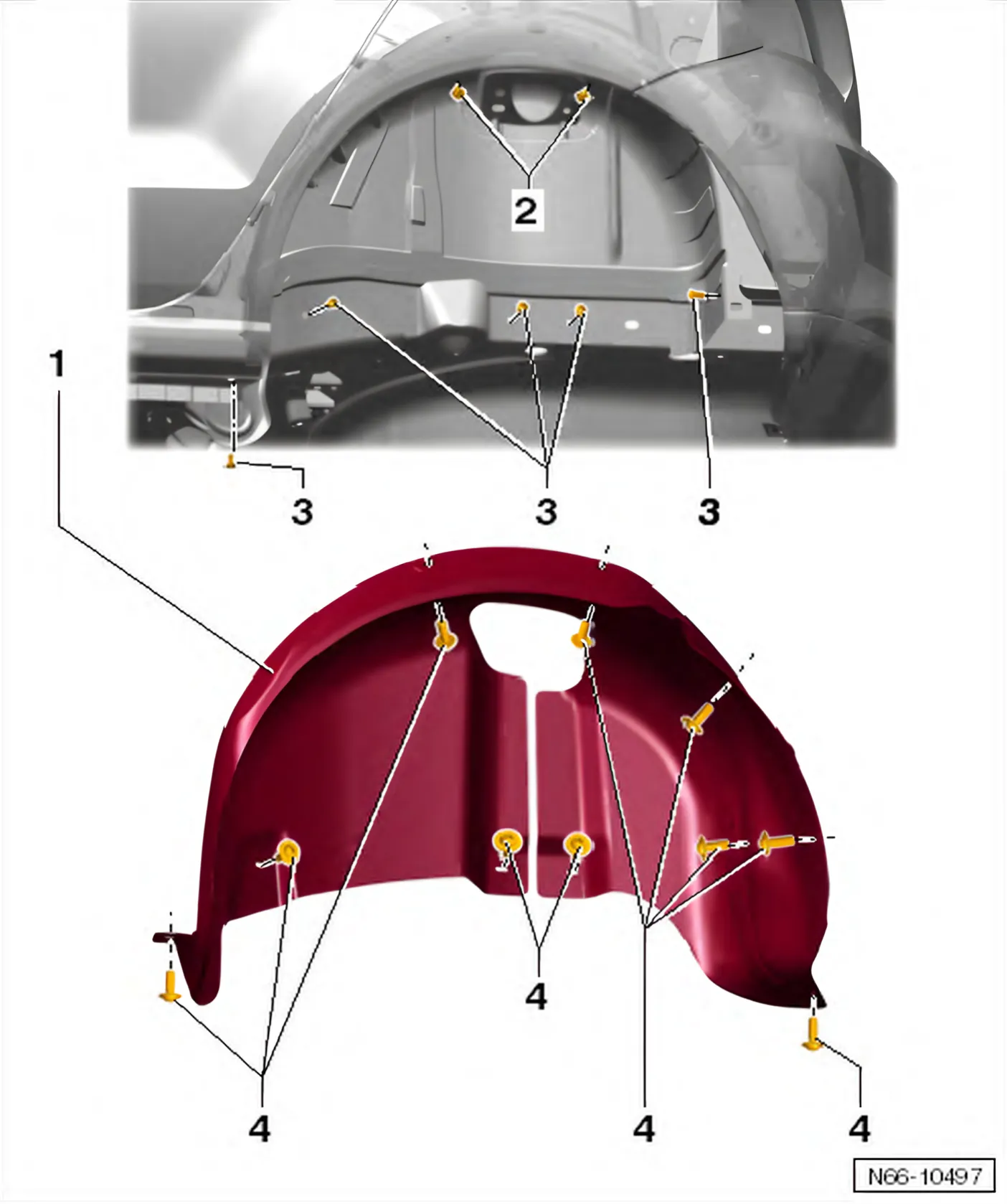

Rear wheel housing liner – assembly overview and fastening
- 1 Rear wheel housing liner
- Material: PP/EPDM
- Removing and installing ⇒ 8.4 Removing and installing rear wheel housing liner
- 2 Bolt
- Qty. 10
- Specified torque: 2 Nm
- 3 Expansion nut
- Qty. 5
- 4 Expansion nut
- Gas-tight.
- Qty. 2
The spreader nuts seal the interior against exhaust gases. They have to be renewed without fail in the event of damage.
