Body repairs – exterior · Exterior equipment · Exterior mirror
Removing and installing mirror adjustment unit
Special tools and workshop equipment required

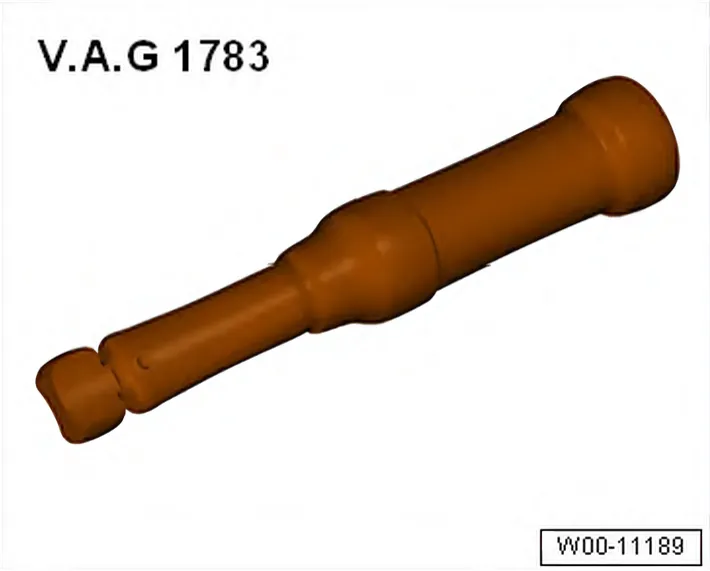

- Torque wrench 210 Nm - V.A.G 1783-
Removing
- Remove mirror glass ⇒ 7.3 Removing and installing mirror glass.

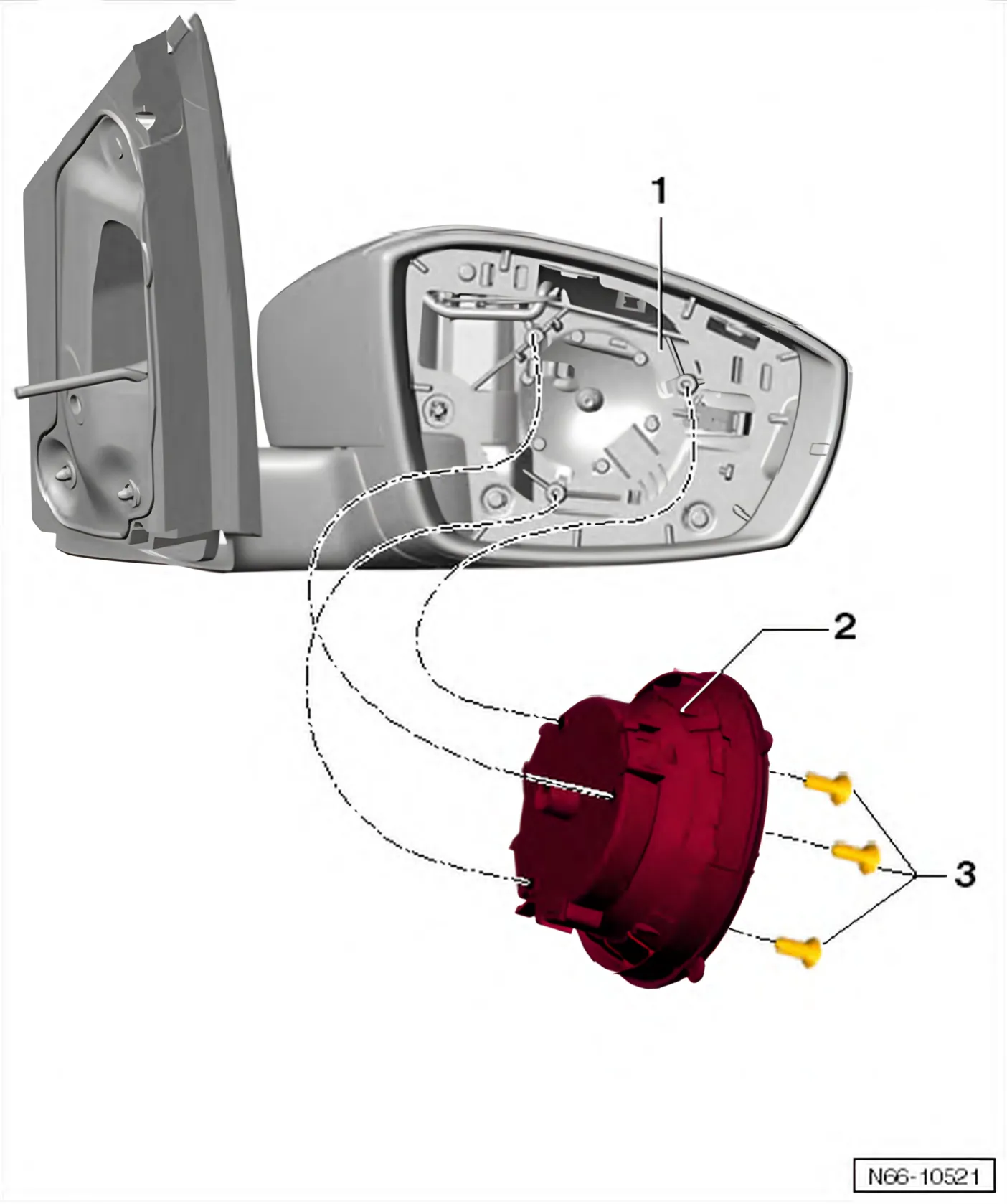

- Remove screws -3- (Qty. 3).
- Swivel adjustment unit together with motor -2- to the side and pull off connector.
Installing
Installation is carried out in the reverse sequence of removal.
- Specified torque for bolts -3-: 2 Nm.
- Carry out functional check before installing mirror glass.
