Body repairs – exterior · Exterior equipment · Mouldings, trims, extensions

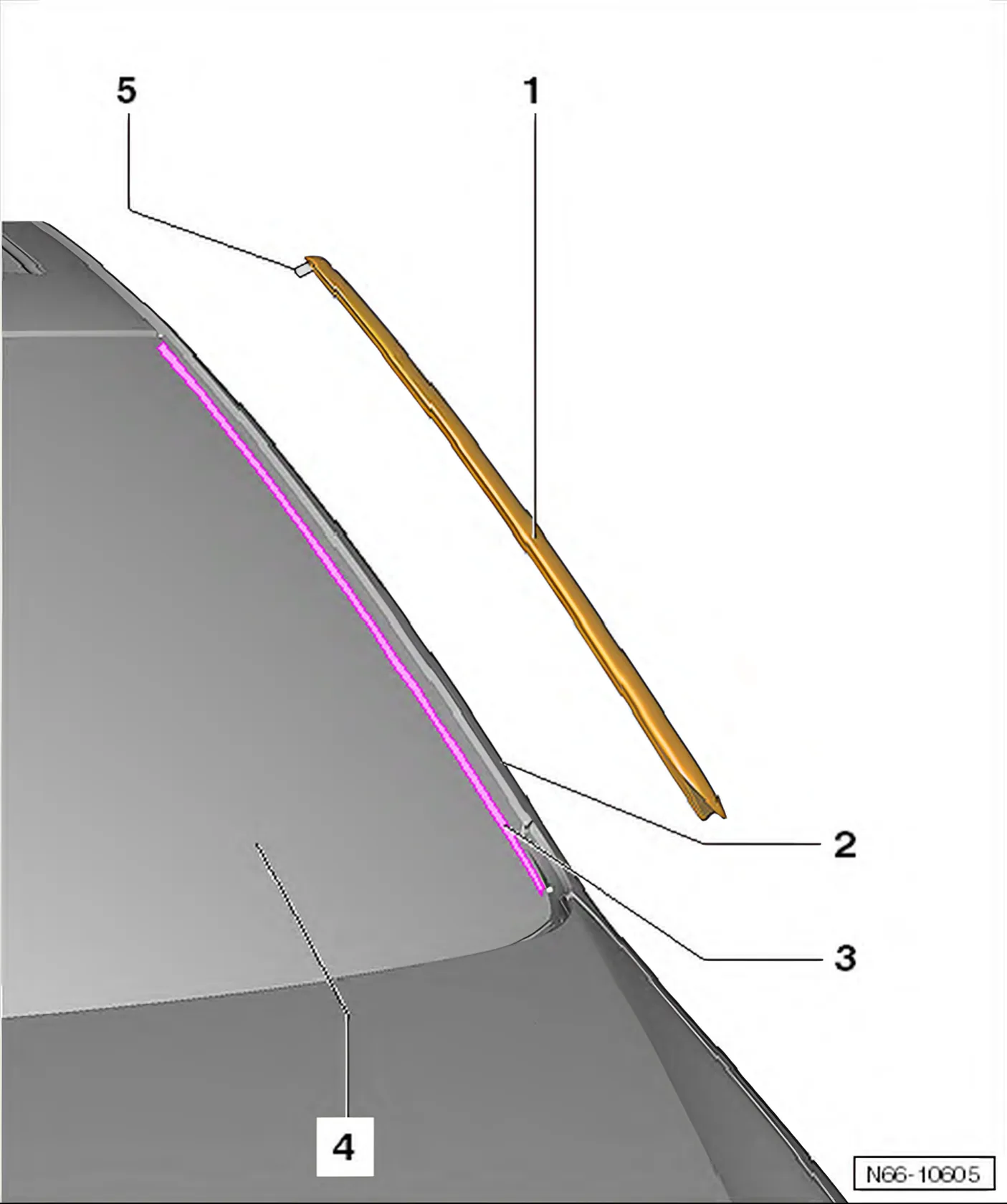

Water deflector – assembly overview and fastening
- 1 Water deflector
- Material: TPS-SEBS PP-GF30; EPDM/PP PP-GF30.
- Removing and installing ⇒ 3.11 Removing and installing water deflector
- 2 A-pillar
- 3 Bonding surfaces
- Adhesive surfaces for cleaning on windscreen.
- Prime adhesive surface before bonding-in.
- 4 Windscreen
- 5 Protective sheet
