Underbody cladding

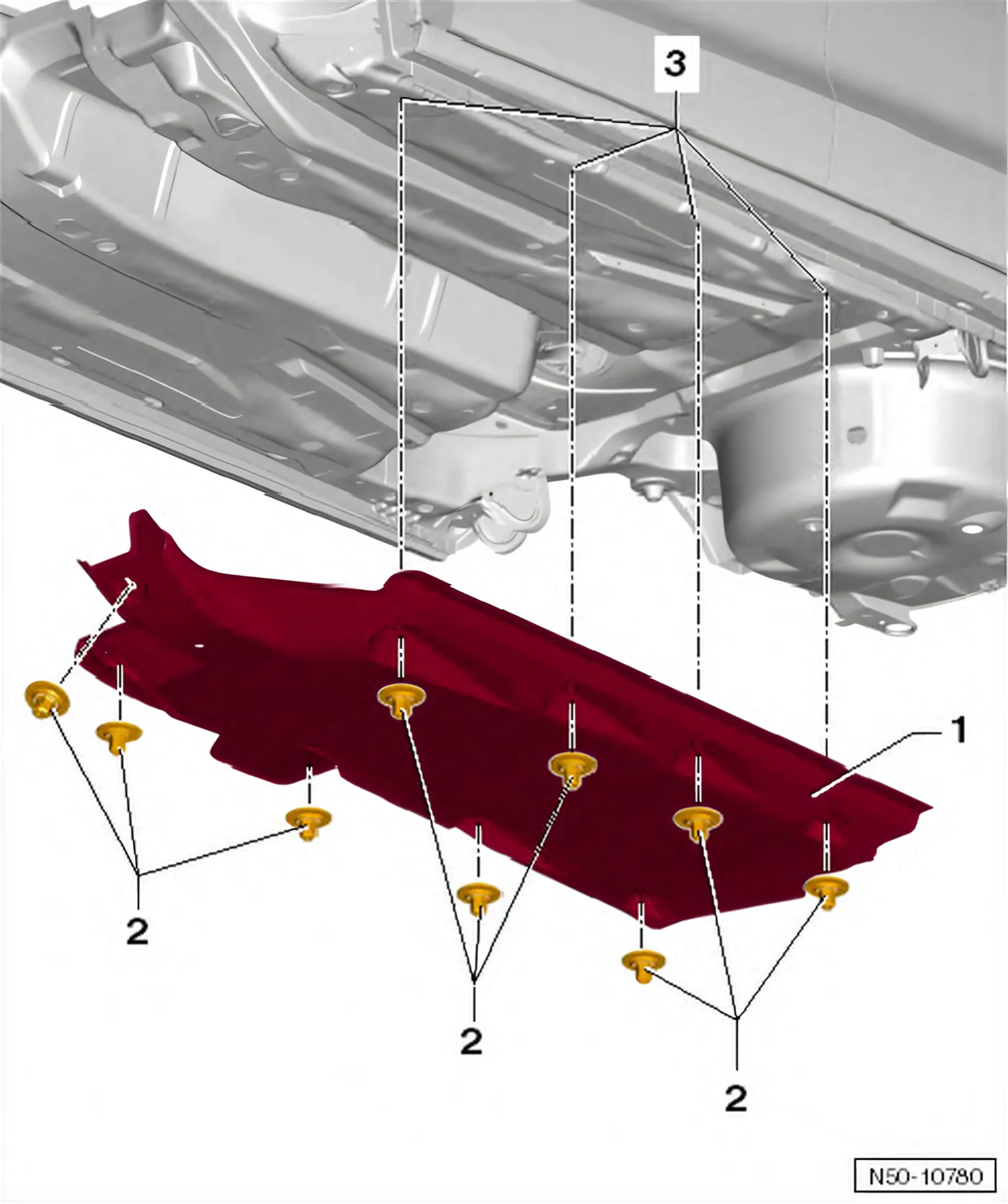

5.1 Assembly overview - underbody cladding

• 1 Underbody cladding
  • Removing:
  • Remove hexagon nuts -2-.
• 2 Hexagon nut
  • Qty. 9
  • Specified torque: 2 Nm
• 3 Threaded stud
  • Qty. 9
  • Welded to floor panel.

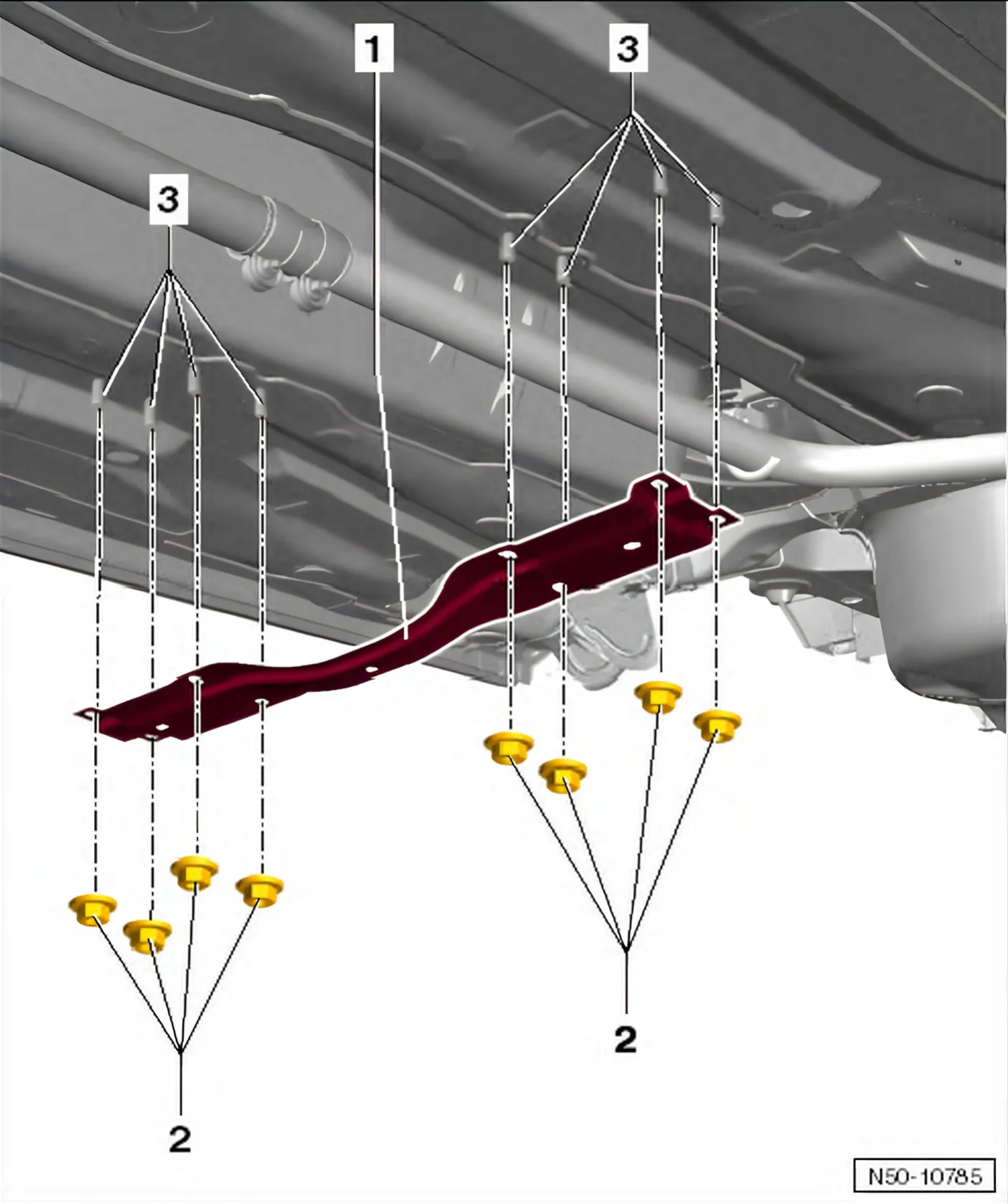

5.2 Assembly overview - tunnel cross-piece

• 1 Tunnel cross-piece
  • Removing:
  • Unscrew hexagon nuts -2- (4 on each side).
• 2 Hexagon nut
  • Qty. 4 on each side
  • Specified torque: 20 Nm
• 3 Threaded stud
  • Qty. 4 on each side
  • Welded to floor panel.
