Body repairs – exterior · Exterior equipment · Lettering and emblems
Removing and installing badges on front
⇒ 9.4.1 Removing and installing emblems at vehicle front, not Polo BlueMotion, not Polo BlueGT
⇒ 9.4.2 Removing and installing emblems at vehicle front, Polo BlueMotion
⇒ 9.4.3 Removing and installing front emblems, Polo BlueGT
⇒ 9.4.4 Removing and installing emblems at vehicle front, Polo R-Line
9.4.1 Removing and installing emblems at vehicle front, not Polo BlueMotion, not Polo BlueGT
Volkswagen R GmbH, optional equipment, »R Line«
Removing

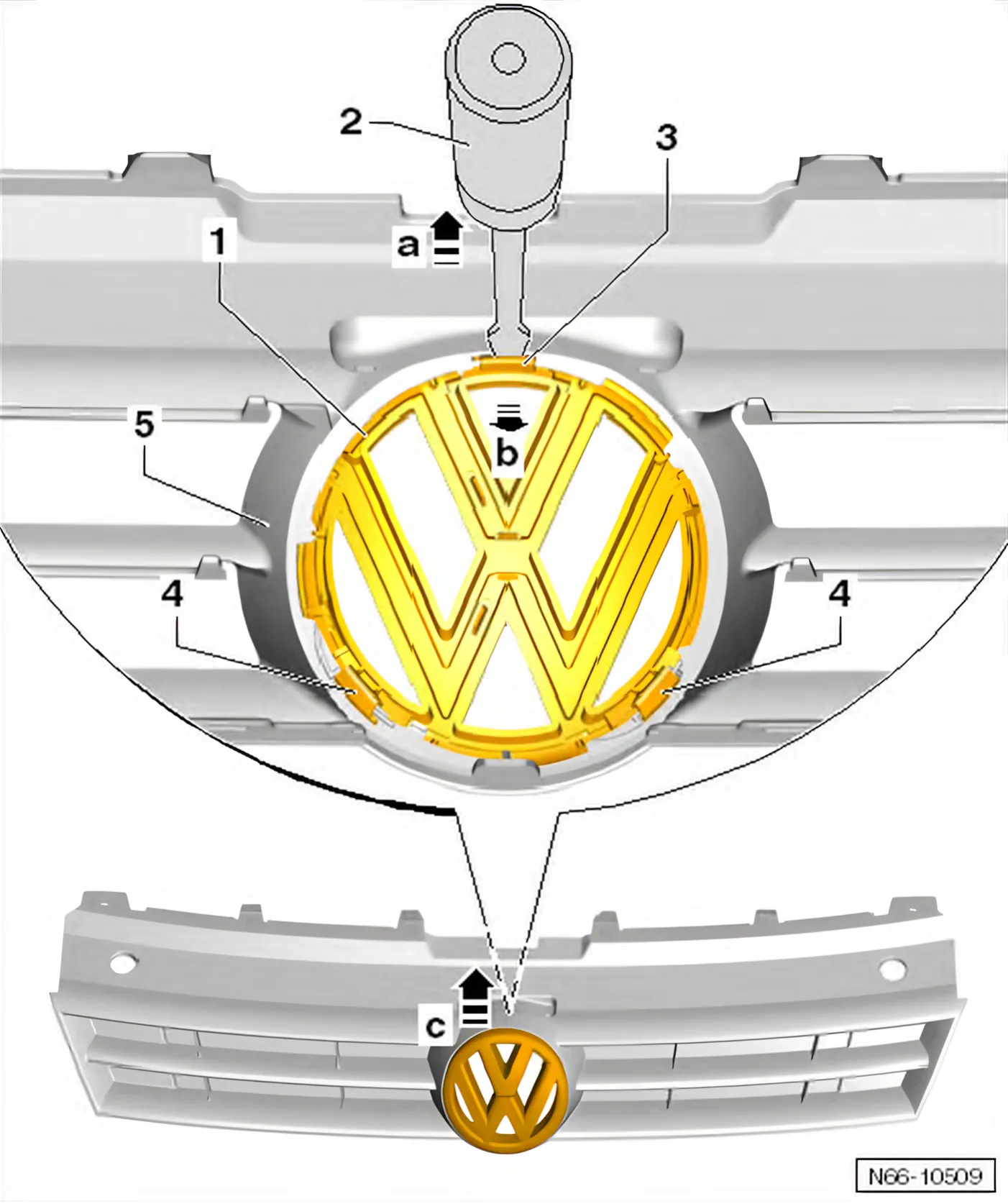

- Press trim -1- out of upper bracket -arrow a- with a screwdriver -3-.
- Pull trim -1- upwards at an angle -arrow b- out of lower bracket.
- Press upper locking hook -3- together with a screwdriver -2- -arrow a- and prise out of radiator grille -5- -arrow b-.
- Pull emblem -1- with both lower locking hooks -4- upwards at an angle -arrow c- out of radiator grille -1-.
Installing

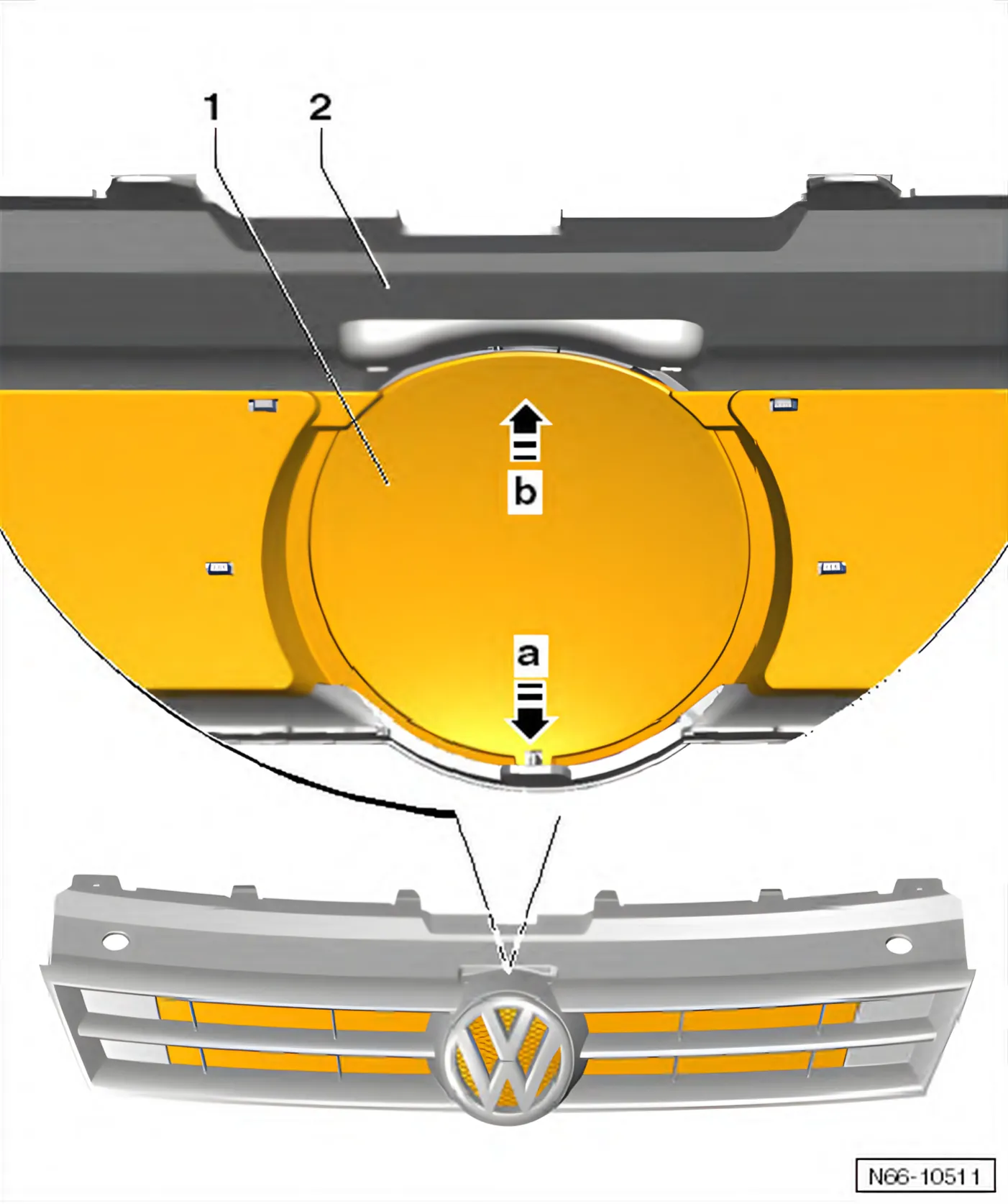

- Insert emblem -1- with locking hooks -2- into recesses in radiator grille -3- -arrow a-.
- Turn emblem in -direction of arrow b- until locking hooks -2- engage.
- Insert trim -1- downwards at an angle -arrow a- into lower bracket in radiator grille -2-.
- Press trim -1- into upper bracket -arrow b-.
9.4.2 Removing and installing emblems at vehicle front, Polo BlueMotion
Removing

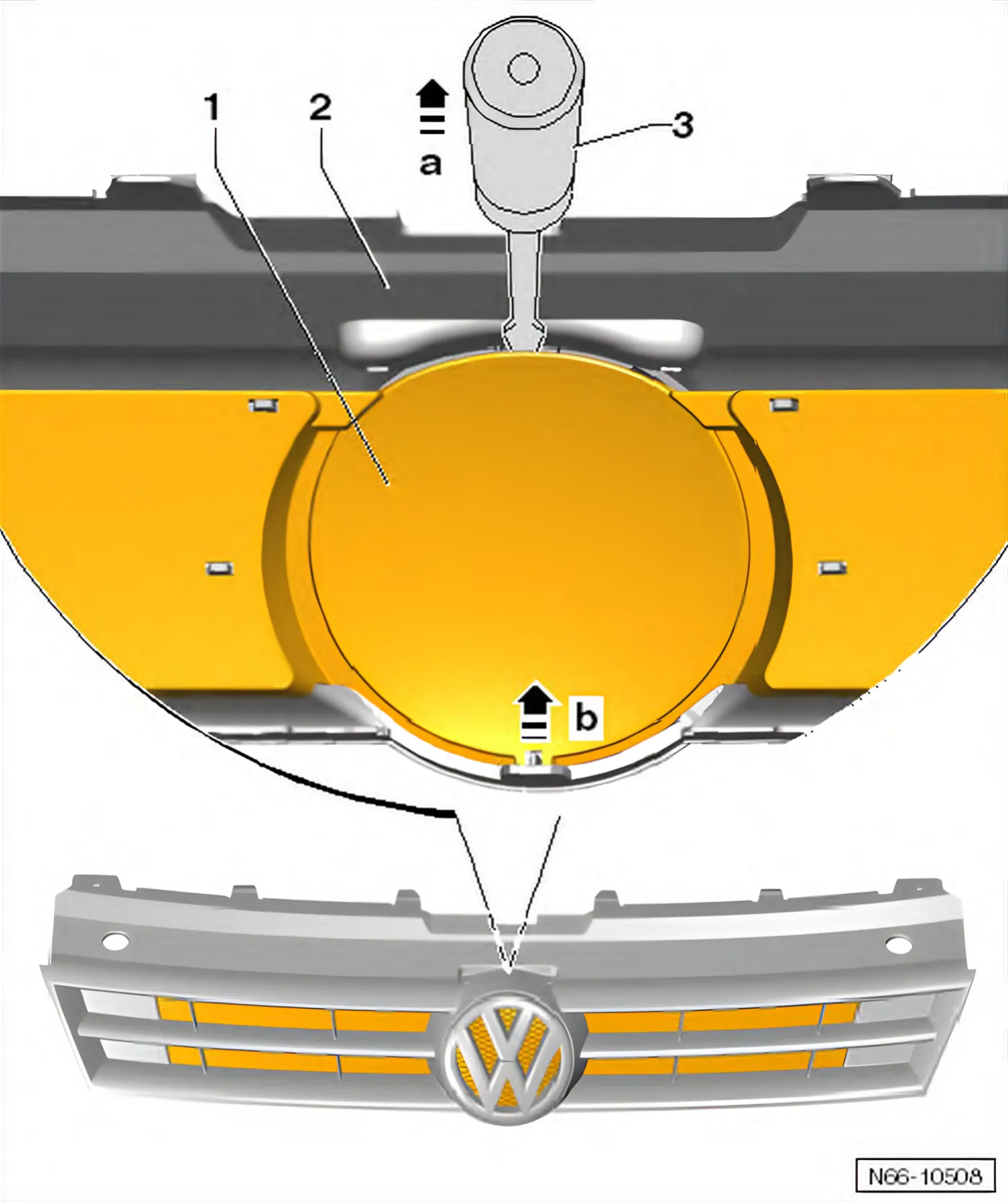

- Insert a screwdriver -3- between radiator grille -2- and emblem grille -1-.
- Push screwdriver in direction of arrow -a- and pull top of emblem grille -1- out of radiator grille -2-.
- Pull emblem grille -1- upwards at an angle in direction of arrow -b- and out of radiator grille -2-.
- Press upper locking hook -3- together in direction of arrow -a- using a screwdriver -2- and push emblem out of radiator grille -5- in direction of arrow -b-.
- Turn emblem -1- anticlockwise in direction of arrow -c- until both lower locking hooks -4- are released.
- Pull emblem -1- upwards at an angle in direction of arrow -dand out of radiator grille.
Installing

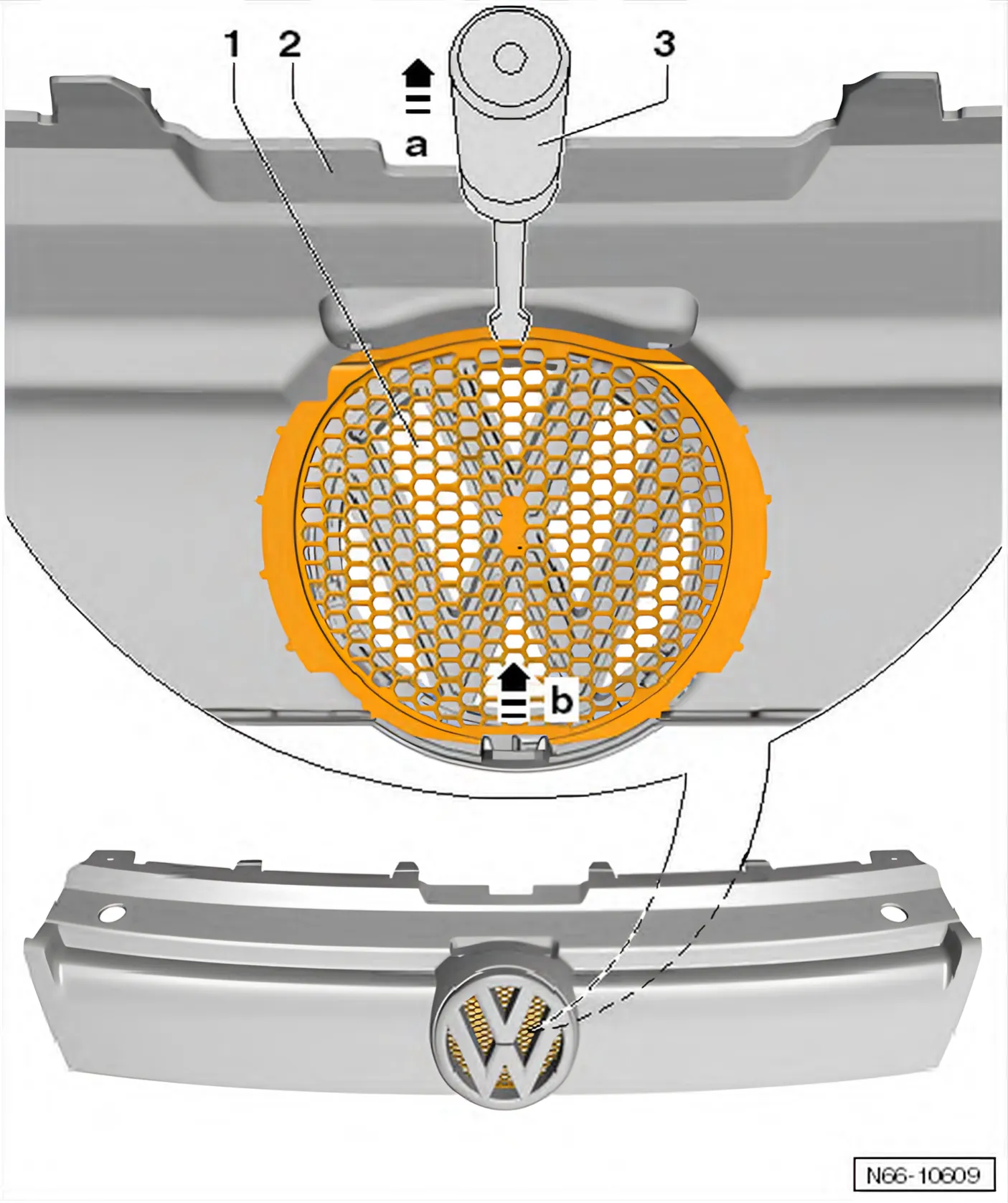

- Insert emblem -1- with locking hooks -2- into recesses in radiator grille -3- -arrow a-.
- Turn emblem in direction of arrow -b- until locking hooks -2- engage.

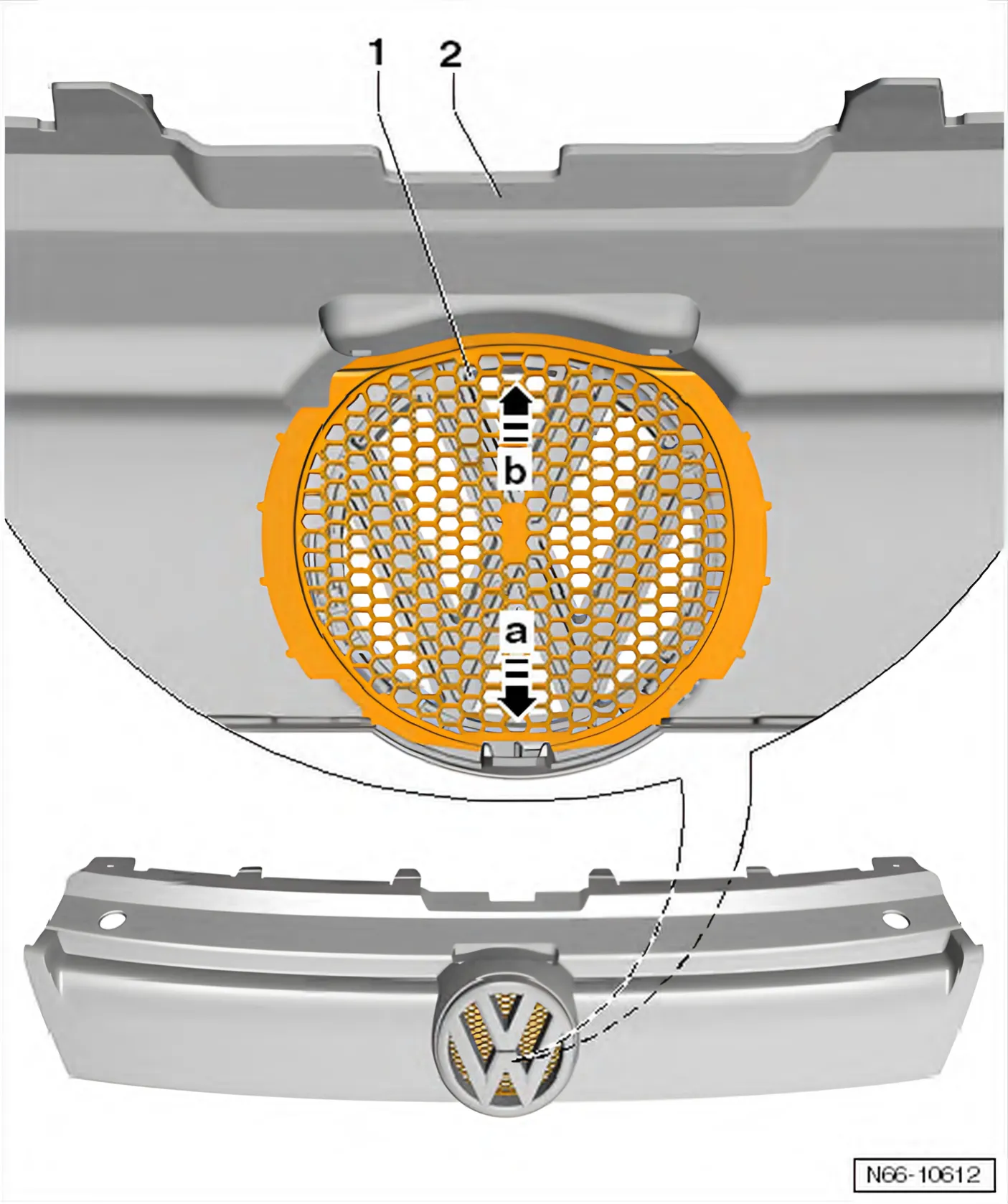

- Insert emblem grille -1- downwards at an angle in direction of arrow -a- into lower bracket in radiator grille -2-.
- Press emblem grille -1- into upper fasteners in direction of arrow -b- until it engages.
9.4.3 Removing and installing front emblems, Polo BlueGT
Removing
- Remove radiator grille ⇒ 1.2 Removing and installing radiator grille.

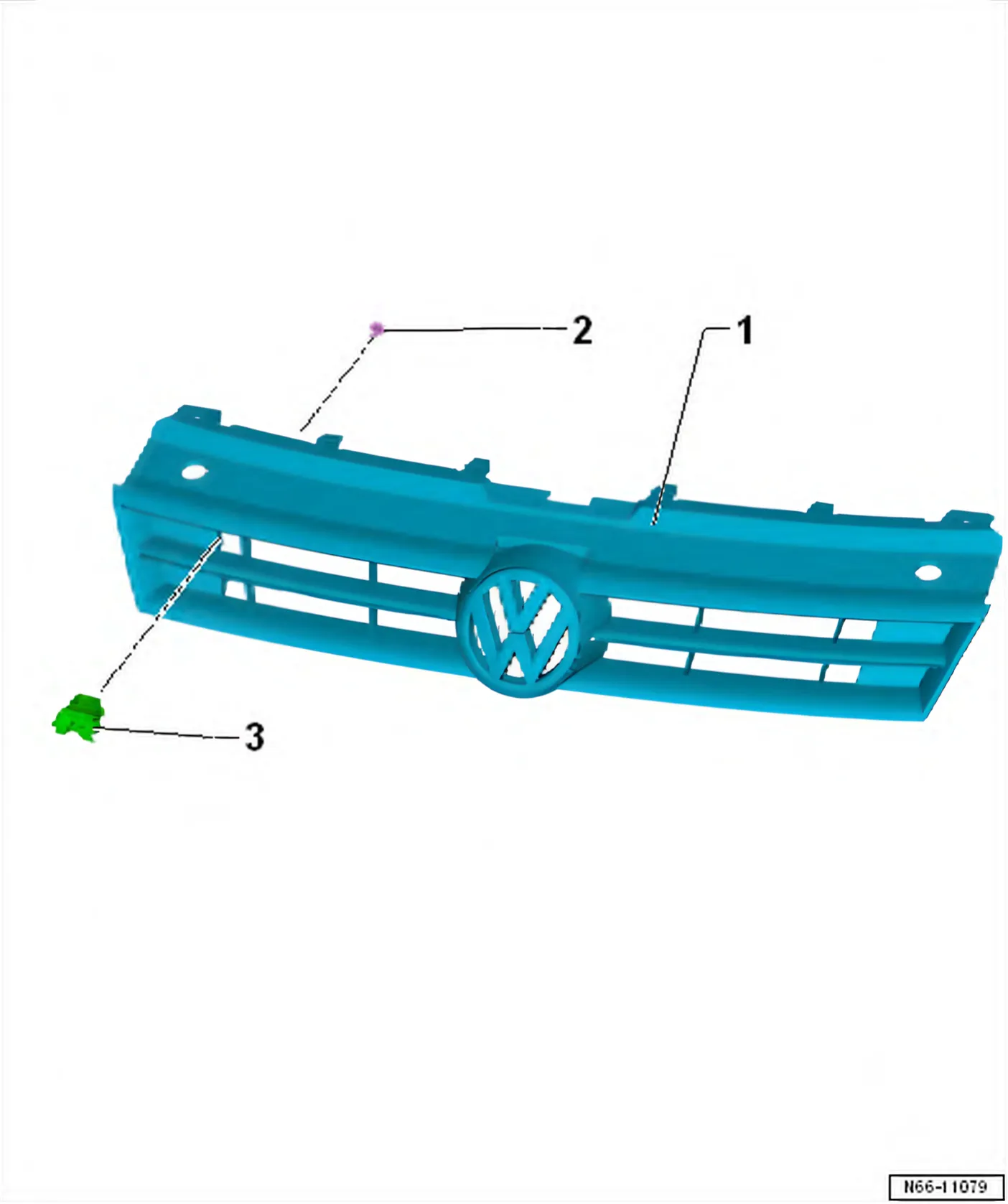

- Remove screw -2- and remove emblem -3- from radiator grille -1-.
Installing
Install in the reverse order of removal observing the following:
Specified torques
| Component | Specified torques |
| Badge | 2.0 Nm |
9.4.4 Removing and installing emblems at vehicle front, Polo “R-Line”
Removing
- Remove radiator grille ⇒ 1.2 Removing and installing radiator grille.

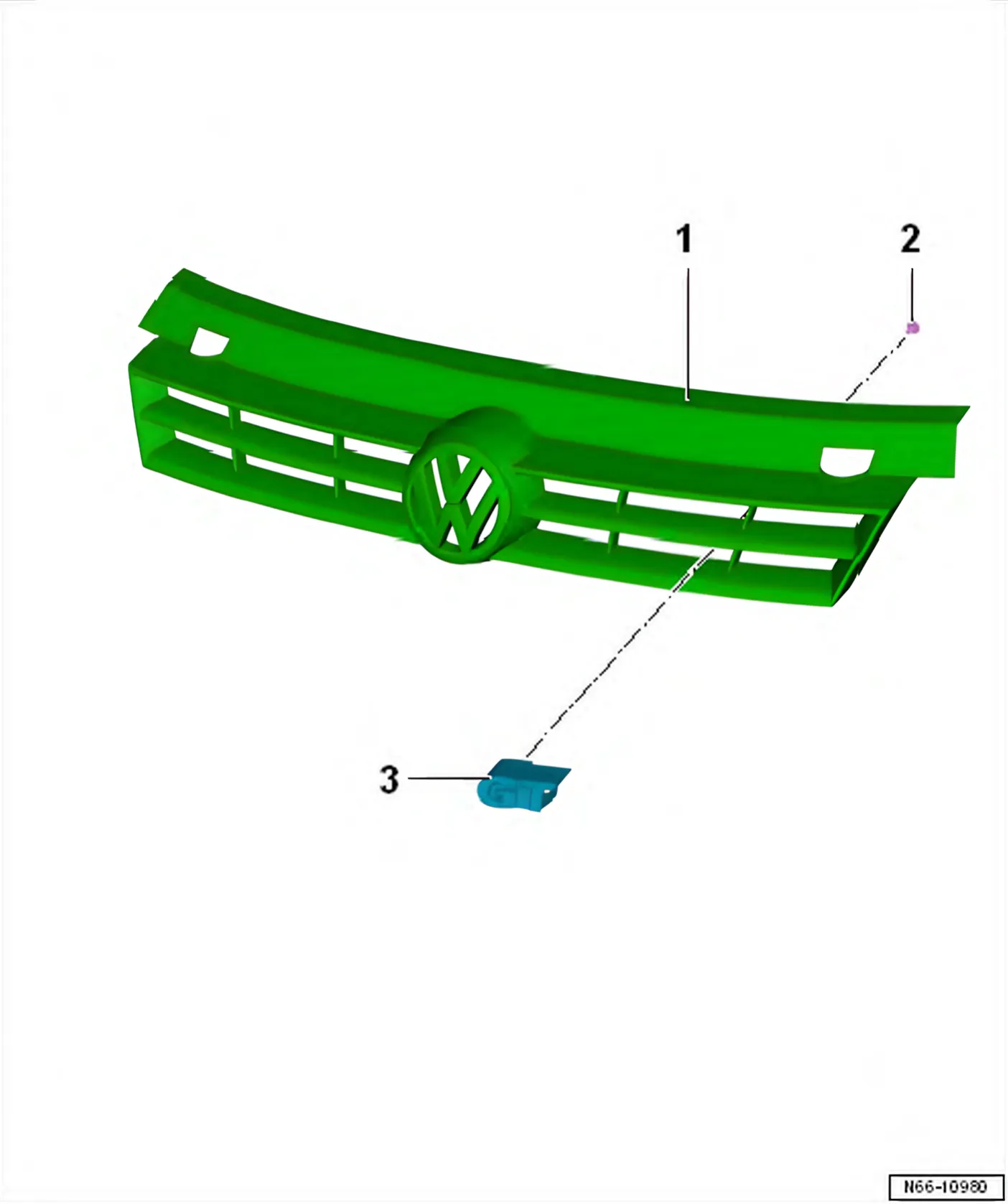

- Remove screw -2- and remove emblem -3- from radiator grille -1-.
Installing
Install in the reverse order of removal observing the following:
Specified torques
