Partition grille 6R0017221
Installation instructions for the partition grille between the luggage compartment and the passenger compartment of the Volkswagen Polo from 2009.
Installation
- Part number:
- 6R0 017 221
- Vehicle:
- Polo 2009– (6R)
1 General
This booklet contains important information and warnings on using your vehicle. Refer to your Owner's Manual for further information concerning your safety and the safety of your passengers.
Volkswagen Accessories are continually working on the further development of all products. Please appreciate that we must therefore reserve the right to alter any part of the vehicle and its equipment or technical specifications at any time. The details concerning scope of delivery, design and function of the product refer to the information available at the time of publication. No legal commitment can be derived from the information, illustrations or descriptions in this manual.
2 Scope of delivery
| Parts list | ||
|---|---|---|
| Item | Description | Qty. |
| 1 | Partition grille | 1 |
| 2 | Right support strut | 1 |
| 3 | Right retaining brace | 1 |
| 4 | M8 star head bolt | 10 |
| 5 | Left retaining brace | 1 |
| 6 | Left support strut | 1 |
| 7 | Rubber fittings | 2 |
| 8 | Lashing eye | 2 |
3 Installing partition grille 6R0 017 221

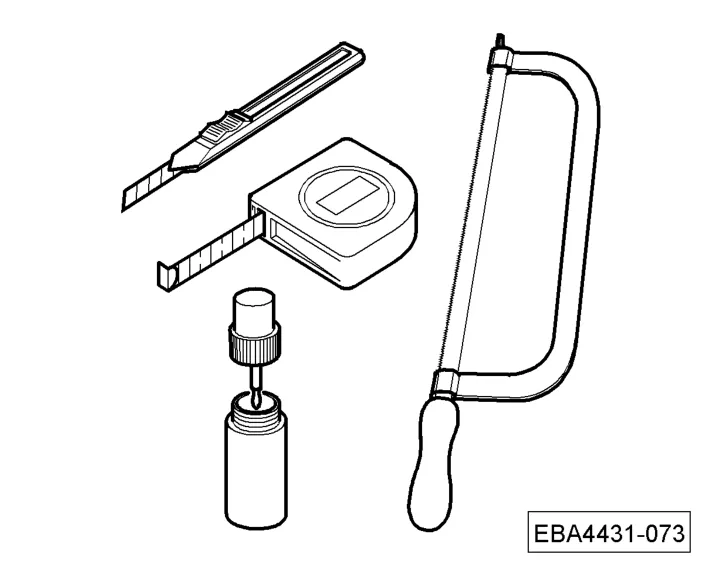

Required special tools, testers, measuring instruments and auxiliary items
- Cutting blade
- Tape measure
- Saw
- Paint stick
- Abrasive cloth/paper
- Remove luggage compartment cover.
- Remove variable height load flooring, if fitted.

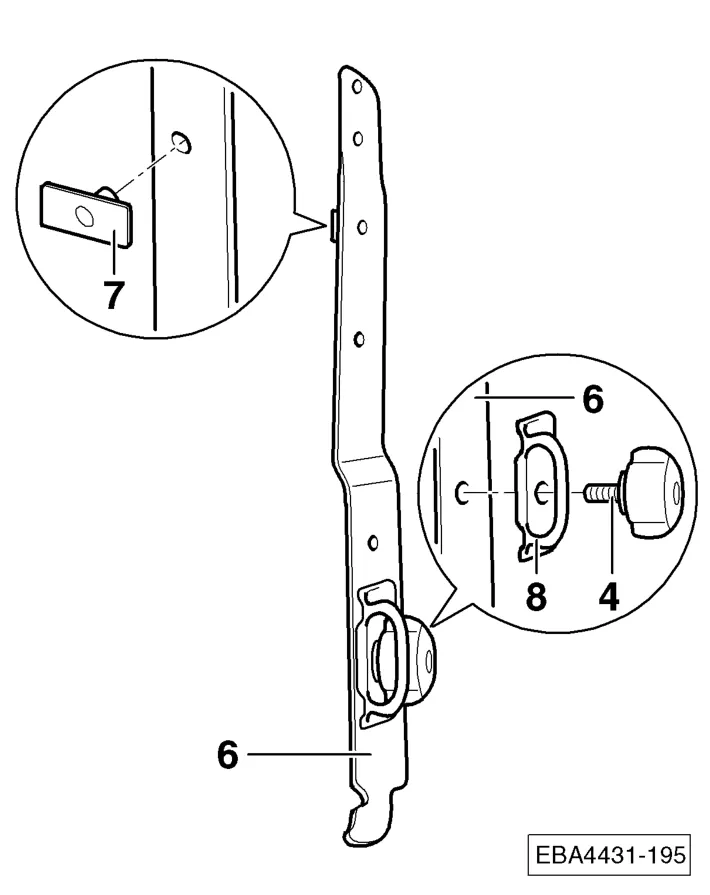

- Press rubber fitting -7- into hole of left support -6-.
- Screw the lashing eye -8- tightly to the left support strut -6- using star head bolt -4-.
- Position partition grille -1- in installation position.

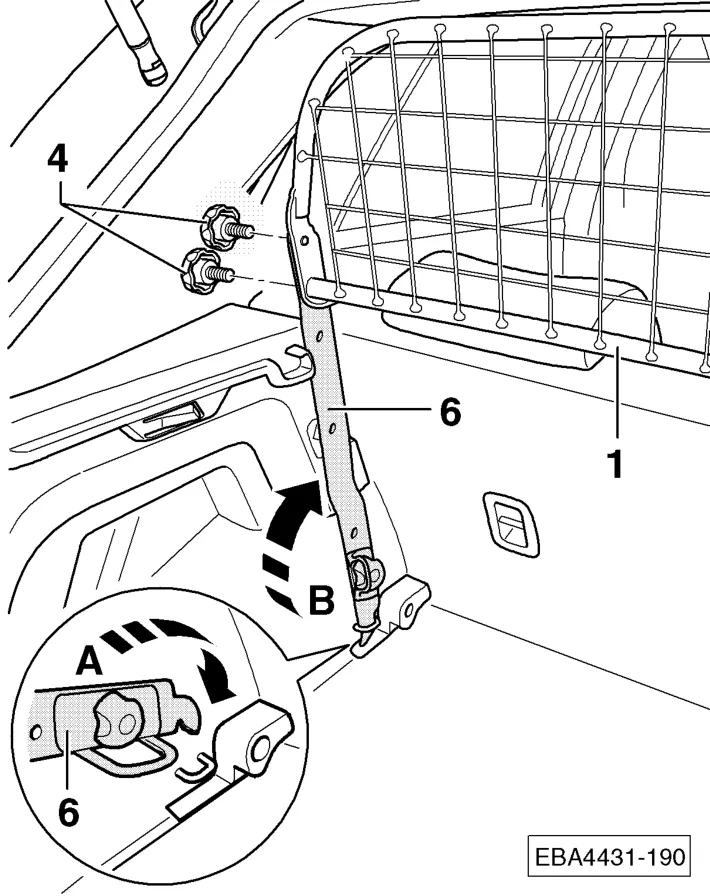

- Insert the left support strut -6- into the left lashing eye -arrow A- and swing it forwards -arrow B-
- Screw the left support strut -6- to the partition grille -1- using two star head bolts -4-.

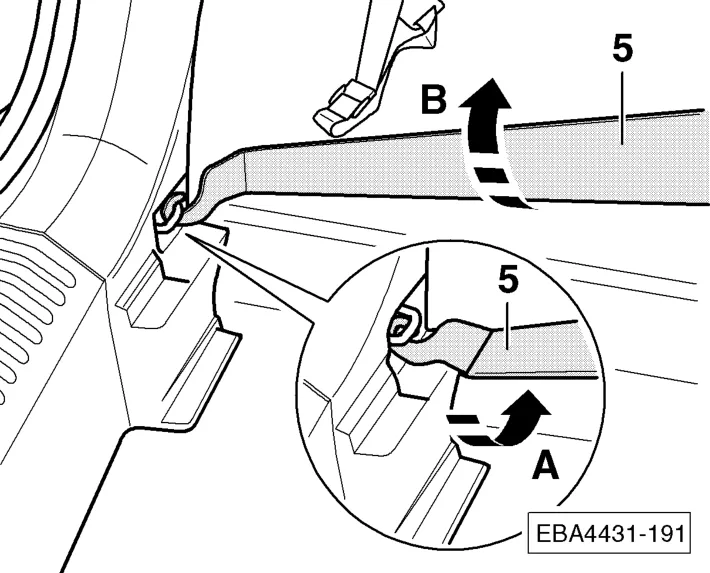

- Insert the left retaining brace -5- into the rear left lashing eye from below and turn the left retaining brace -5- in direction of -arrow A-.
- Hook the left retaining brace -5- into the left lashing eye -arrow B-.
- Secure the left retaining brace -5- to the left support strut -6- using two star head bolts -4-. Tighten the two star head bolts -4- only lightly.
- Simultaneously push the left support strut -6- to the rear -arrow A- and pull the left retaining brace -5- forwards -arrow B- until they sit in the mountings with no play.
- Tighten the two star head bolts -4-.
- Install variable load compartment flooring, if fitted.
- Install luggage compartment cover.
Proceed as follows if the luggage compartment cover sticks in area of partition grille support struts:
- Saw off the area, as marked, on the front part of the luggage compartment cover.
- Smooth off/straighten the cut section using a sharp knife.
- Seal the edges of the cut using a paint stick.
