Spoiler – assembly overview and fastening

⇒ 2.1.1 Assembly overview - spoiler, Polo BlueMotion

⇒ 2.1.2 Assembly overview – spoiler, Polo GTI

⇒ 2.1.3 Assembly overview - spoiler, Polo Blue GT

⇒ 2.1.4 Assembly overview - spoiler, Polo R-Line

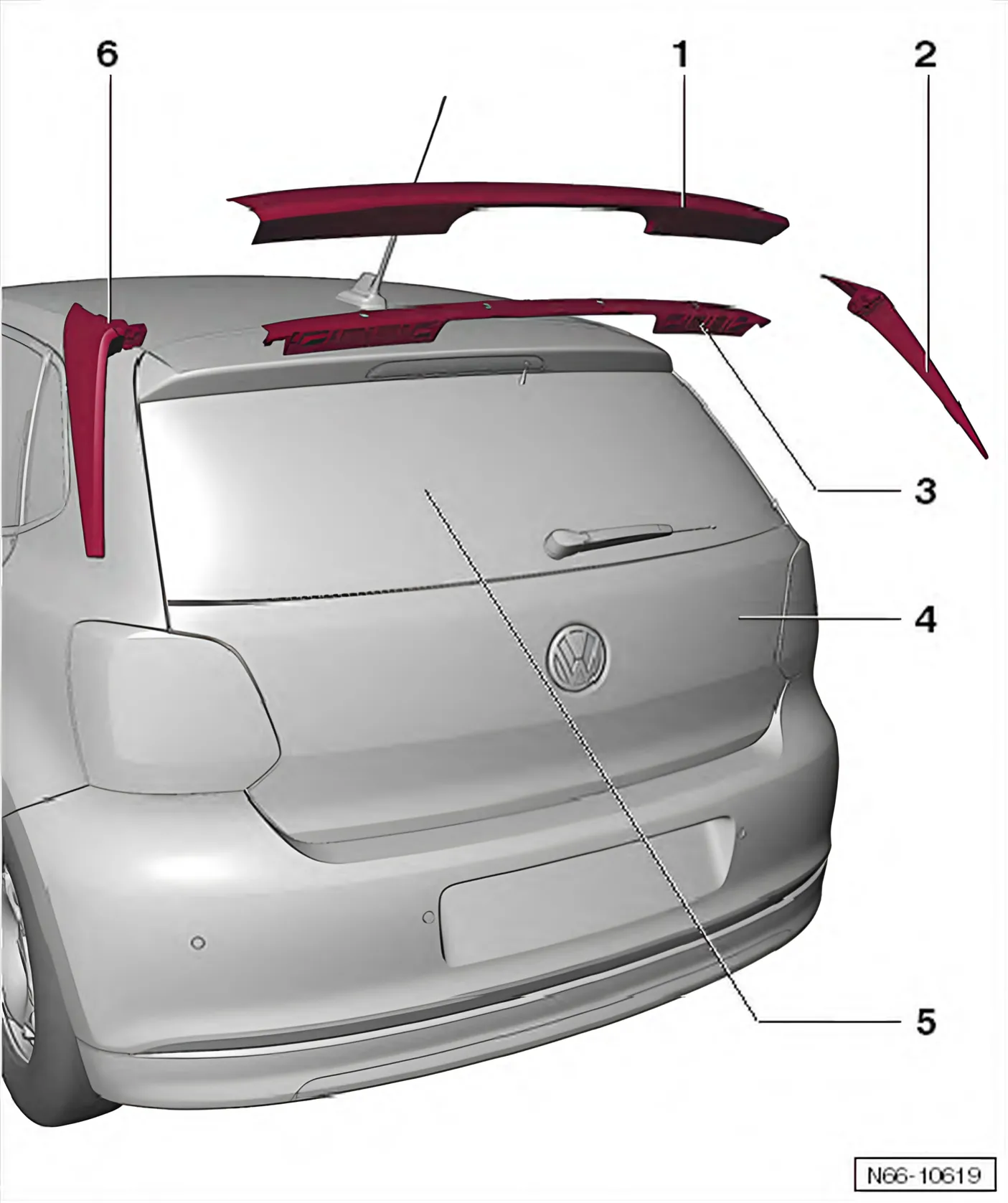

2.1.1 Assembly overview - spoiler, Polo »BlueMotion«

• 1 Roof spoiler - middle piece
  • Material: PUR-MF23.
  • Removing and installing ⇒ 2.2.1 Removing and installing spoiler, Polo »BlueMotion«
• 2 Roof spoiler - right side piece
  • Material: PUR-MF23.
  • Removing and installing ⇒ 2.4.1 Removing and installing side piece of spoiler, Polo »BlueMotion«
• 3 Adapter
  • Material: PC + PET- MD20.
  • For middle piece of roof spoiler.
  • Must always be replaced.
  • Removing and installing ⇒ 2.3.1 Removing adapter, Polo BlueMotion
• 4 Rear lid
• 5 Rear windscreen
• 6 Roof spoiler - left side piece
  • Material: PUR-MF23.
  • Removing and installing ⇒ 2.4.1 Removing and installing side piece of spoiler, Polo »BlueMotion«

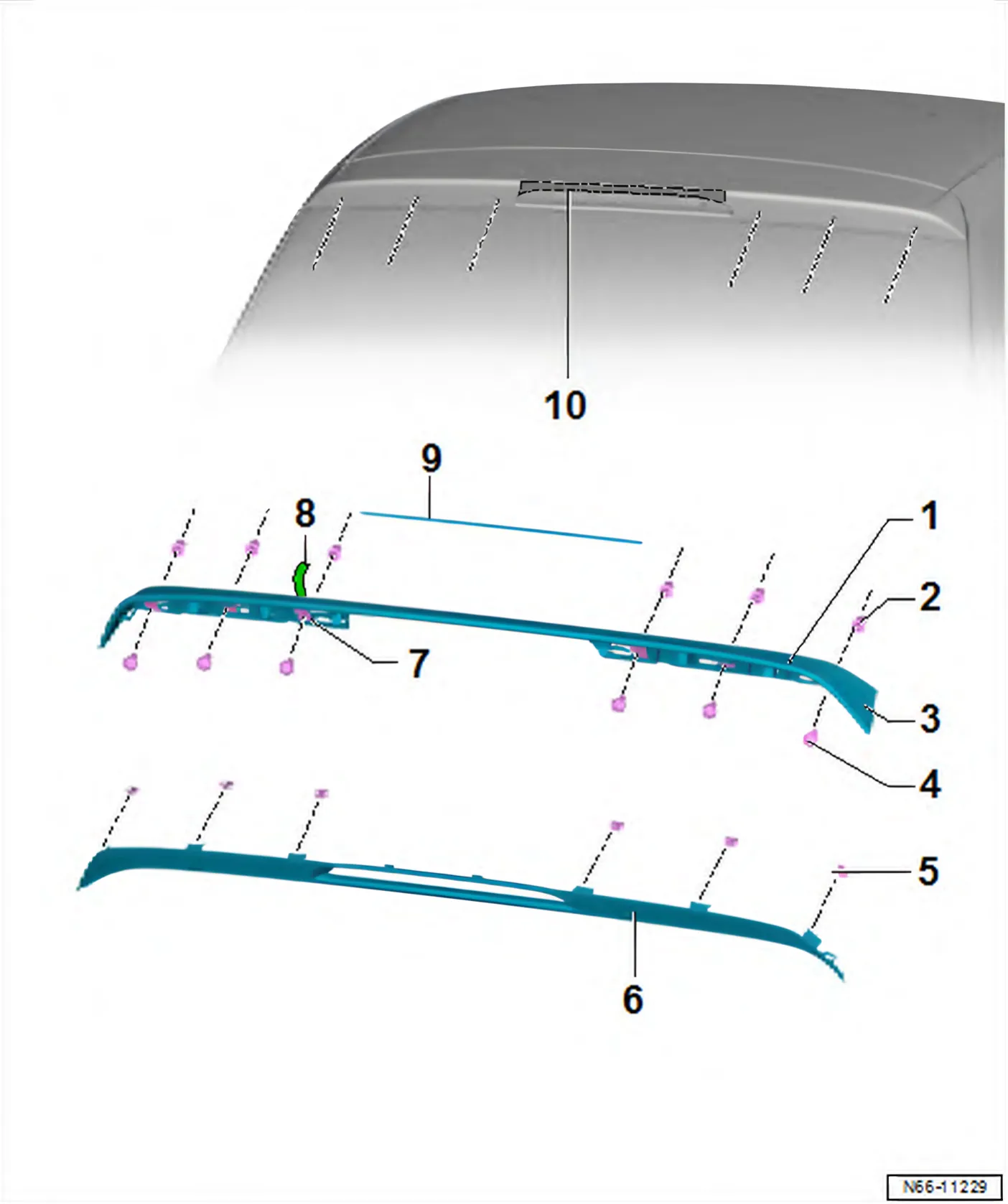

2.1.2 Assembly overview – spoiler, Polo »GTI«

• 1 Seal
  • Component of roof spoiler
• 2 Rivet nut
  • Qty. 6
• 3 Roof spoiler
  • Removing and installing ⇒ 2.2.2 Removing and installing spoiler, Polo »GTI«
• 4 Bolt
  • Qty. 6
  • 10 Nm
• 5 Clip
  • Qty. 6
• 6 Cover
• 7 Washer
  • Component of roof spoiler
• 8 Removal aid for adhesive tape
• 9 Adhesive tape

2.1.3 Assembly overview - spoiler, Polo »Blue GT«

• 1 Roof spoiler
  • Material: PUR-MF23.
  • Removing and installing ⇒ 2.2.3 Removing and installing spoiler, Polo »Blue GT«, Polo »R-Line«
• 2 Right side spoiler
  • Material: PUR-MF23.
  • Removing and installing ⇒ 2.4.2 Removing and installing side piece of spoiler, Polo »Blue GT«
• 3 Rear lid
• 4 Rear windscreen
• 5 Left side spoiler
  • Material: PUR-MF23.
  • Removing and installing ⇒ 2.4.2 Removing and installing side piece of spoiler, Polo »Blue GT«

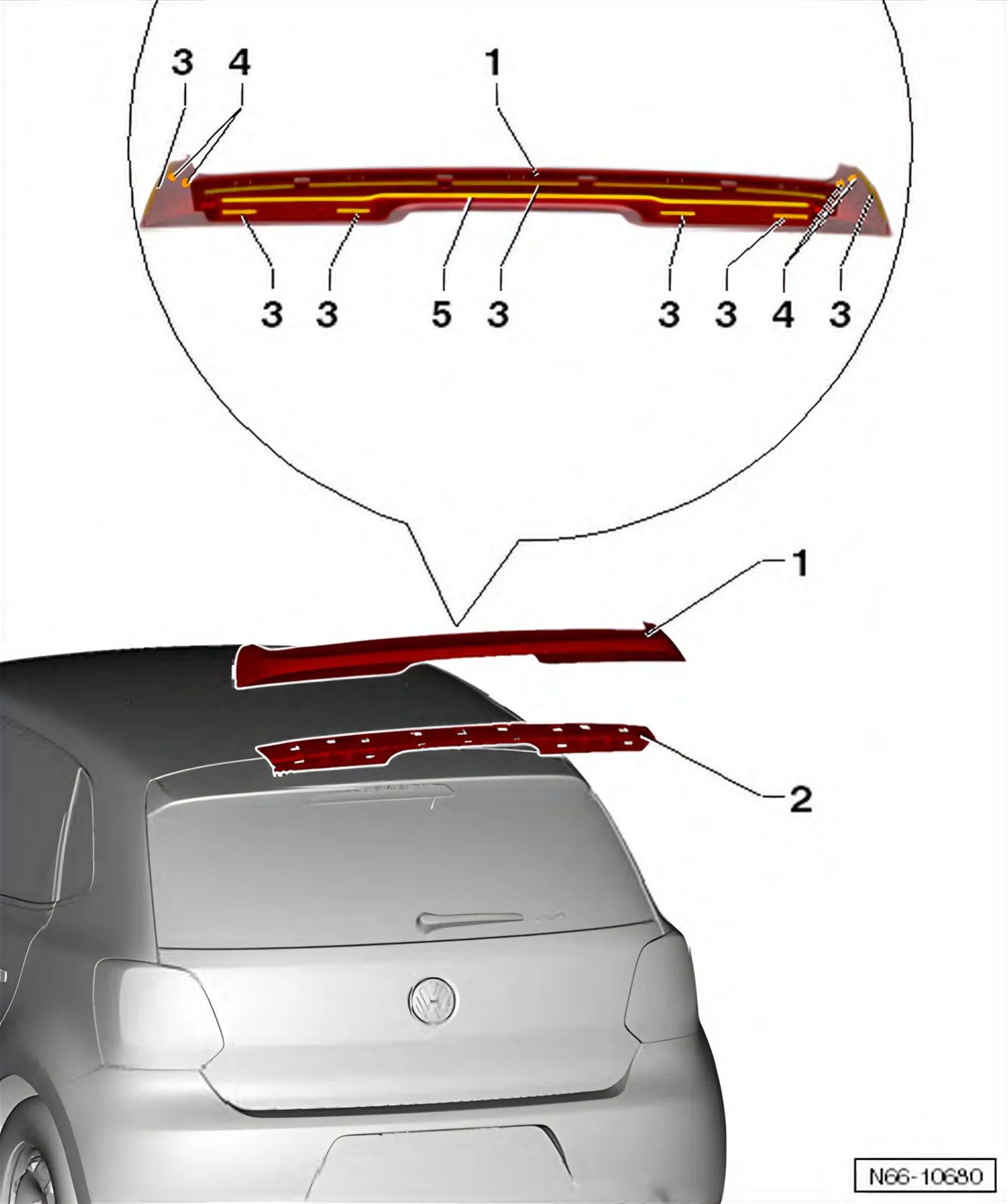

2.1.4 Assembly overview - spoiler, Polo »R-Line«

Volkswagen R GmbH, optional equipment, »R Line«

• 1 Roof spoiler
  • Material: PUR-MF23.
  • Removing and installing ⇒ 2.2.3 Removing and installing spoiler, Polo »Blue GT«, Polo »R-Line«
  • Notes on paint: ⇒ Paint workshop manual
• 2 Adapter
  • Material: PC + PET- MD20.
  • Engaged in roof spoiler
  • Must always be replaced.
  • Removing and installing ⇒ 2.3.2 Removing adapter, Polo »GTI«
• 3 Double-sided adhesive tape
• 4 Adhesive points
  • Qty. 2 on each side
  • 1-pack window adhesive (⇒ Electronic Parts Catalogue “ETKA” )
• 5 Adhesive bead
  • 1-pack window adhesive (⇒ Electronic Parts Catalogue “ETKA” )
  • On full length: width = 7 mm, height = approx. 7 mm
