Front mud flaps 6R0075111

Step-by-step fitting of the front mud flaps on the Volkswagen Polo from 2009.

Fitting

Part number:
6R0 075 111
Vehicle:
Polo 2009– (6R)

Scope of delivery

Front mud flaps (left and right) with fixings
Front mud flaps (left and right) with fixings

Fitting

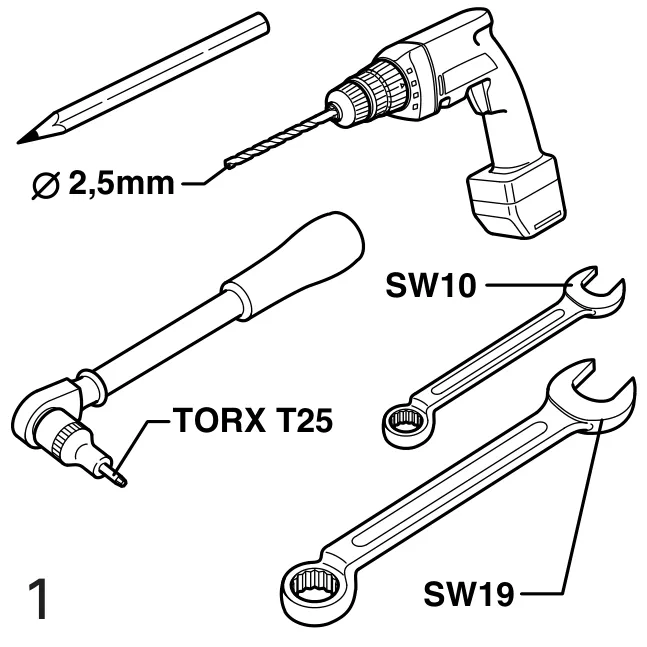

1. Tools: pencil, drill with a Ø 2,5 mm bit, Torx T25 key, 10 mm and 19 mm open-end spanners.
1. Tools: pencil, drill with a Ø 2,5 mm bit, Torx T25 key, 10 mm and 19 mm open-end spanners.

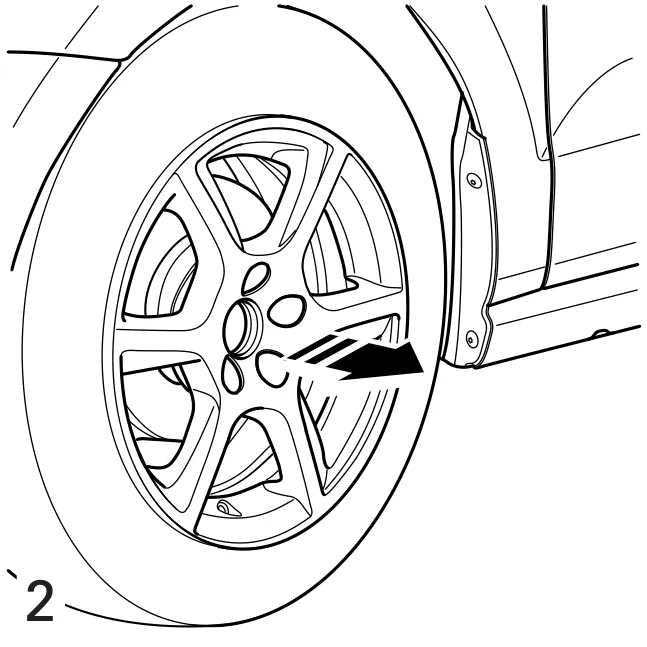

2. Remove the front wheel.
2. Remove the front wheel.

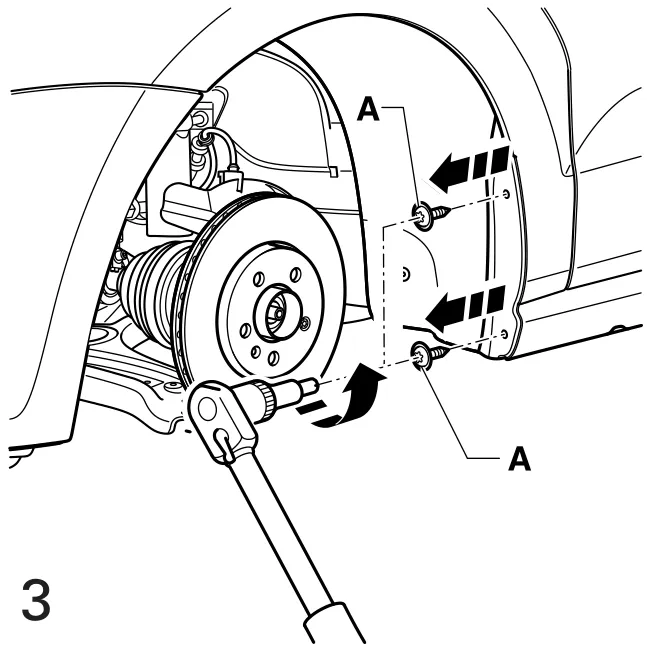

3. Unscrew the screws (A) from the wheel housing.
3. Unscrew the screws (A) from the wheel housing.

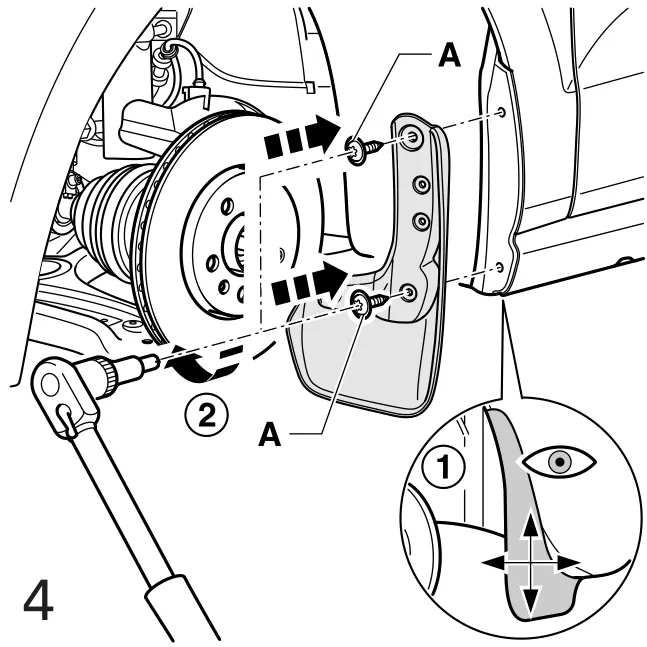

4. Hold the mud flap in place, align it (1) and screw it on with the screws (A) (2).
4. Hold the mud flap in place, align it (1) and screw it on with the screws (A) (2).

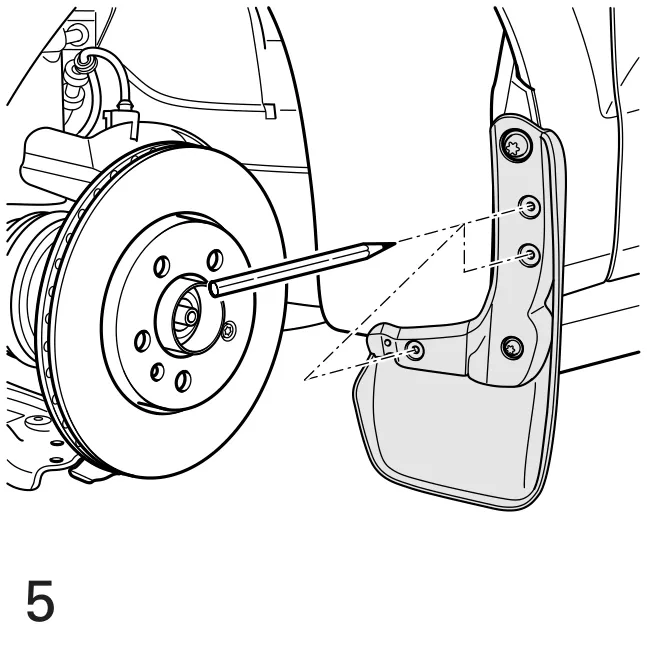

5. Mark the hole positions with a pencil through the holes in the mud flap.
5. Mark the hole positions with a pencil through the holes in the mud flap.

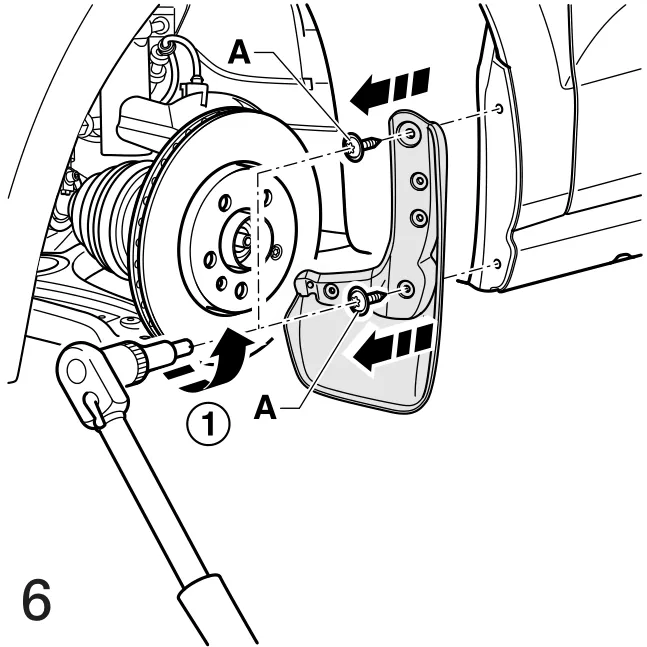

6. Unscrew the screws (A) and take the mud flap off.
6. Unscrew the screws (A) and take the mud flap off.

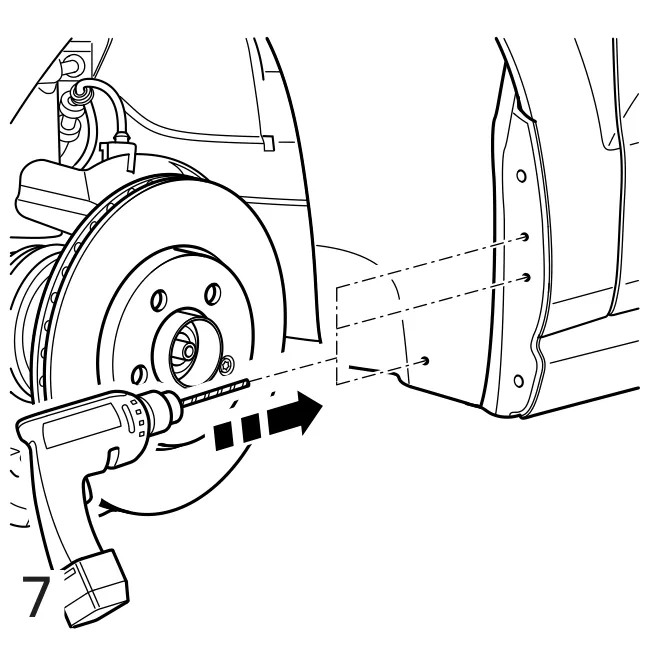

7. Drill the marked holes.
7. Drill the marked holes.

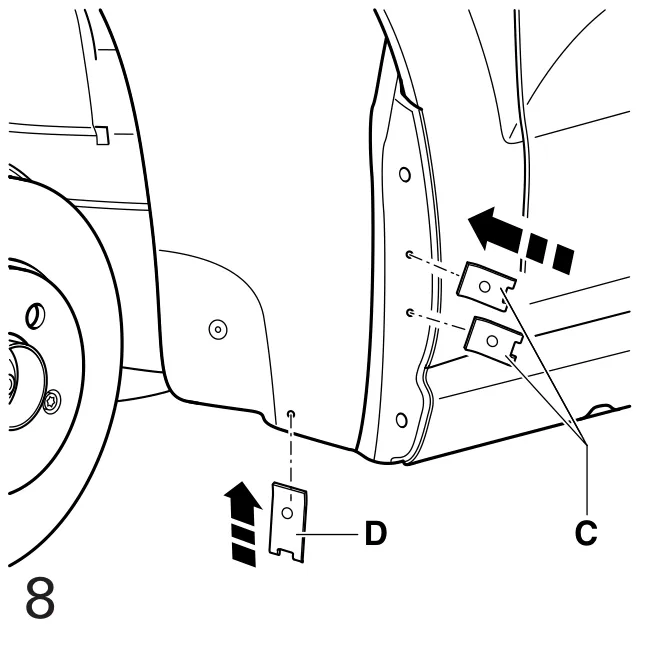

8. Push the clips (C) and (D) onto the holes.
8. Push the clips (C) and (D) onto the holes.

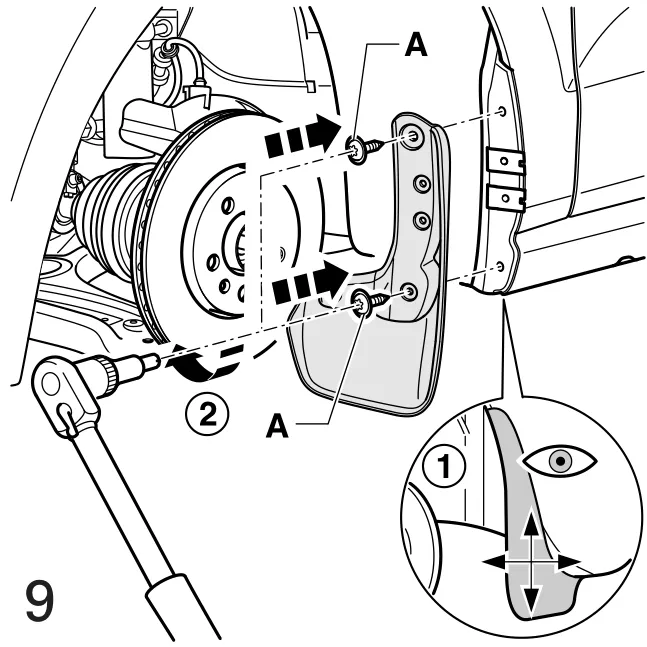

9. Hold the mud flap in place, align it (1) and screw it on with the screws (A) (2).
9. Hold the mud flap in place, align it (1) and screw it on with the screws (A) (2).

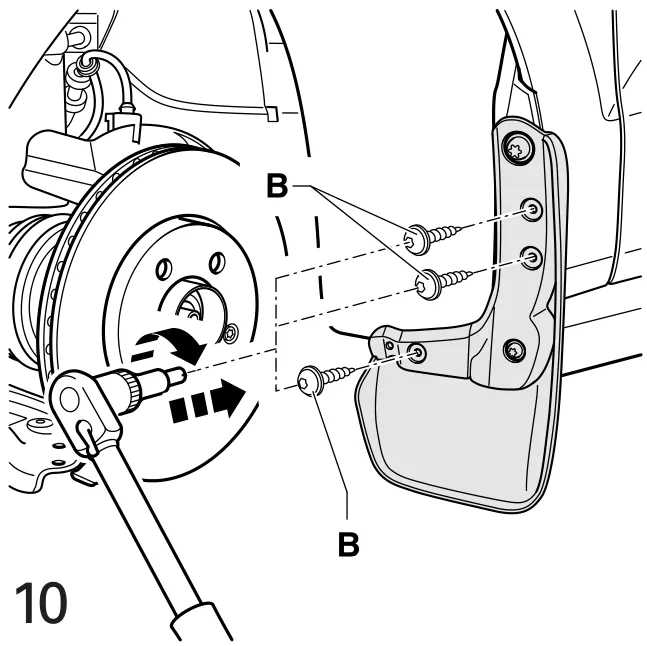

10. Screw the mud flap on with the screws (B).
10. Screw the mud flap on with the screws (B).
11. Drill the hole through the mud flap's lower tab.
11. Drill the hole through the mud flap's lower tab.

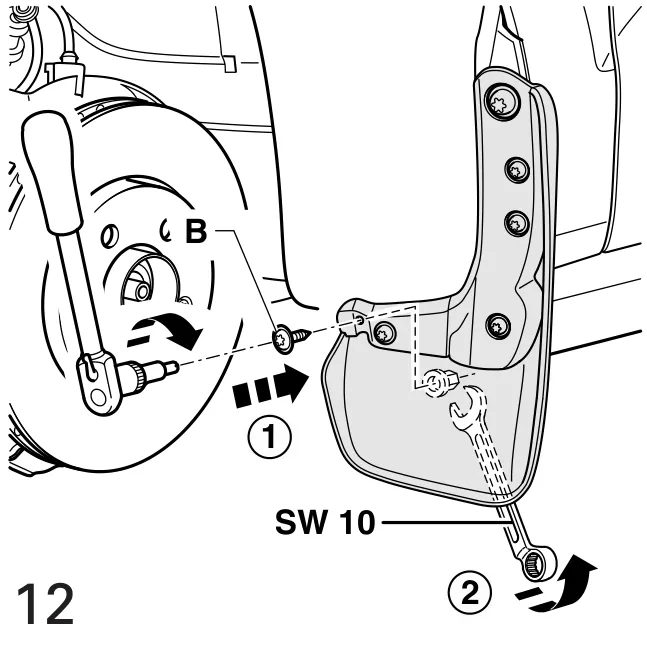

12. Fit the screw (B) (1) and tighten the nut with a 10 mm spanner (2).
12. Fit the screw (B) (1) and tighten the nut with a 10 mm spanner (2).

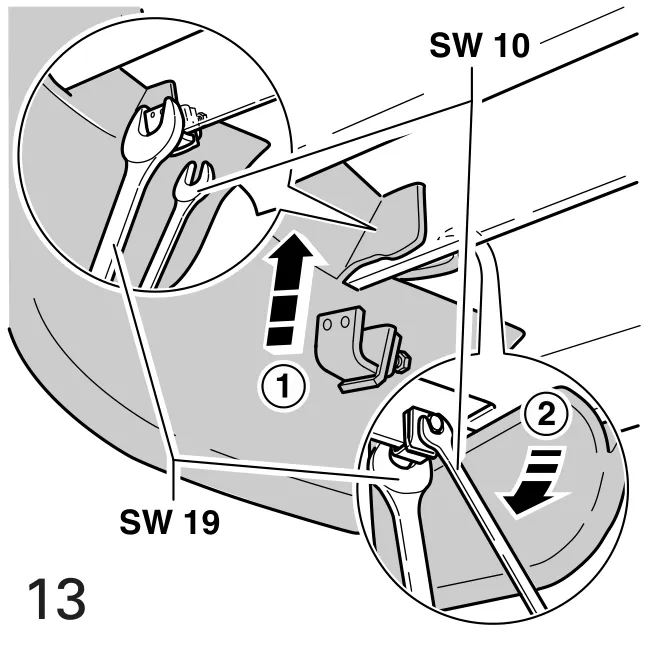

13. Fit the bracket (1) and tighten it with a 10 mm spanner, holding it with a 19 mm spanner (2).
13. Fit the bracket (1) and tighten it with a 10 mm spanner, holding it with a 19 mm spanner (2).

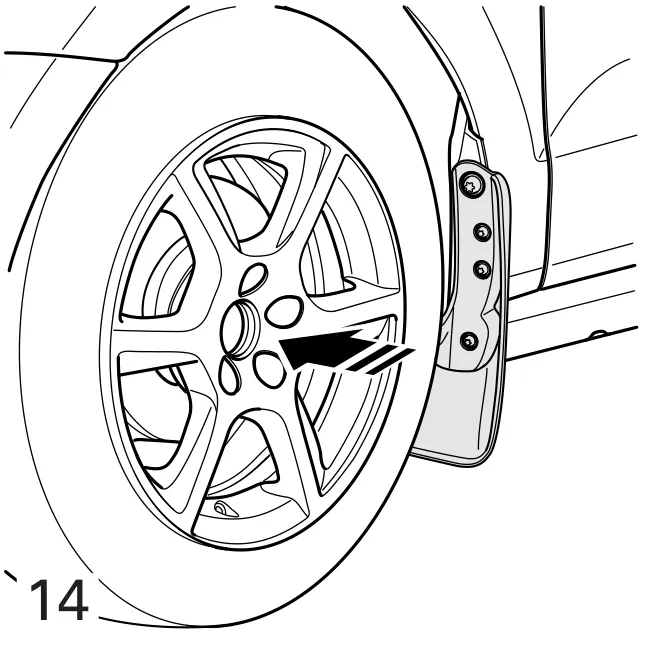

14. Refit the wheel.
14. Refit the wheel.
