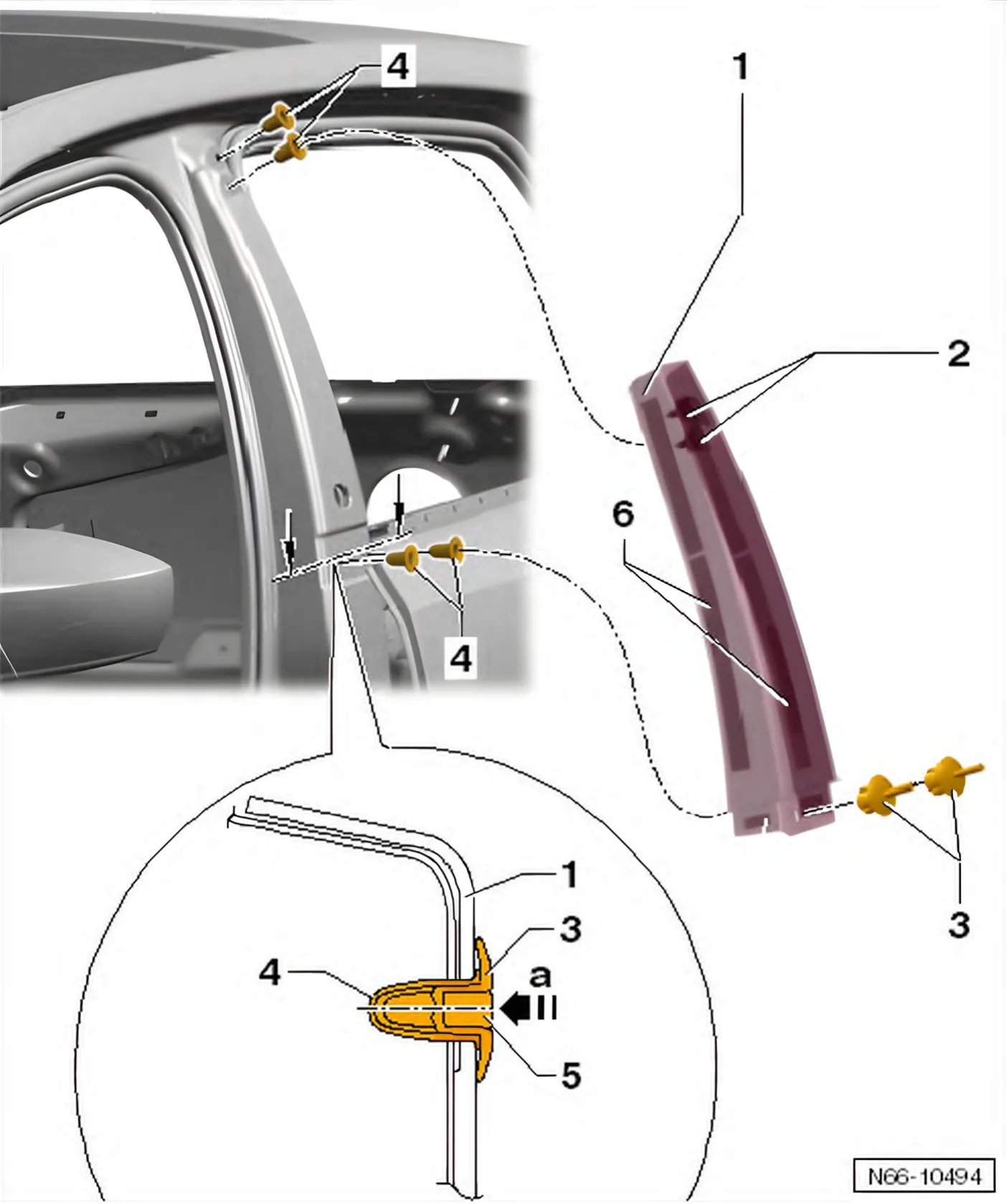

Removing and installing B-pillar trim

Removing

• Press spreader pins -5- slightly into clips -3- -arrow-.

Spreader pins remain in grommets -4-.

• Pull out clips -3-.
• Pull trim -1- with spreader pins -2- out of grommets.
• Take spreader pins -5- out of grommets.

Installing

Check grommets -4- for damage and renew if necessary.

• Place trim -1- against B-pillar.
• Press trim securing pins -2- into grommets.
• Insert clips -3- and press spreader pins -5- into clips -arrow a-.
