Noise insulation – assembly overview and fastening

⇒ 4.1.1 Assembly overview - noise insulation, diesel engines

⇒ 4.1.2 Assembly overview – noise insulation, long version

⇒ 4.1.3 Assembly overview - noise insulation, short version

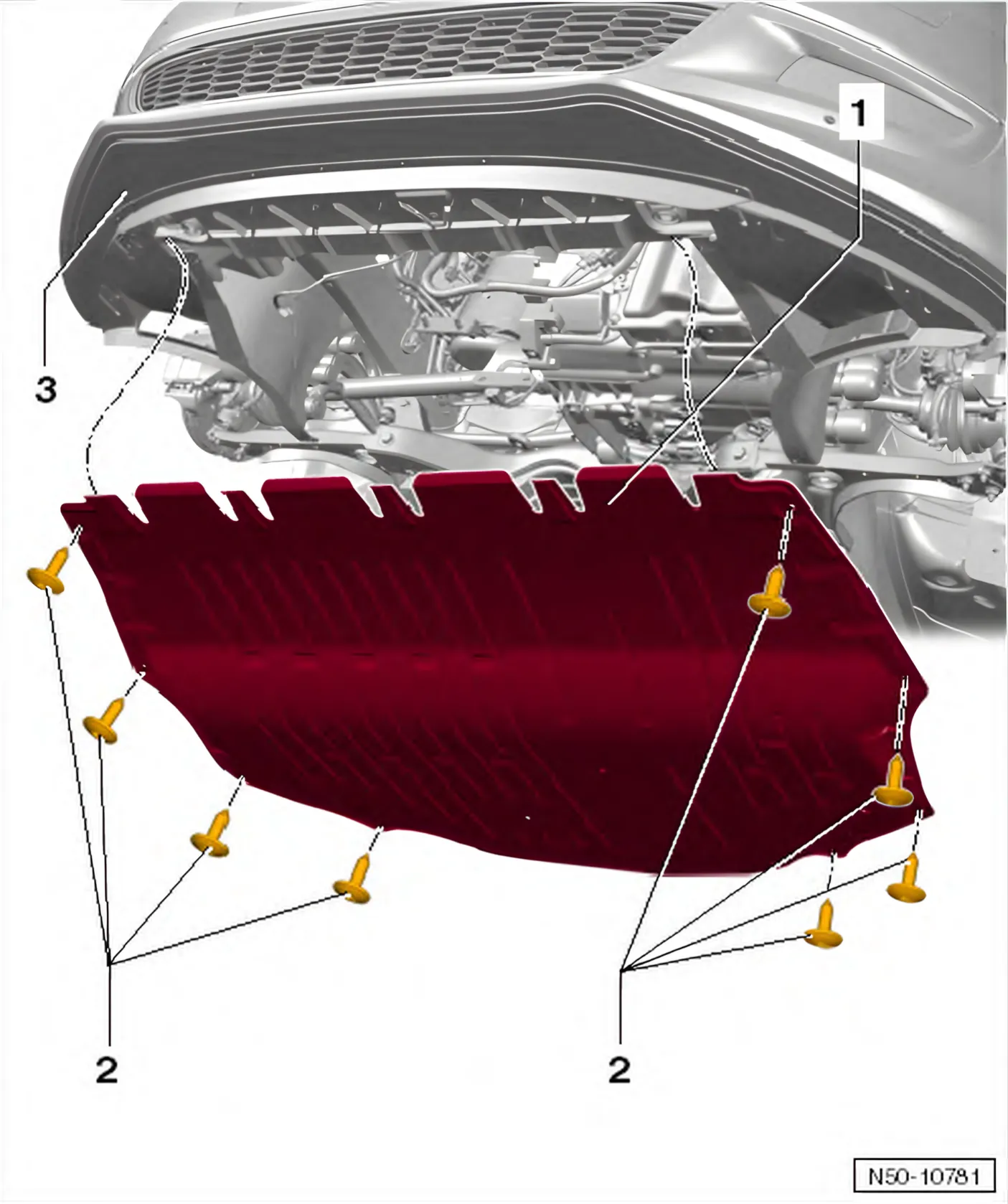

4.1.1 Assembly overview - noise insulation, diesel engines

• 1 Noise insulation
  • Removing:
  • Unscrew bolts -2-.
• 2 Bolt
  • Qty. 4 on each side
  • Specified torque: 2 Nm
• 3 Bumper cover

4.1.2 Assembly overview – noise insulation, long version

• 1 Noise insulation
  • Removing:
  • Unscrew bolts -2-.
• 2 Bolt
  • Qty. 9
  • Specified torque: 2 Nm
• 3 Bumper cover

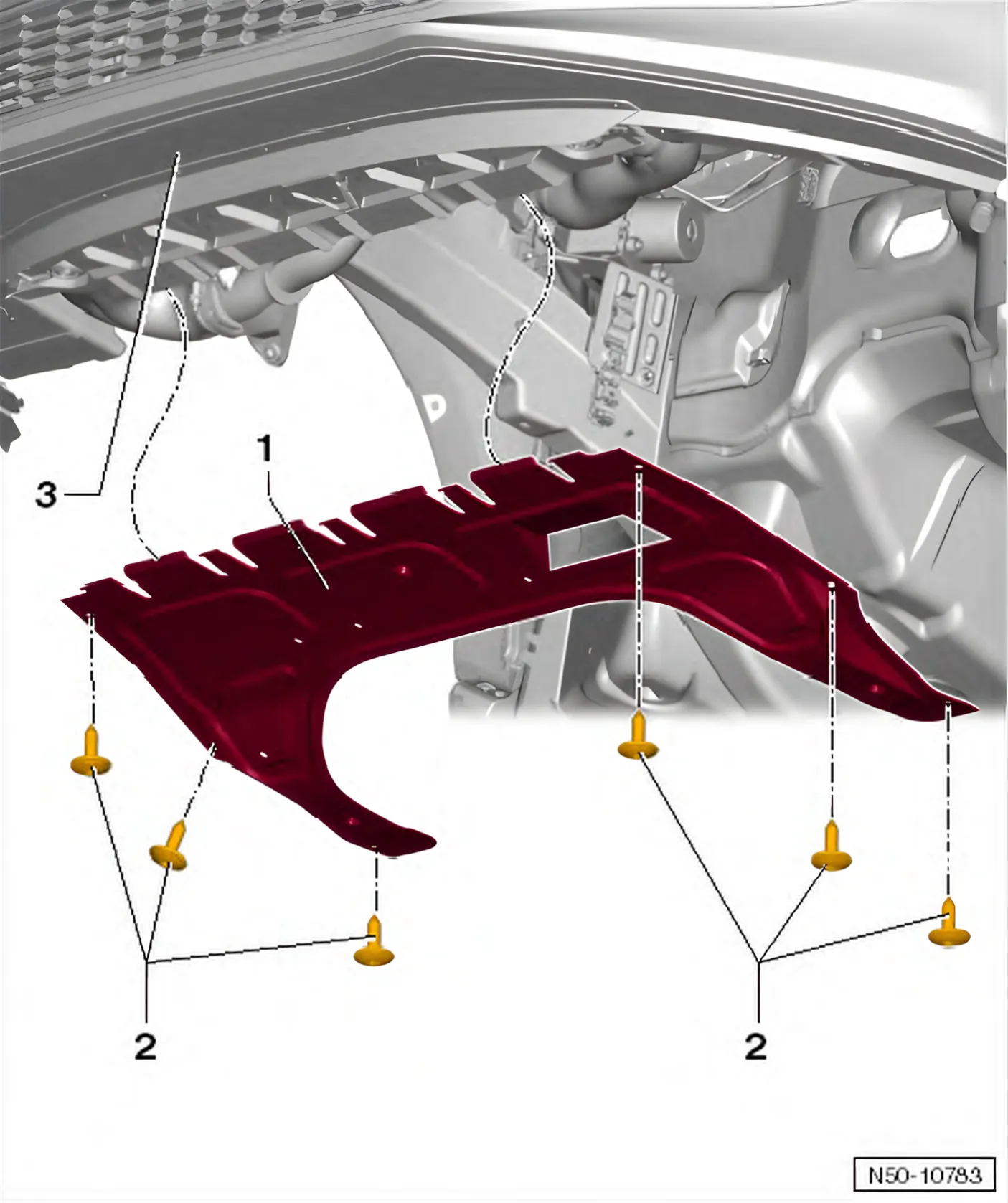

4.1.3 Assembly overview - noise insulation, short version

• 1 Noise insulation
  • Removing:
  • Unscrew bolts -2-.
• 2 Bolt
  • Qty. 3 on each side
  • Specified torque: 2 Nm
• 3 Bumper cover
