Body repairs – exterior · Exterior equipment · Towing bracket

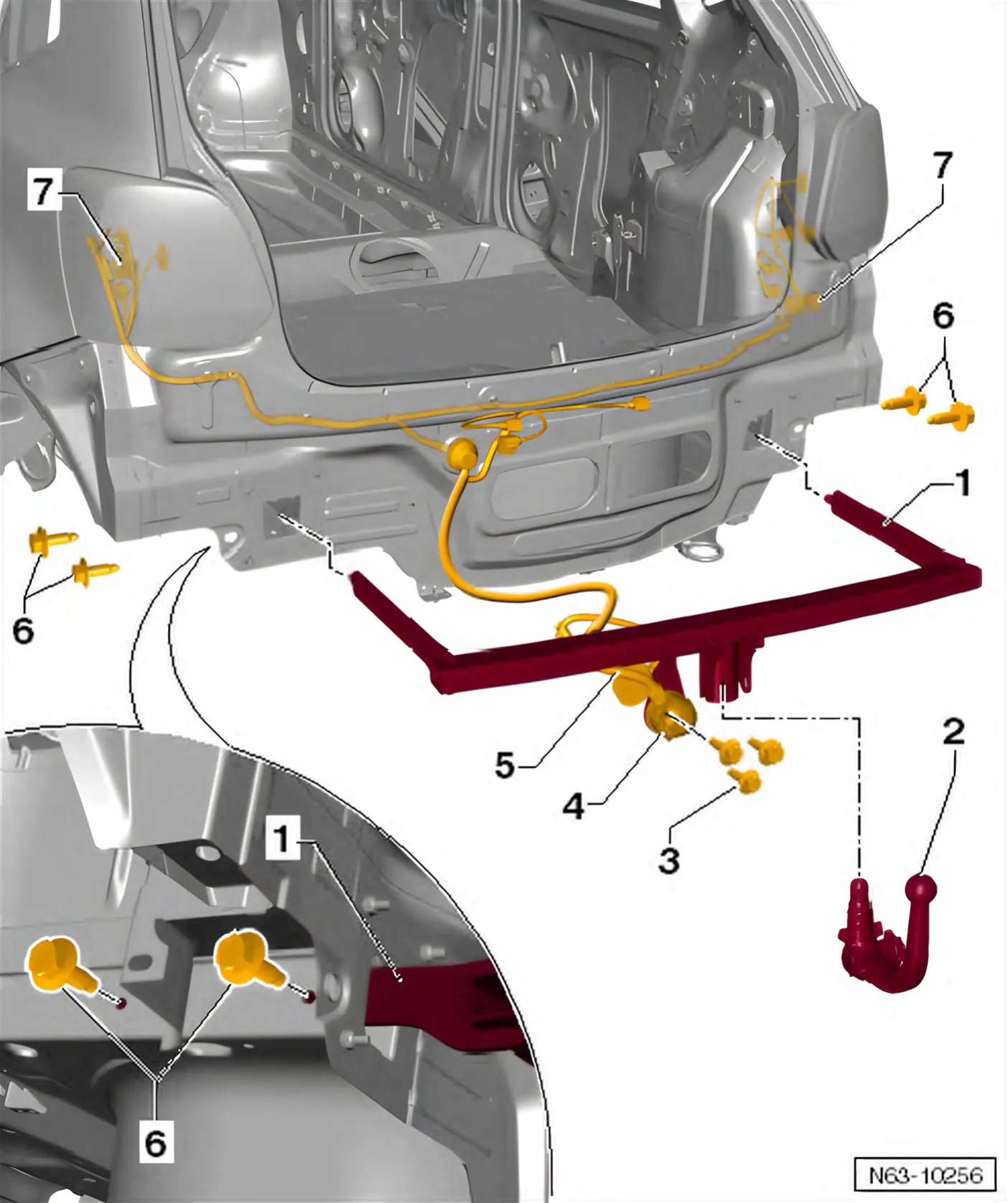

Towing bracket – assembly overview and fastening

  • 1 Towing bracket
    • Towing bracket with removable ball head.
  • 2 Ball head
    • The removable ball head is stored in the luggage compartment storage compartment.
  • 3 Bolt
    • Qty. 3
  • 4 Socket
  • 5 Wiring harness
  • 6 Bolt
    • Qty. 2 on each side
    • 50 Nm + turn 90° further
    • Always renew bolts after loosening
  • 7 Connector
    • Left and right beneath the tail lights.
