Body repairs – exterior · Exterior equipment · Exterior mirror

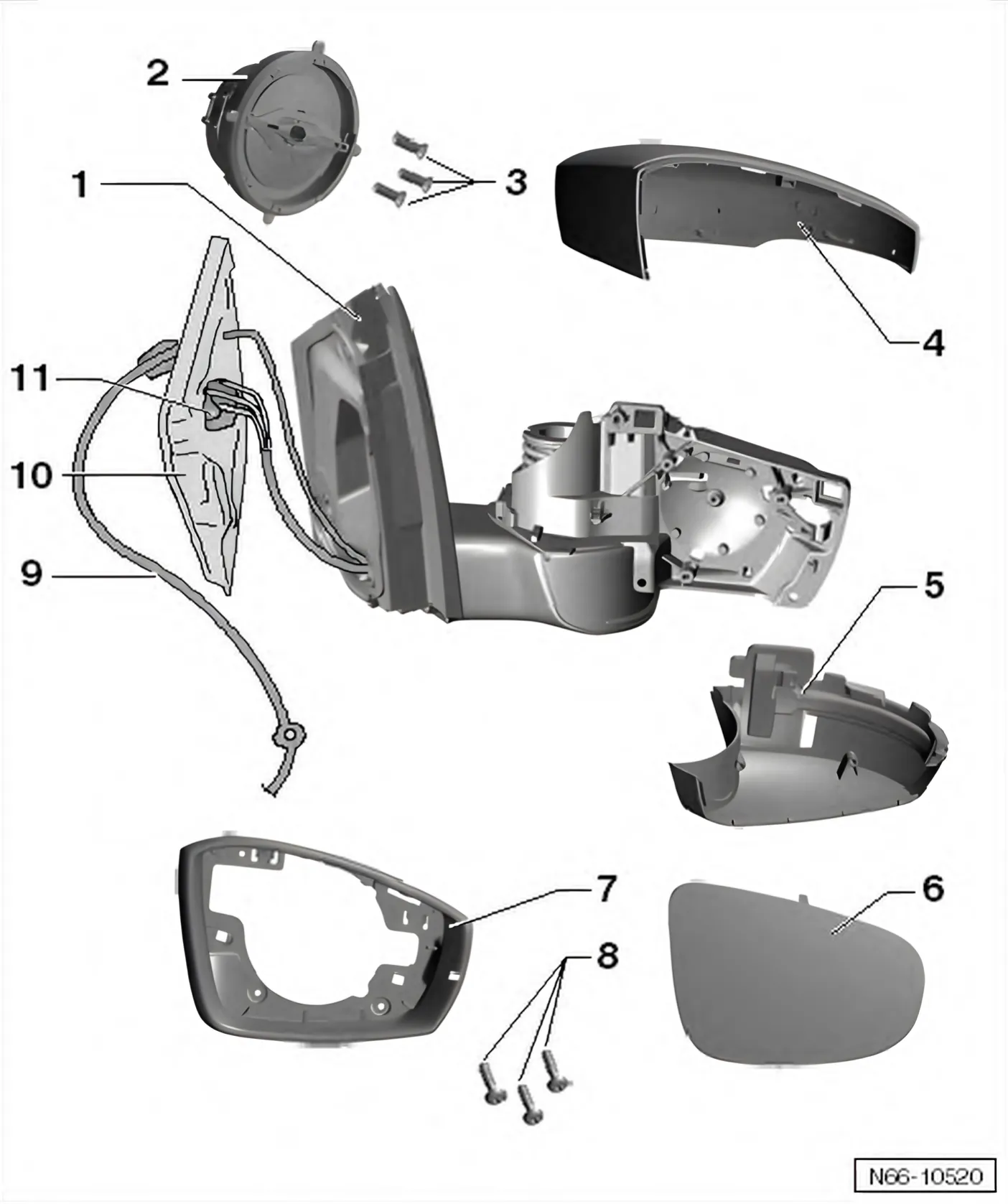

Exterior mirror – assembly overview and fastening
- 1 Mirror mounting
- Removing and installing with manual operation ⇒ 7.2.1 Removing and installing exterior mirror, manually operated.
- Removing and installing with electric operation ⇒ 7.2.2 Removing and installing exterior mirror, electrically operated.
- 2 Adjustment unit with motor
- Removing and installing ⇒ 7.4 Removing and installing mirror adjustment unit
- 3 Bolt
- Qty. 3
- 1 Nm
- 4 Mirror housing
- Material: ABS.
- Removing and installing ⇒ 7.5 Removing and installing mirror cover
- 5 Assembly bracket
- With side turn signal repeater.
- Removing and installing ⇒ 7.7 Removing and installing assembly bracket
- 6 Mirror glass
- Removing and installing ⇒ 7.3 Removing and installing mirror glass
- 7 Trim
- Removing and installing ⇒ 7.6 Removing and installing mirror trim
- 8 Bolt
- Qty. 3
- 1 Nm
- 9 Electrical wire
- 10 Dampers
- 11 Manual adjustment unit
