Removing and installing mirror glass

Special tools and workshop equipment required

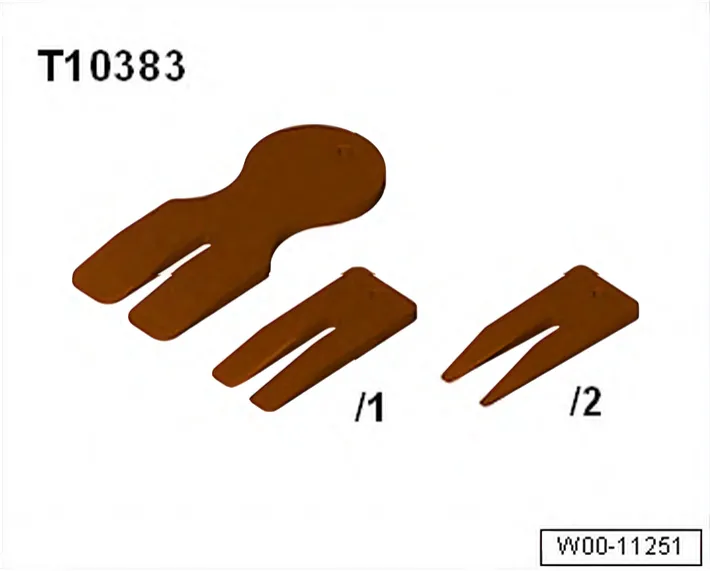

• Wedges - T10383-

Removing

• Protect edge of housing against damage with e.g. fabric-reinforced adhesive tape.

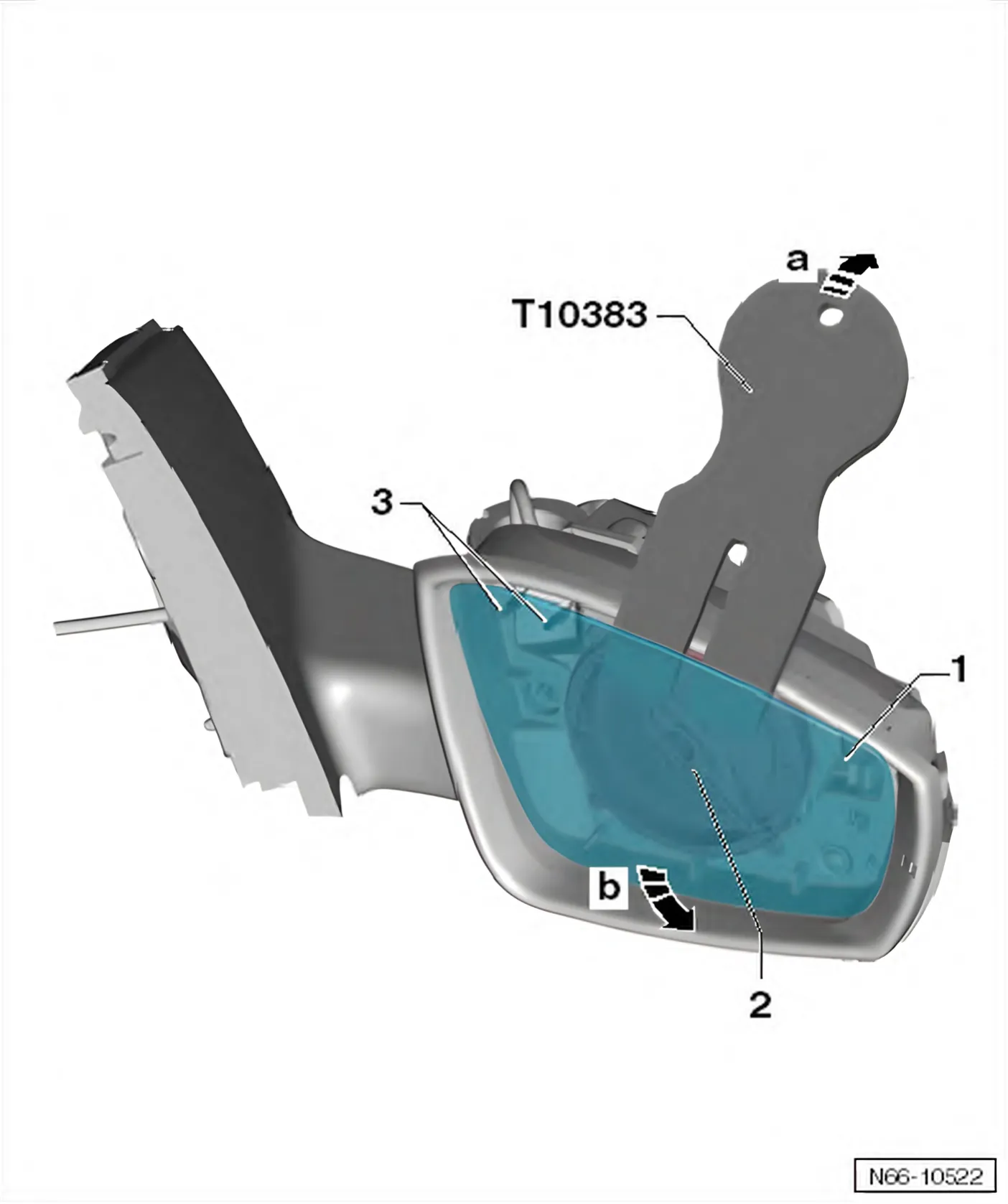

• Press bottom of mirror glass -1- into mirror housing.
• Press mirror glass -1- off bracket -2- and housing -arrow ausing one of the wedges - T10383-.
• Swivel mirror glass -1- to side -arrow b- and detach connector contacts -3- on back of mirror glass -1-.

Installing

• Connect plug-in contacts to mirror glass.
• Press mirror glass centrally onto bracket in housing.
• Mirror glass engages audibly.

• Finally check function.
