Body repairs – exterior · Bonnet, rear lid · Rear lid

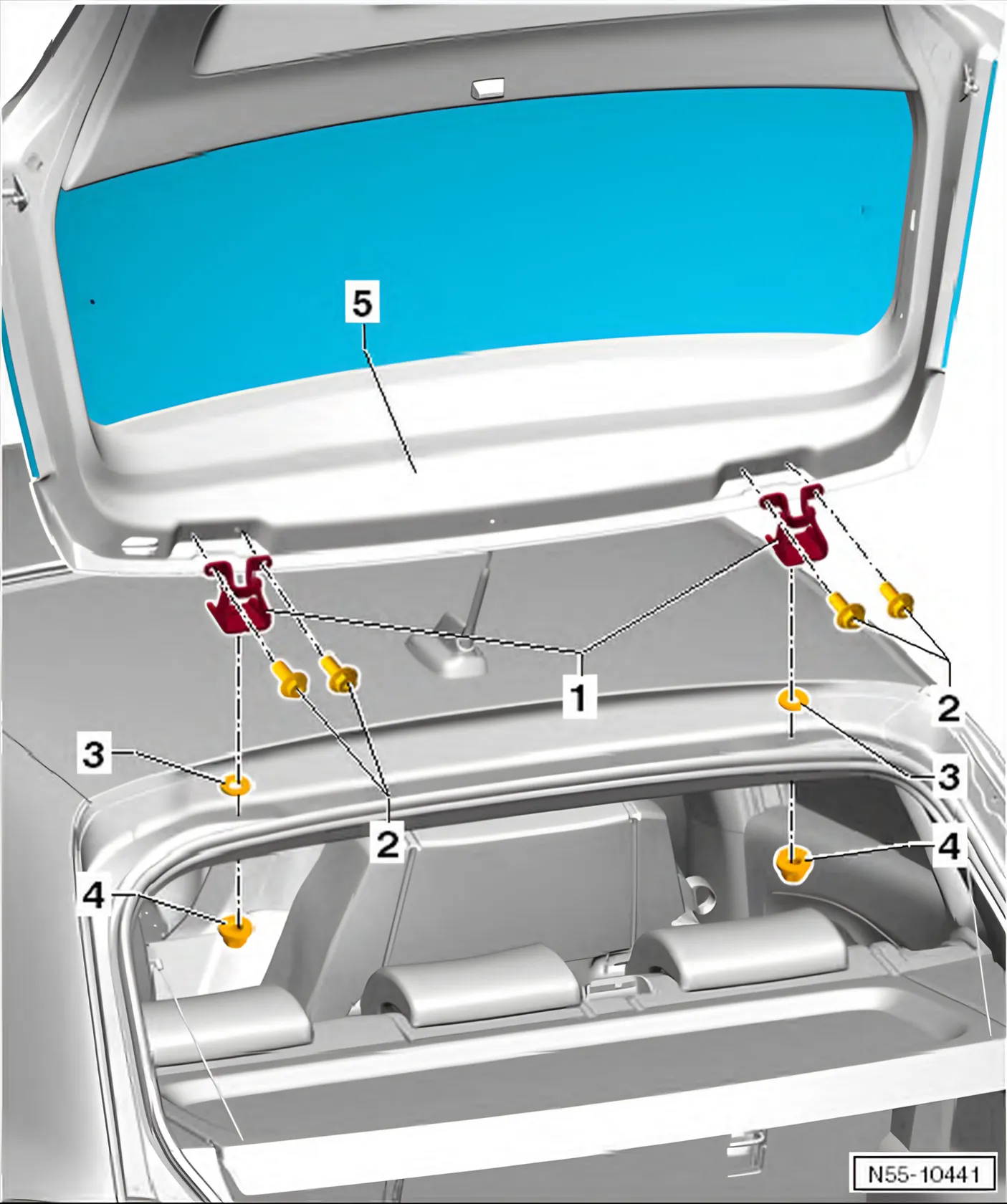

Hinges – assembly overview and fastening
- 1 Hinge
- Removing and installing ⇒ 2.11 Removing and installing hinges
- Adjusting ⇒ 2.6 Adjusting rear lid
- 2 Bolt
- Qty. 2 for each hinge
- Specified torque: 10 Nm
- 3 Washer
- 4 Hexagon nut
- Qty. 2
- Specified torque: 24 Nm
- 5 Rear lid
- Removing and installing ⇒ 2.4 Removing and installing rear lid
