Body repairs – exterior · Bonnet, rear lid · Bonnet (hood)
Removing and installing support rod
Removing
- Support bonnet with suitable workshop equipment.

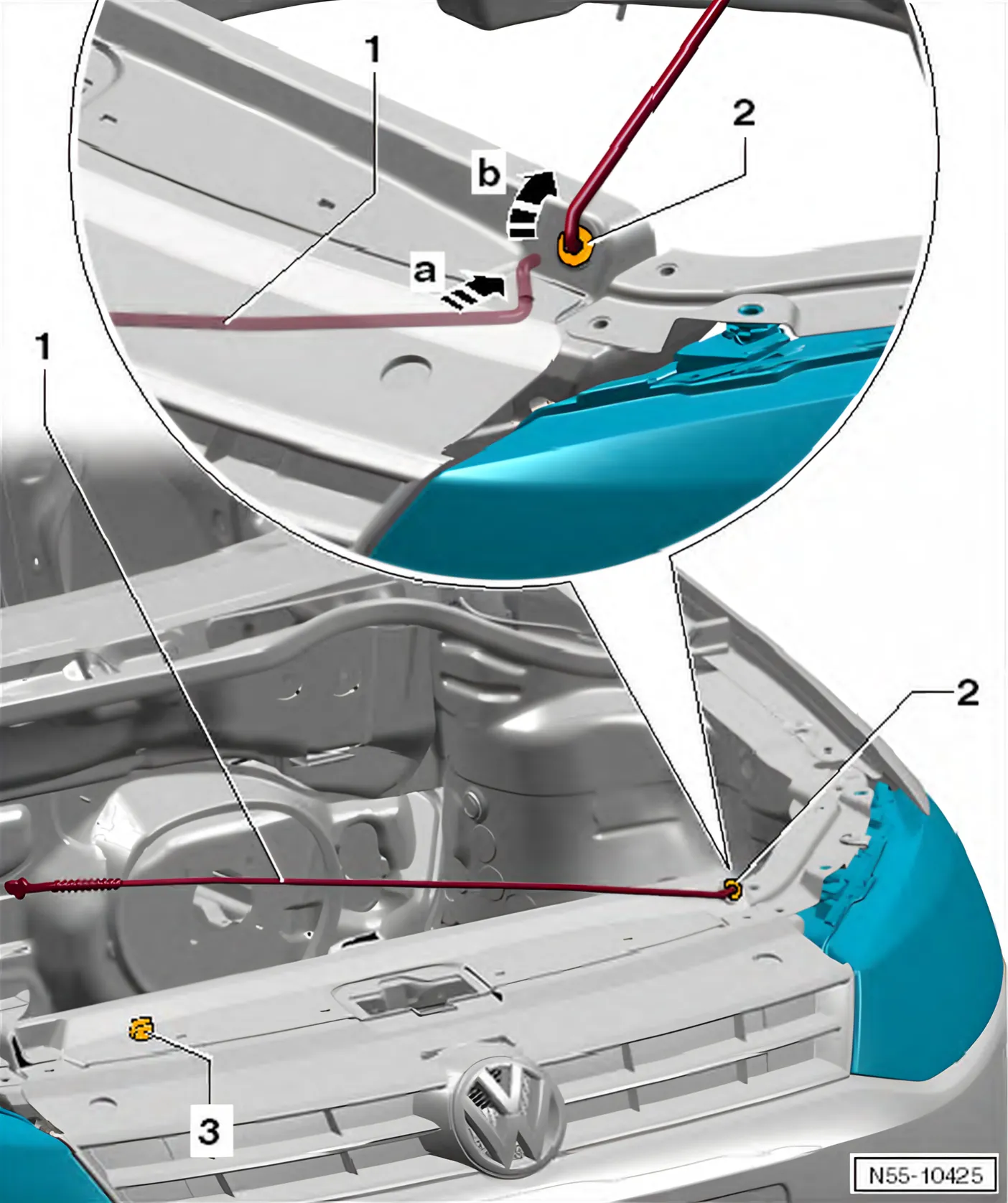

- Swing support rod -1- forwards and pull it out of rubber grommet -2-.
Installing
- Slide support rod -1- into rubber grommet -2- -arrow a-. Swing support rod round to lock carrier -arrow b-.
- Check mounting bracket -3- for damage, renew if necessary.
