Body repairs – exterior · Bonnet, rear lid · Bonnet (hood)

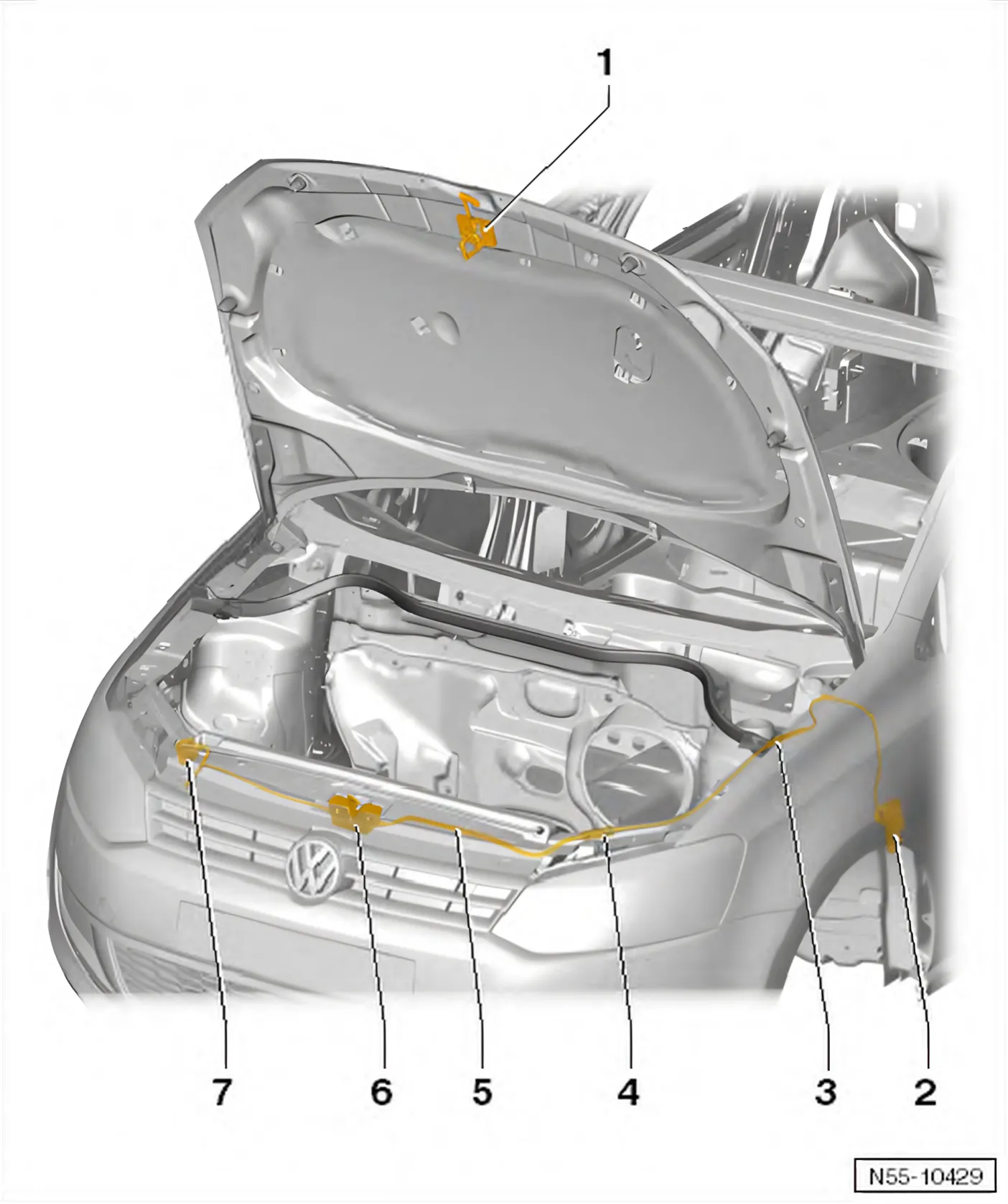

Bowden cable – assembly overview and fastening
- 1 Bonnet lock
- Removing and installing lid lock on LHD vehicle ⇒ 1.8.1 Removing and installing lid lock, LHD vehicle.
- Removing and installing lid lock on RHD vehicle ⇒ 1.8.2 Removing and installing lid lock, RHD vehicle.
- Adjusting ⇒ 1.6 Adjusting lid lock
- 2 Operating lever
- Removing and installing ⇒ 1.9 Removing and installing bonnet release lever
- 3 Bowden cable
- From Bowden cable coupling to release lever
- 4 Bowden cable coupling
- Bowden cable coupling is located above headlight on drivers side
- Detaching ⇒ 1.14 Detaching Bowden cable
- 5 Bowden cable
- From lid lock to Bowden cable coupling.
- Clipped into Bowden cable coupling.
- 6 Striker
- Removing and installing ⇒ 1.10 Removing and installing striker pin
- Adjusting ⇒ 1.6 Adjusting lid lock
- 7 Connector
- Only in vehicles with contact switch for bonnet.
