Body repairs – exterior · Bonnet, rear lid · Rear lid
Adjusting adjusting buffer

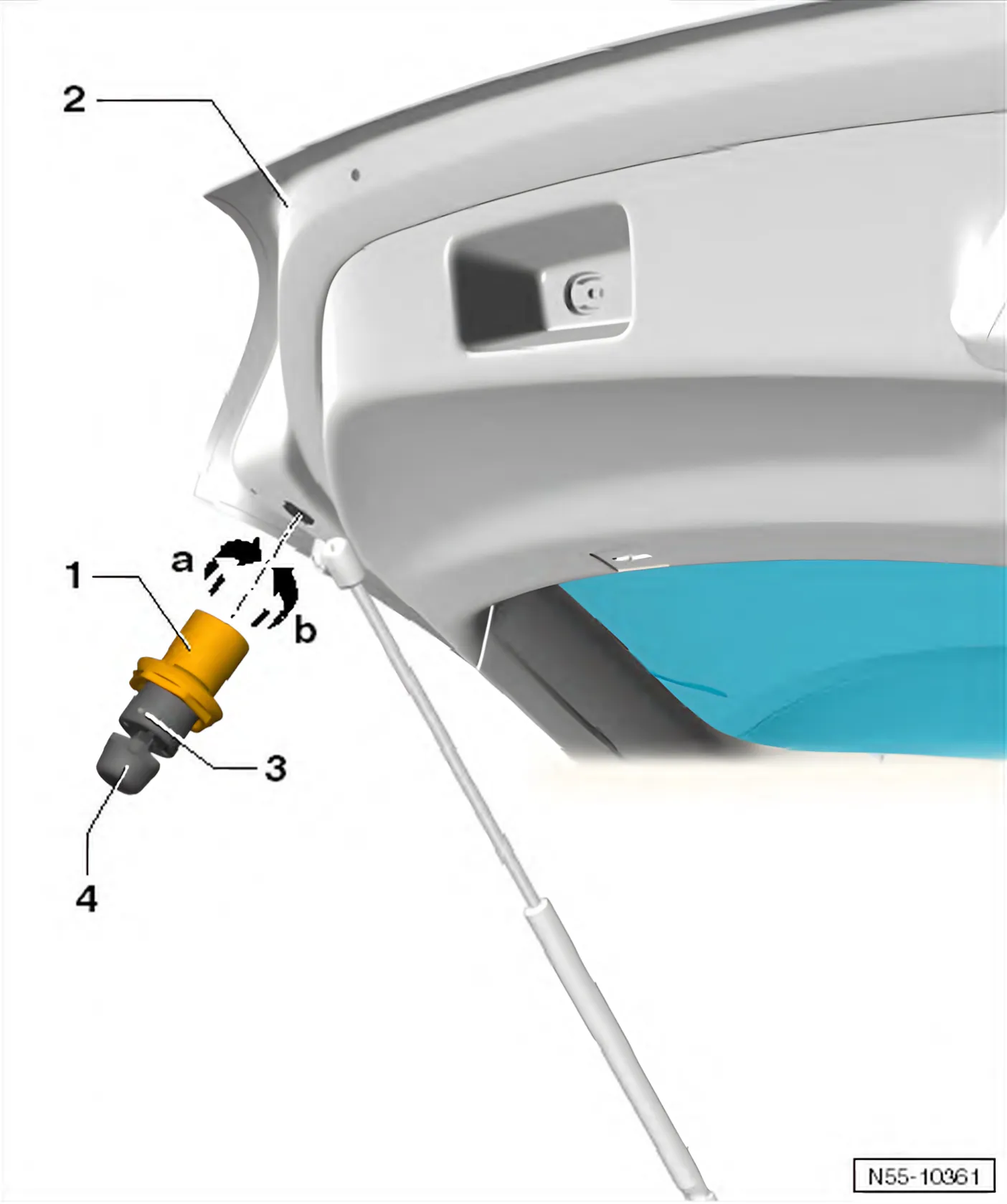

- Loosen clamping bolt -4- until it is visible in rubber buffer.
- Pull detent slide -3- out of adjusting buffer -1-.

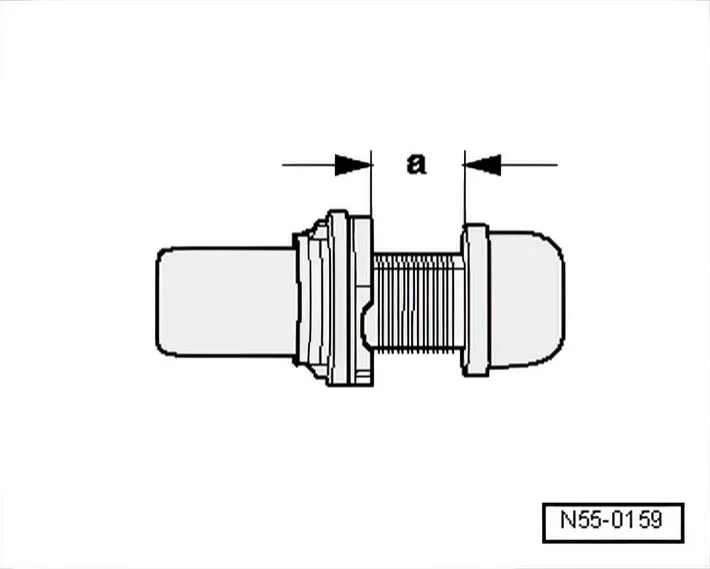

- Adjust detent slide to dimension -a- = 12.5 mm.
- Close rear lid in preliminary detent position with slight pressure in the middle.
- Open rear lid again.

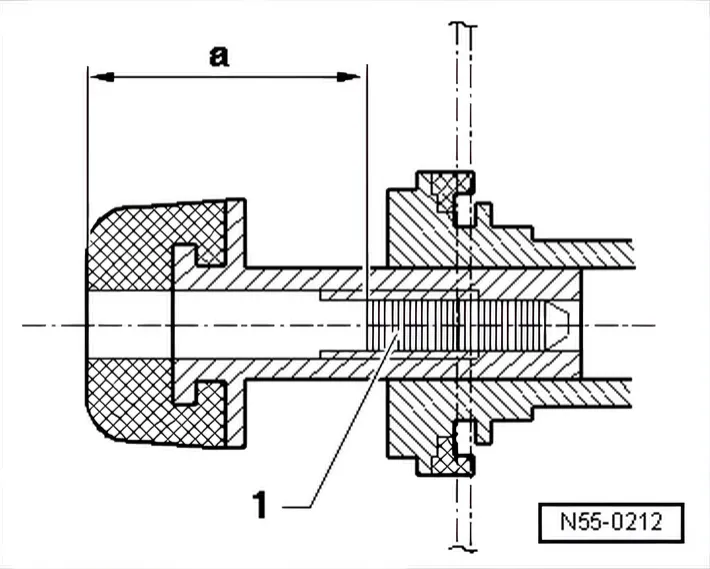

- Screw in adjustment buffer clamping screw -1- to a depth of -a- = 20 mm.
- Check the adjustment.
