Removing and installing insulation

Special tools and workshop equipment required

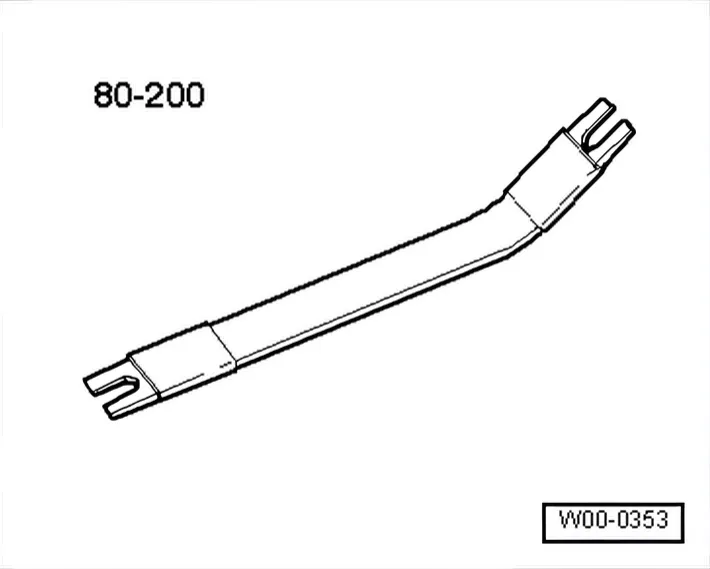

• Assembly lever - 80-200-

Removing

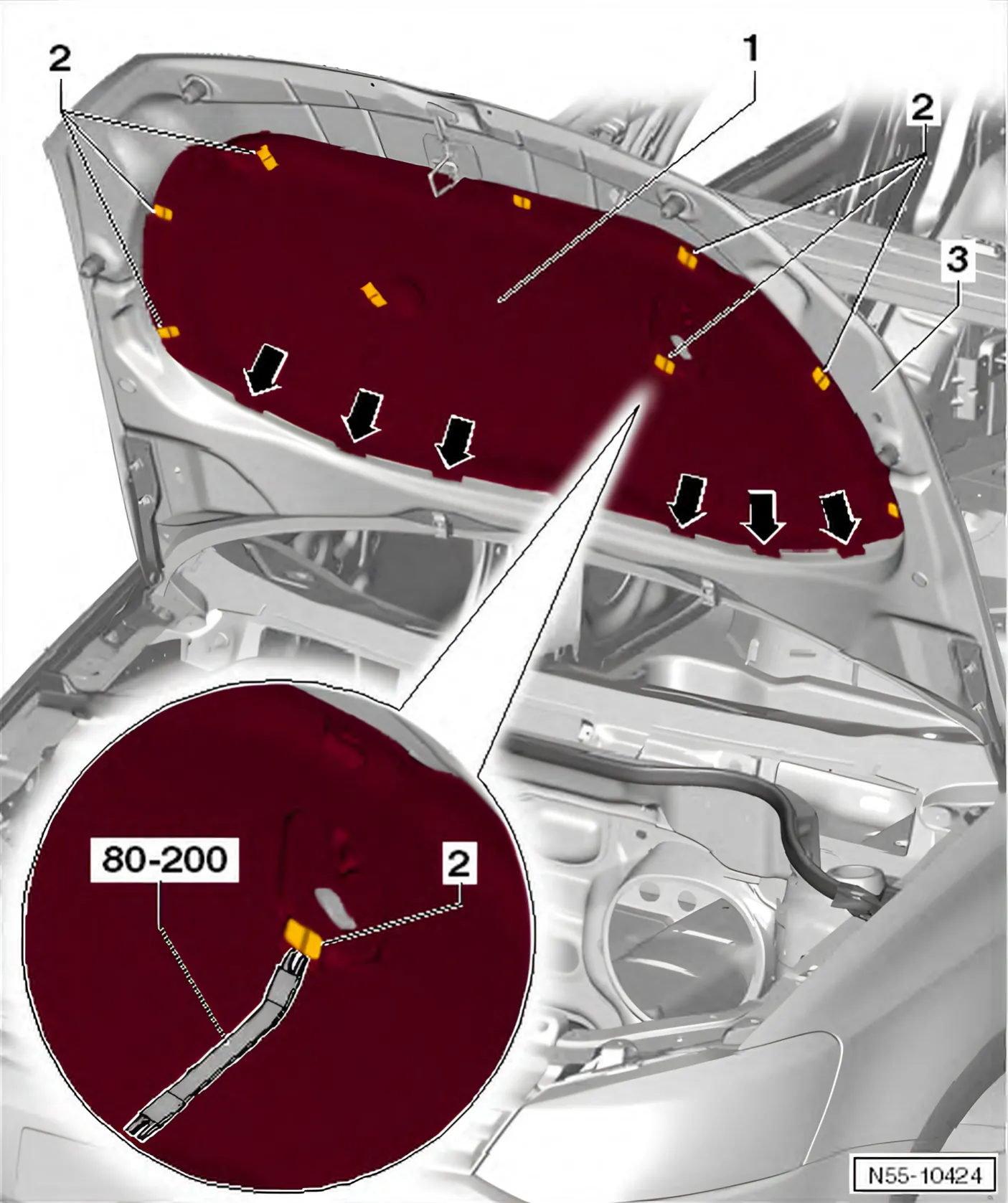

• Lever out retaining clips -2- from bonnet -2- using removal lever - 80-200-.
• Pull insulation -1- out of elongated holes -arrows-.

Installing

• When installing insulation -1-, ensure that retaining clips -2- are fitted with wider side outwards.

• Slide insulation -1- with fitting lugs in longitudinal holes -arrows-.
• Insert retaining clips -2- into bonnet -3-.
