Body repairs – exterior · Bonnet, rear lid · Rear lid

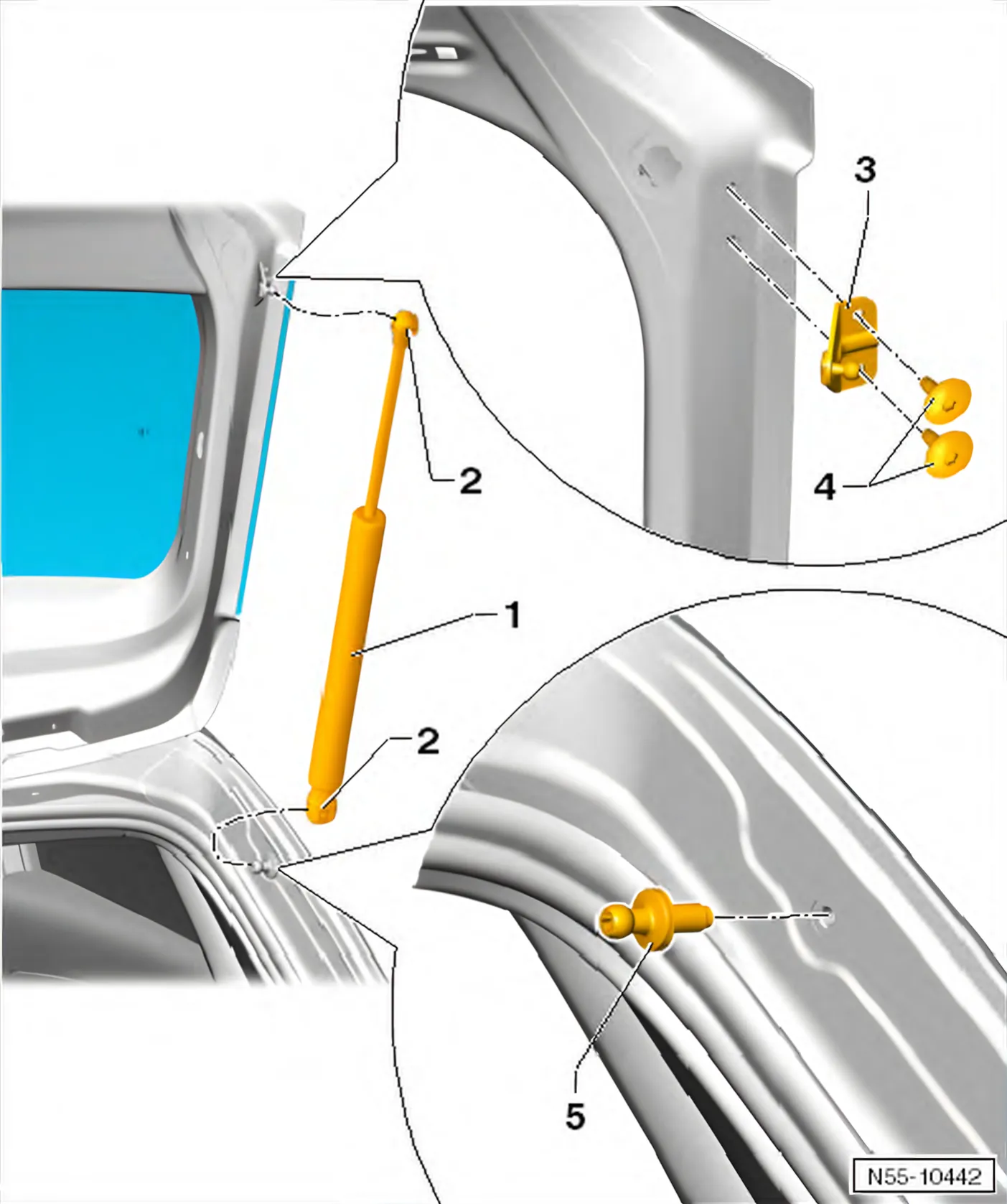

Gas strut – assembly overview and fastening
- 1 Gas strut
- Removing and installing ⇒ 2.14 Removing and installing gas strut
- Releasing gas ⇒ 2.15 Releasing gas from gas strut
- 2 Clip
- 3 Retaining bracket
- 4 Bolt
- Qty. 2
- 8 Nm and 90°
- 5 Ball-head pin
- 20 Nm and 45°
