Body repairs – exterior · Bonnet, rear lid · Rear lid
Removing and installing rear lid seal
In the factory a sealant is applied to the rear lid seal, the seal is fitted to the body flange and then rolled on.
Removing

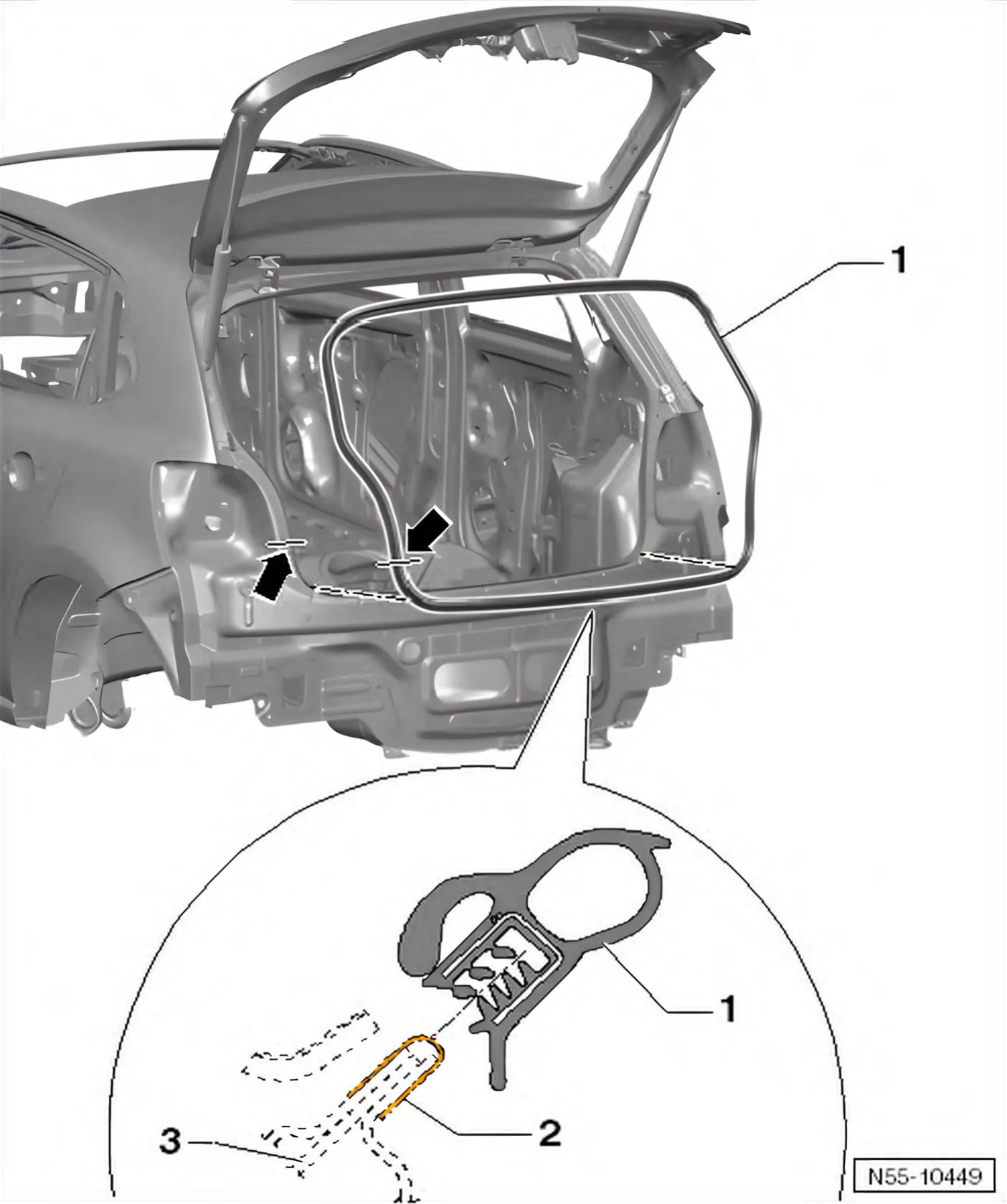

- Pull rear lid seal -1- off body flange -3-.
Installing
The body flange -3- is masked off in the lower area with a commercially available textile adhesive tape -2-
- Align rear lid seal -1- so that vulcanised point -arrow- faces the tail light cluster -arrow-.
