Body repairs – exterior · Bonnet, rear lid · Bonnet (hood)
Removing and installing bonnet release lever
Removing

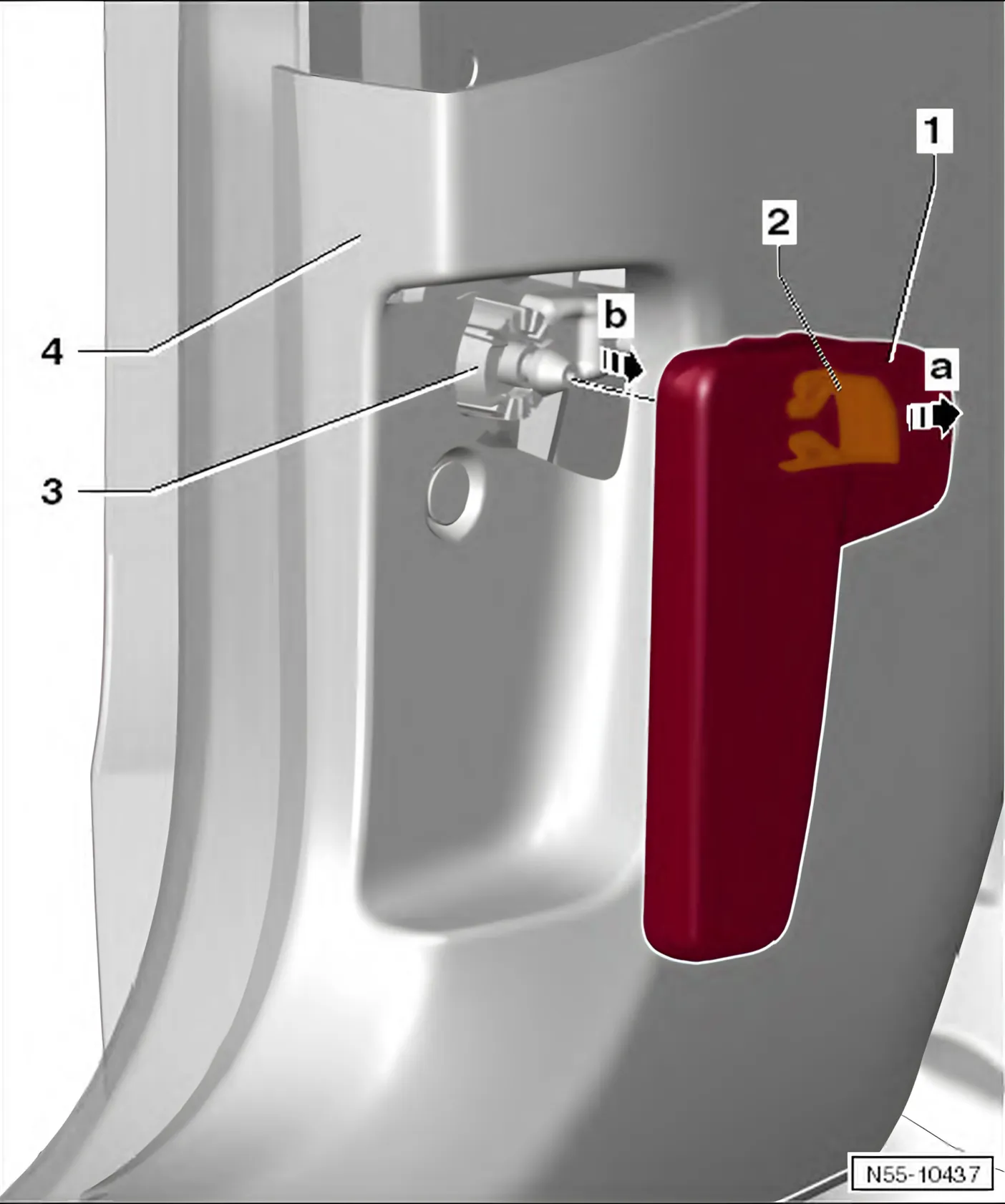

- Pull release lever -1- to release bonnet.
- Insert a small screwdriver in gap between release lever -1- and retaining clip -2-.
- Lever retaining clip -2- out of release lever -1- -arrow- and pull release lever off mounting bracket -3-.
For all other work on mounting bracket -3-, remove lower A-pillar trim -4-.
Installing
- Lower A-pillar trim -4- is installed.
- Push retaining clip -2- into release lever.
- Press retaining lever -1- onto mounting bracket -3-.
