Body repairs – exterior · Bonnet, rear lid · Rear lid
Adjusting striker pin
Special tools and workshop equipment required
- Torque wrench - V.A.G 1331-
- Remove lock carrier cover ⇒ General body repairs, interior; Rep. gr. 70; Luggage compartment trims; Removing and installing lock carrier cover.

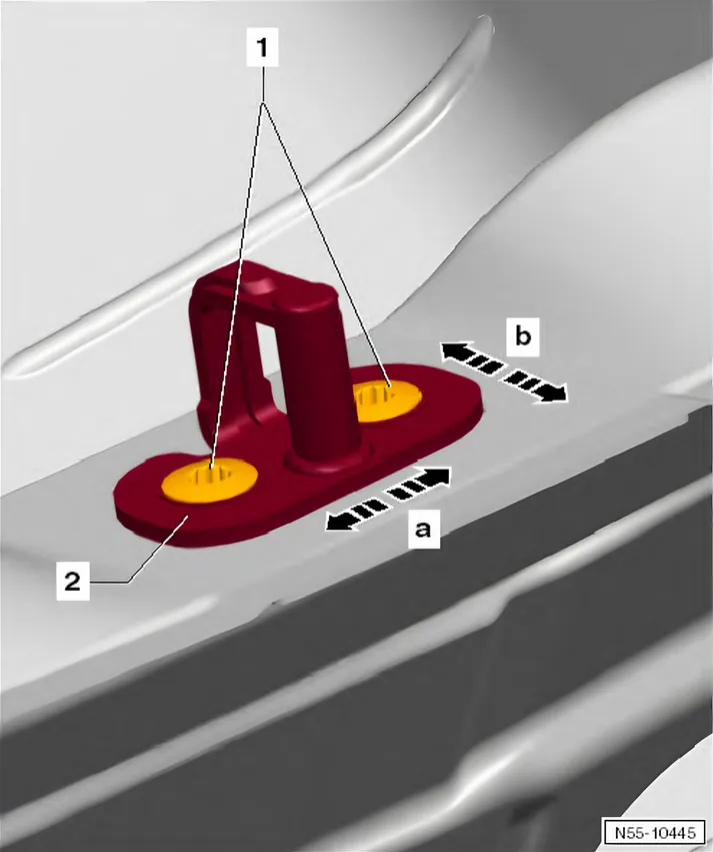

- Loosen bolt -1-
- Install striker pin -2- in upper position and tighten the bolts -1-.
- Close rear lid and make sure adjustment has been carried out correctly.
- Specified torque for bolts -1-: 18 Nm.
