Body repairs – exterior · Bonnet, rear lid · Bonnet (hood)

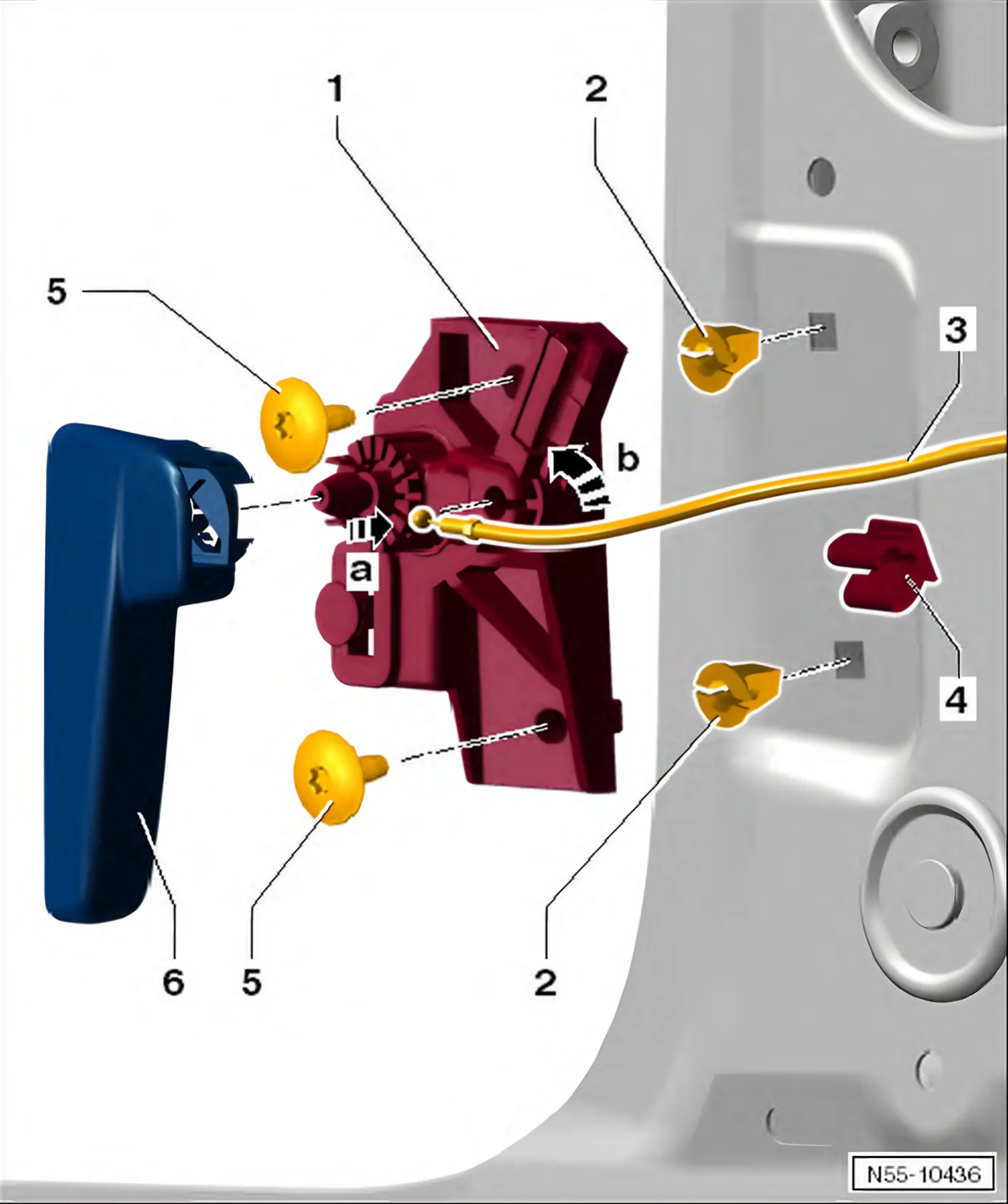

Bonnet release lever – assembly overview and fastening

  • 1 Mounting bracket
  • 2 Insert nut
    • Qty. 2
  • 3 Bowden cable
    • Installing:
    • Insert Bowden cable ball into bracket -arrow a- and secure Bowden cable in mounting bracket -arrow b-.
  • 4 Bracket
  • 5 Bolt
    • Specified torque: 2 Nm
    • Qty. 2
  • 6 Operating lever
