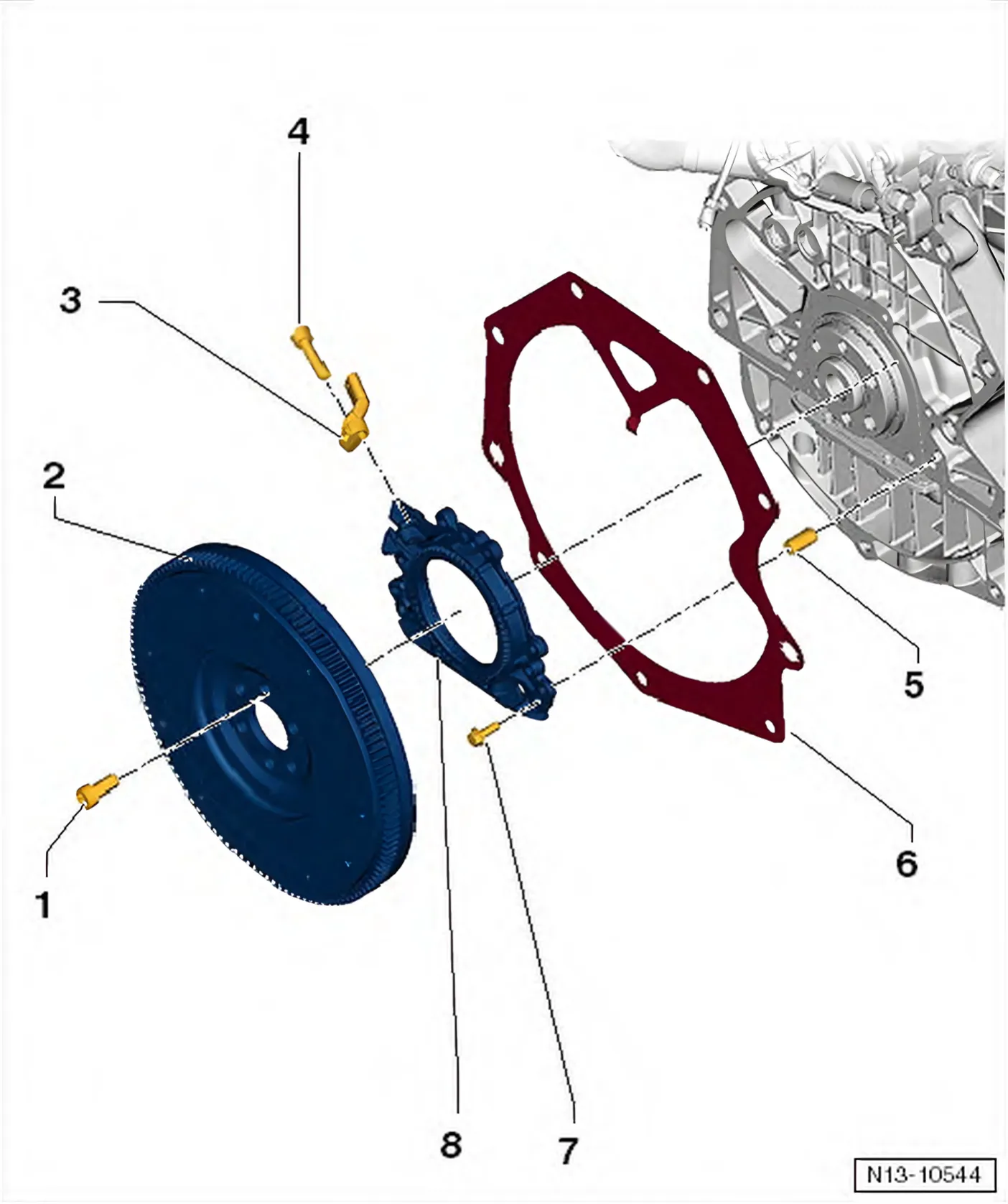

Cylinder block, gearbox end – assembly overview and fastening

• 1 Bolt
  • Renew after removal
  • 60 Nm + 90°
• 2 Flywheel
  • Removing and installing ⇒ 2.2 Removing and installing flywheel
  • Can only be fitted in one position
• 3 Engine speed sender - G28-
  • Removing and installing ⇒ 1.5 Removing and installing engine speed sender G28
• 4 Bolt
  • Specified torque ⇒ 1.1 Assembly overview - ignition system
• 5 Dowel pin
  • Qty. 2
• 6 Adapter
  • Do not damage or bend when assembling.
  • Installing ⇒ 2.1 Assembly overview - cylinder block, gearbox end
• 7 Bolt
  • Specified torque and tightening sequence ⇒ 2.1 Assembly overview - cylinder block, gearbox end
• 8 Sealing flange with sender wheel and oil seal
  • Renew sealing flange complete with oil seal and sender wheel only.
  • Removing and installing ⇒ 2.3 Removing and installing sealing flange on gearbox side

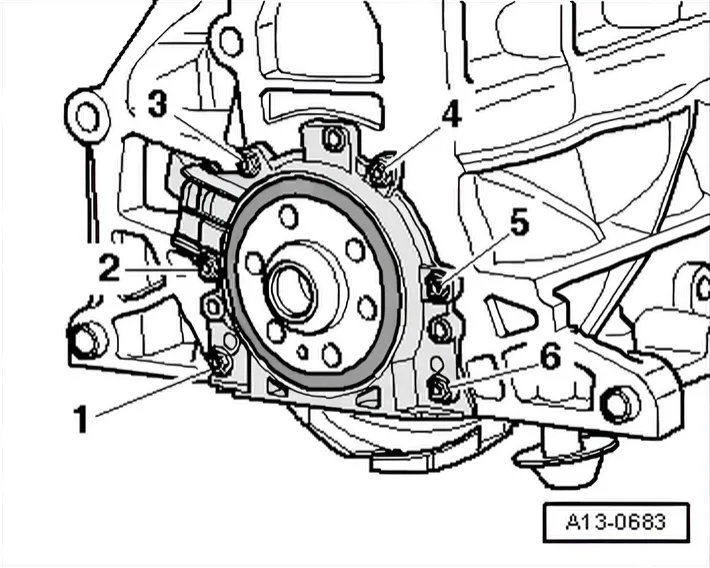

Sealing flange on gearbox side - specified torque and tightening sequence

• Tighten bolts in stages as follows:

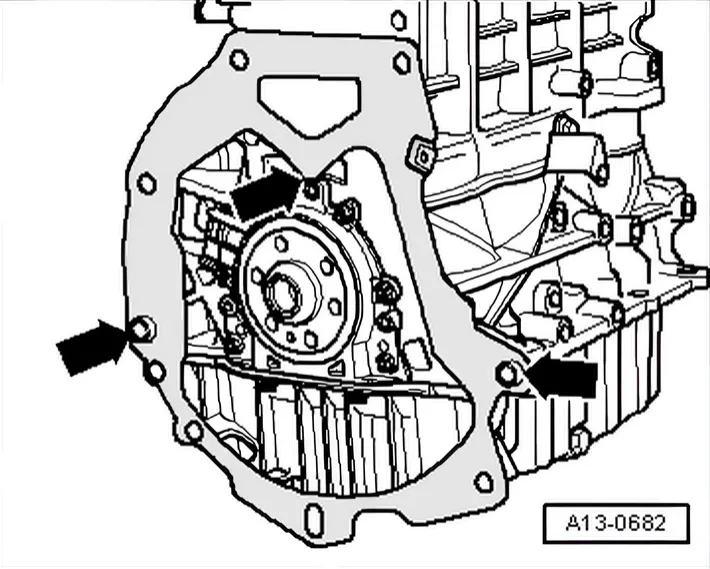

Install intermediate plate.

• Attach intermediate plate to sealing flange -arrow at top- and push onto dowel sleeves -arrows at bottom-.

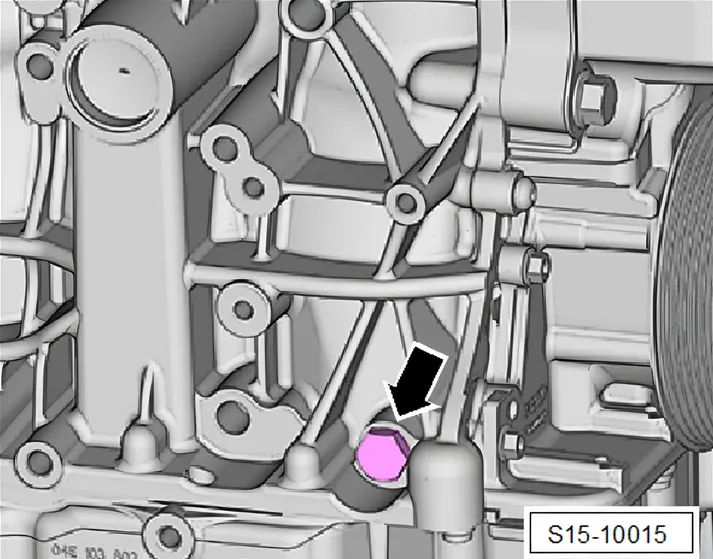

Plug for “TDC” drilling in cylinder block at rear – specified torque
