1.4 TSI engine (EA211) · Crankshaft group · Cylinder block (pulley end)
Removing and installing tensioner for poly V-belt
⇒ 1.4.2 Removing and installing tensioner for poly V-belt, vehicles with air conditioner compressor
1.4.1 Removing and installing tensioner for poly V-belt, vehicles without air conditioner compressor
Removing
- Remove poly V-belt from tensioner ⇒ 1.3.1 Removing and installing poly V-belt, vehicles without air conditioner compressor.

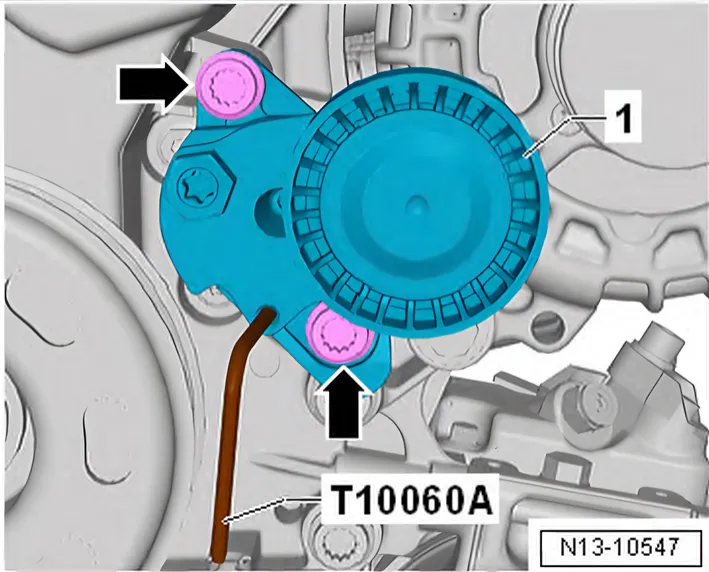

- Remove bolts -arrows- and detach poly V-belt tensioner -1-.
Installing
Install in reverse order of removal. The following should be observed:
- Install poly V-belt ⇒ 1.3.1 Removing and installing poly V-belt, vehicles without air conditioner compressor.
- Specified torque ⇒ 1.1.1 Assembly overview - poly V-belt drive, vehicles without air conditioner compressor
1.4.2 Removing and installing tensioner for poly V-belt, vehicles with air conditioner compressor
Removing
- Remove poly V-belt from tensioner ⇒ 1.3.2 Removing and installing poly V-belt, vehicles with air conditioner compressor.

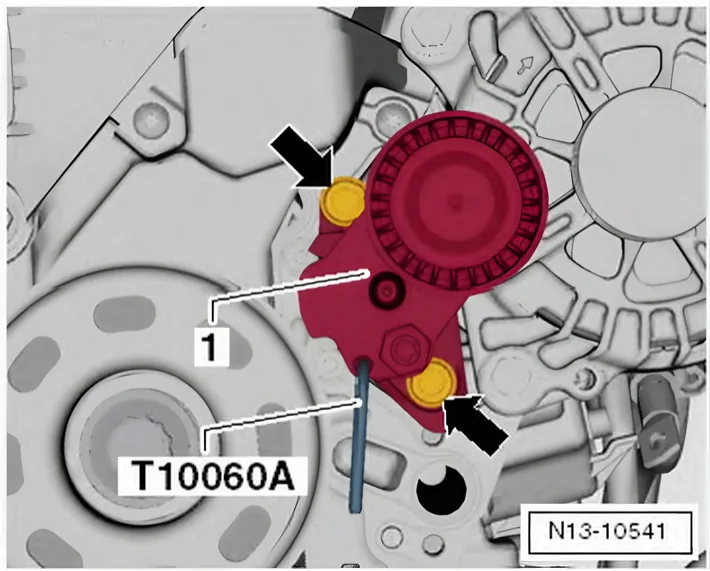

- Remove bolts -arrows- and detach poly V-belt tensioner -1-.
Installing
Install in reverse order of removal, observing the following:
