Removing and installing poly-V belt

⇒ 1.3.1 Removing and installing poly V-belt, vehicles without air conditioner compressor

⇒ 1.3.2 Removing and installing poly V-belt, vehicles with air conditioner compressor

1.3.1 Removing and installing poly V-belt, vehicles without air conditioner compressor

Special tools and workshop equipment required

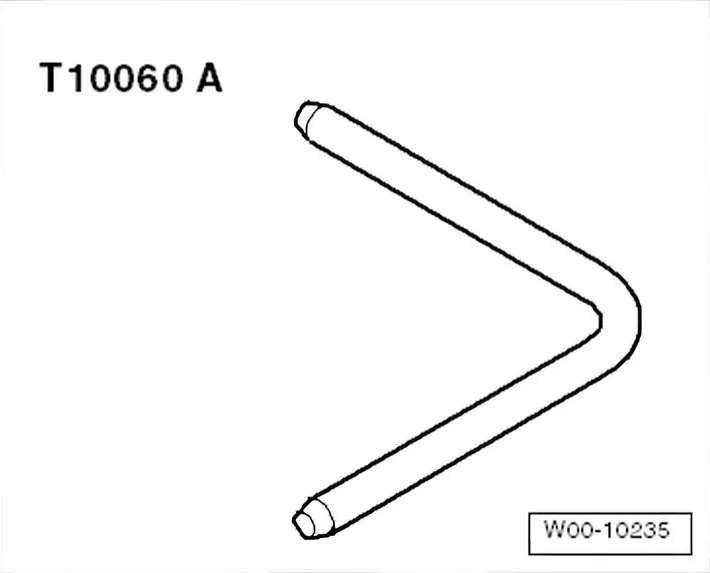

• Locking pin - T10060 A-

Removing

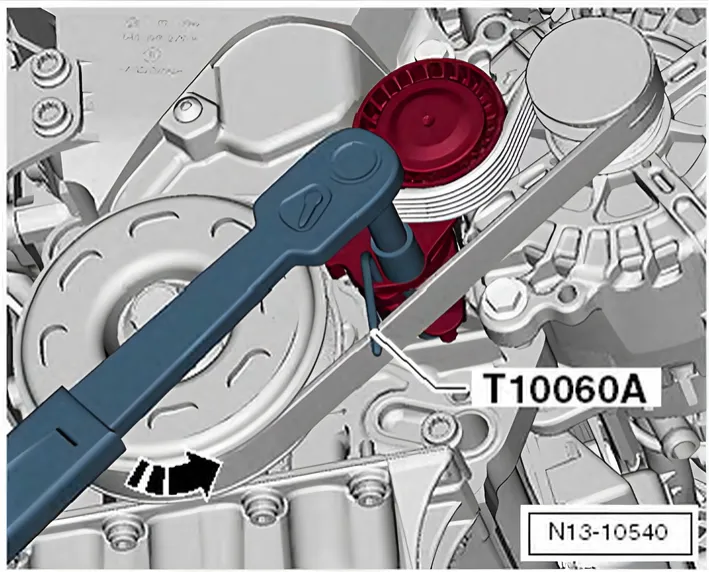

• To slacken poly V-belt turn tensioning device in direction of -arrow-.
• Lock tensioning device in place with locking pin - T10060 A-.
• Before removing the poly V-belt, use a piece of chalk or a felt pen to mark the running direction.
• Remove poly V-belt.

Installing

Install in reverse order of removal, observing the following:

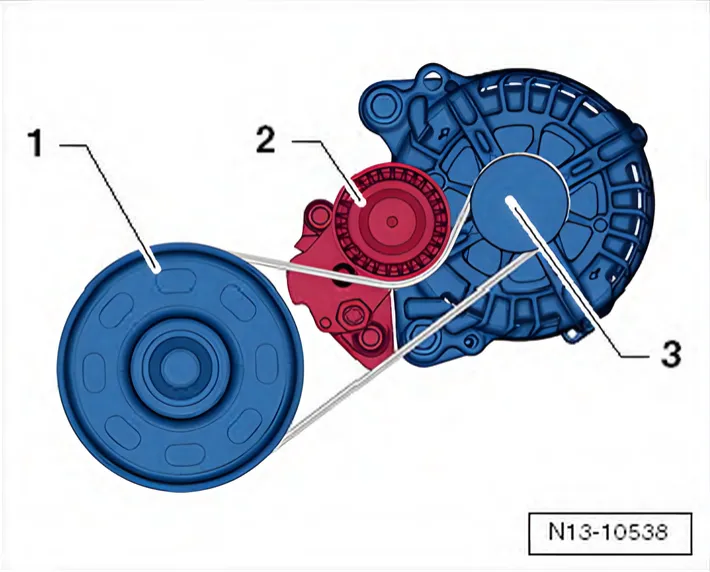

• Fit poly V-belt as shown in illustration.

• 1 Vibration damper
• 2 Tensioning device for poly V-belt
• 3 Alternator

• Turn tensioning device in -direction of arrow-, and pull out locking pin - T10060 A-.
• Release tensioner.
• Check that poly V-belt is properly seated.
• Start engine and check that poly V-belt runs properly.

1.3.2 Removing and installing poly V-belt, vehicles with air conditioner compressor

Special tools and workshop equipment required

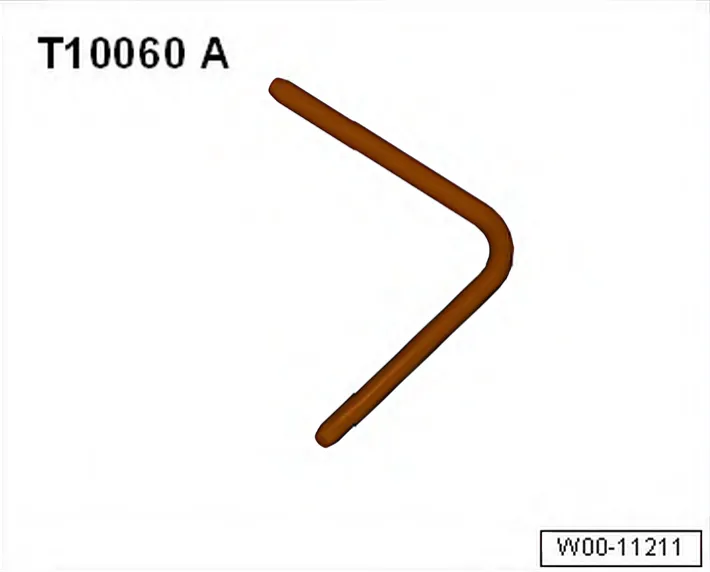

• Locking pin - T10060 A-

Removing

• Before removing the poly V-belt, use a piece of chalk or a felt pen to mark the running direction.

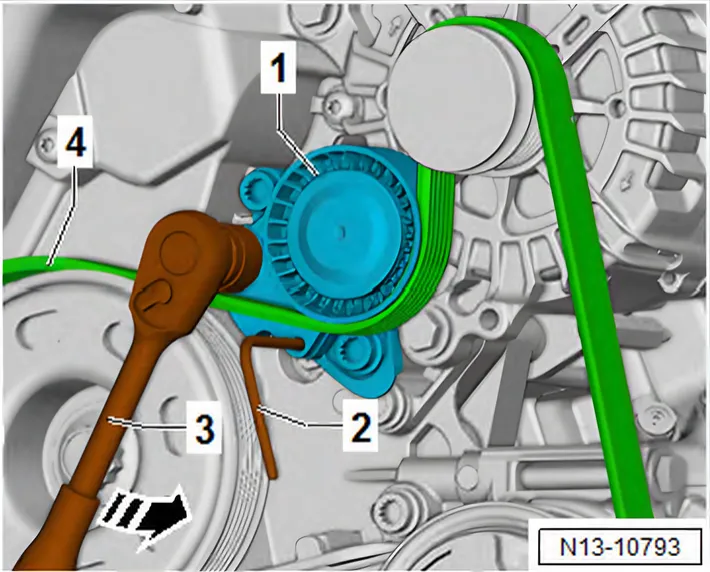

• Fit tool -3- onto hexagon of tensioner -1-.
• To slacken poly V-belt push tool -3- in -direction of arrow-.
• Lock tensioner -1- in place with locking pin - T10060 A- -2-.
• Remove poly V-belt -4-.

Installing

Install in reverse order of removal. The following should be observed:

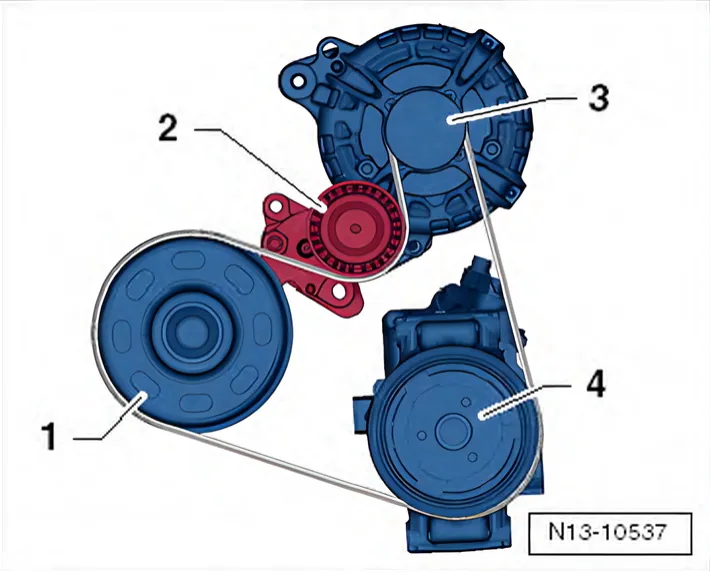

• Fit poly V-belt as shown in illustration.

• 1 Vibration damper
• 2 Tensioning device for poly V-belt
• 3 Alternator
• 4 Air conditioner compressor

• Push tool -3- in -direction of arrow-, and pull out locking pin - T10060 A- -2-.
• Release tension from tensioner -1-.
• Check that poly V-belt -4- is properly seated.
• Start engine and check that poly V-belt runs properly.
