1.4 TSI engine (EA211) · Crankshaft group · Cylinder block (pulley end)

Renewing crankshaft oil seal - belt pulley end

Special tools and workshop equipment required

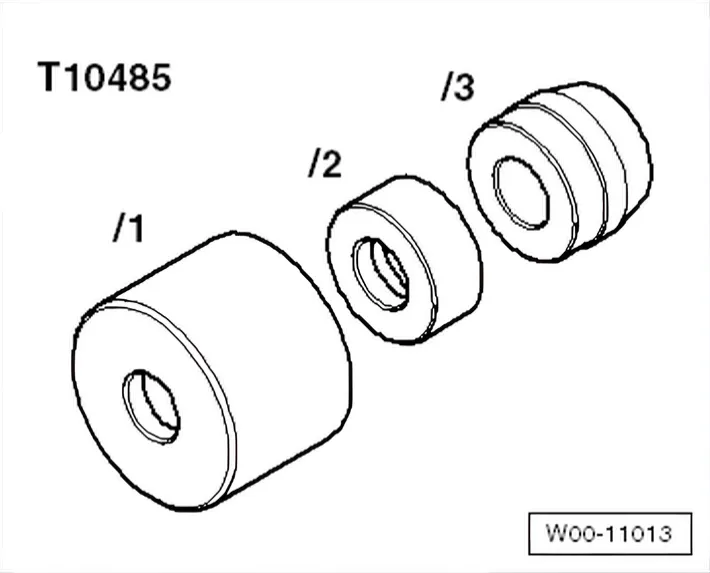

  • Assembly tool - T10485-

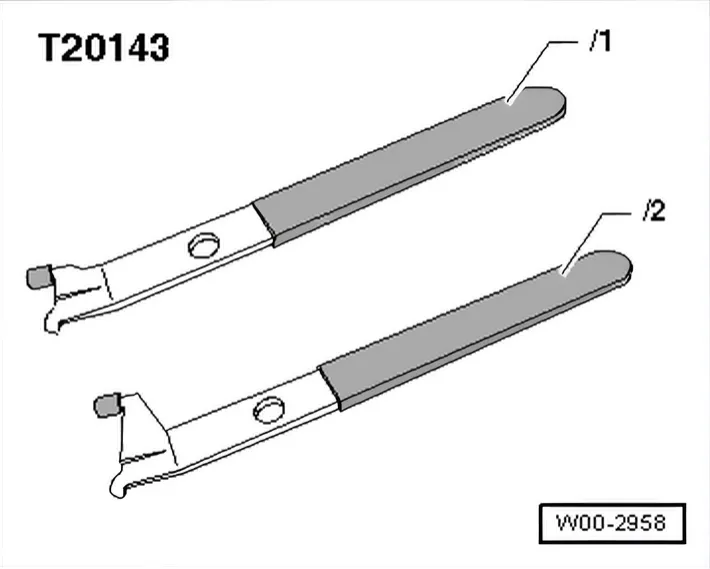

  • Extractor hook - T20143-

Procedure

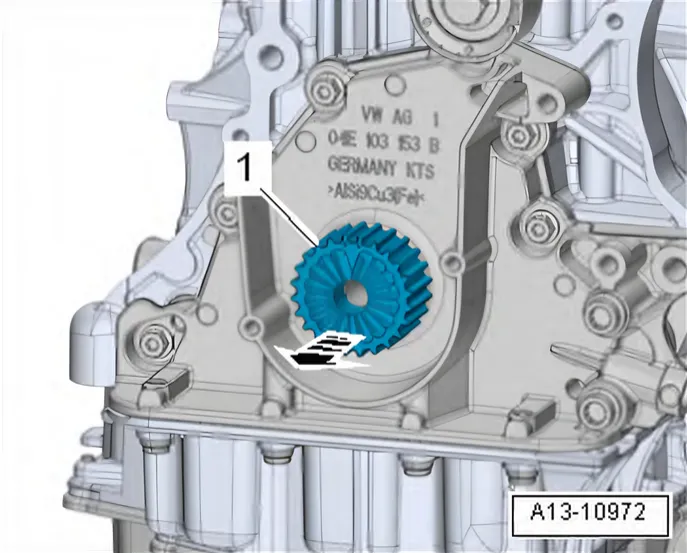

  • Detach crankshaft pulley -1- -arrow-.
NOTICE

Risk of damage to engine caused by incorrect valve timing.

  • Do not turn crankshaft out of TDC position.

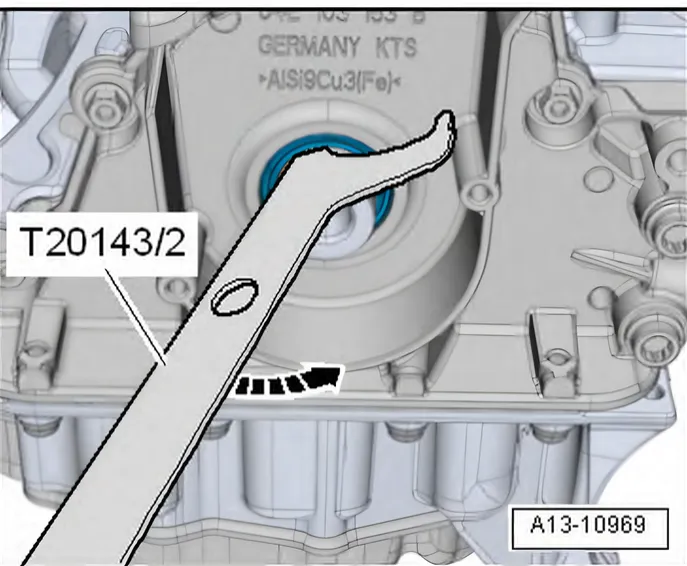

  • Pry out seal using extractor hook -T20143/2- -arrow-.
  • Clean contact surface and sealing surface.

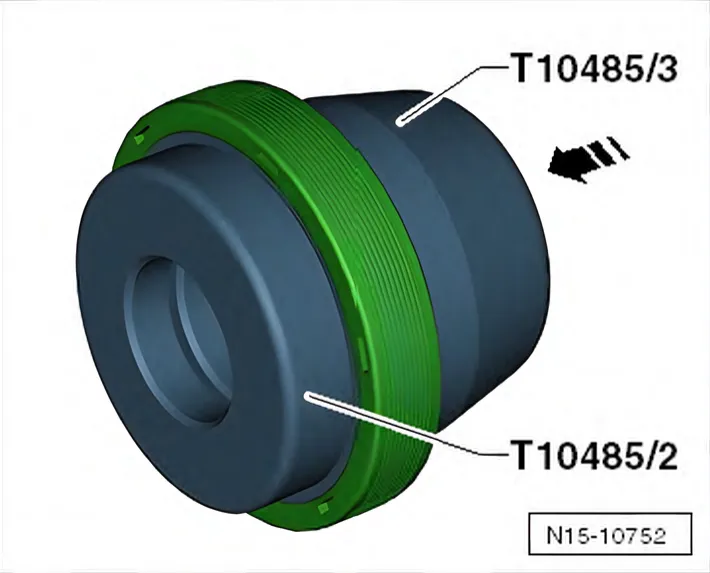

  • Fit new seal in -direction of arrow- onto assembly sleeve - T10485/2-.

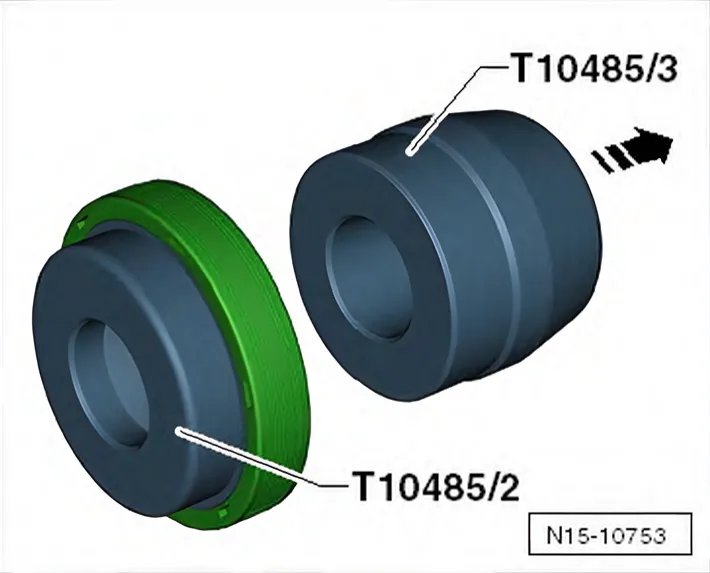

  • Pull off assembly sleeve - T10485/3- in -direction of arrow-.
  • Installation position: closed end of seal faces fitting sleeve.
  • Separate fitting sleeve and guide sleeve.

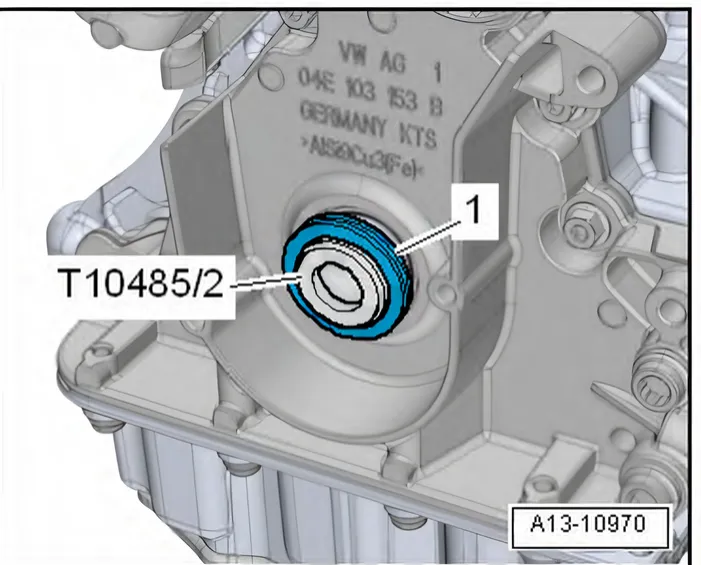

  • Fit guide sleeve -T10485/2- with oil seal -1- onto crankshaft.

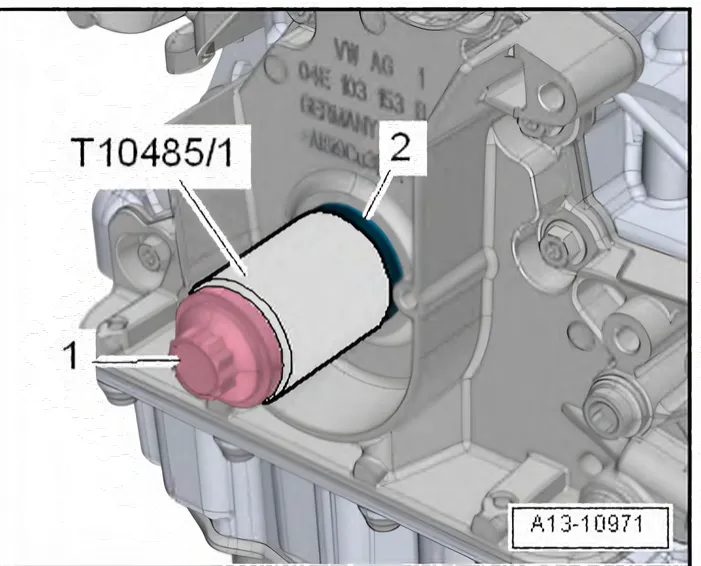

  • Draw in seal -2- to stop using thrust piece -T10485/1- and bolt -1- for pulley.
  • Fit crankshaft sprocket onto crankshaft.
  • The contact surface between vibration damper and crankshaft toothed belt pulley must be free of oil and grease.

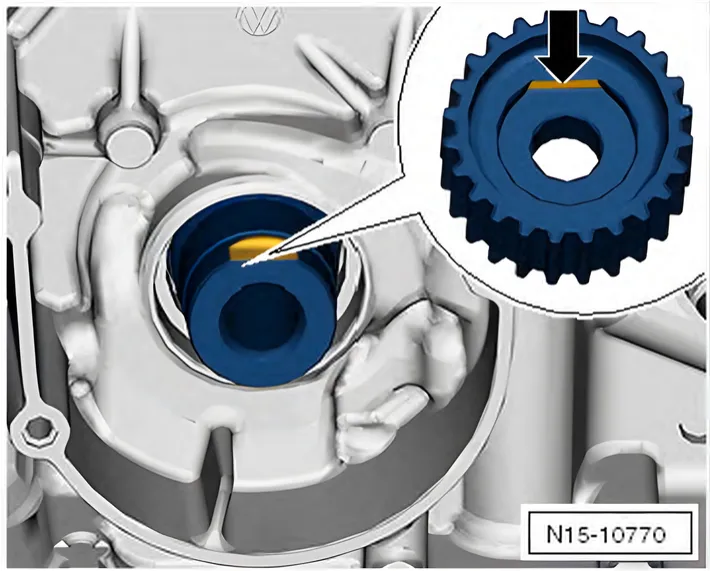

  • The machined surface -arrow- of crankshaft pulley must be positioned over the machined surface of the crankshaft journal.
