1.4 TSI engine (EA211) · Ignition system · Ignition system

Removing and installing engine speed sender - G28-

Special tools and workshop equipment required

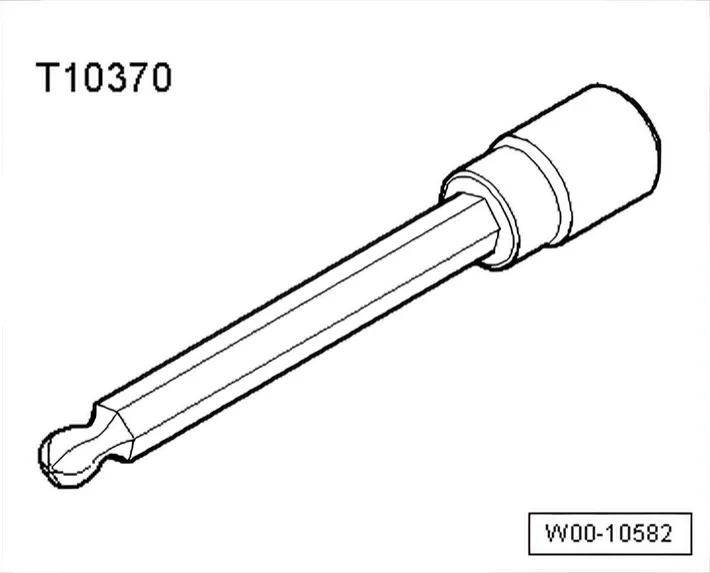

  • Socket, 4 mm - T10370-

Removing

Overview of fitting locations ⇒ 1.1 Overview of fitting locations - injection system.

Assembly overview - ignition system ⇒ 1.1 Assembly overview - ignition system.

  • Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.

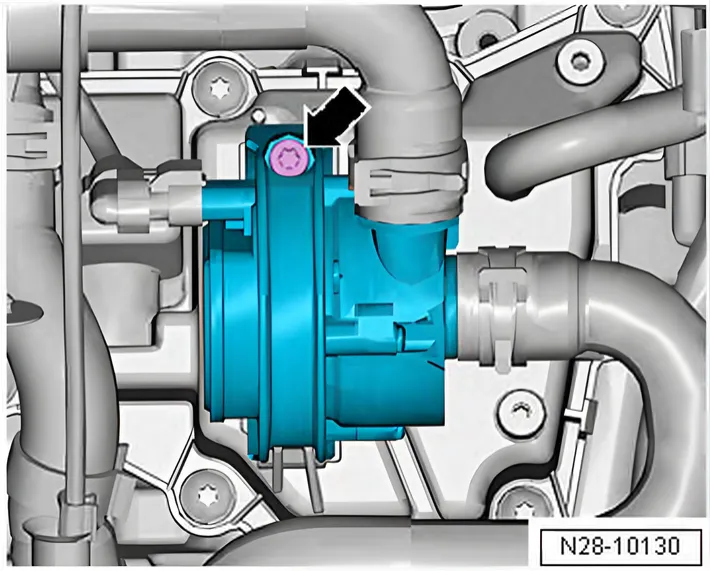

  • Unscrew bolt -arrow- and push charge air cooling pump - V188- to one side.

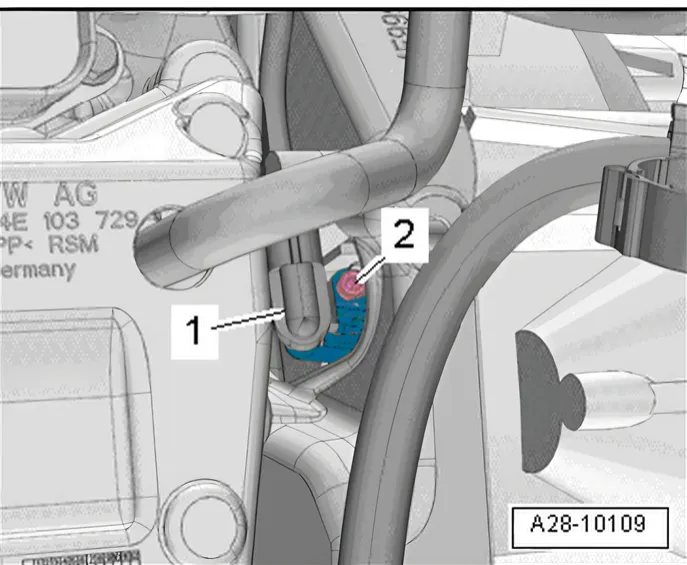

  • Disconnect electrical connector -1-.
  • Unscrew bolt -2- and remove engine speed sender - G28-.

Installing

  • Install in reverse order of removal. The following should be observed:
  • Carefully insert the engine speed sender - G28- into the hole. This will prevent the engine speed sender - G28- from falling between engine and gearbox.
  • Install noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.

Torque settings
