1.4 TSI engine (EA211) · Crankshaft group · Cylinder block (pulley end)

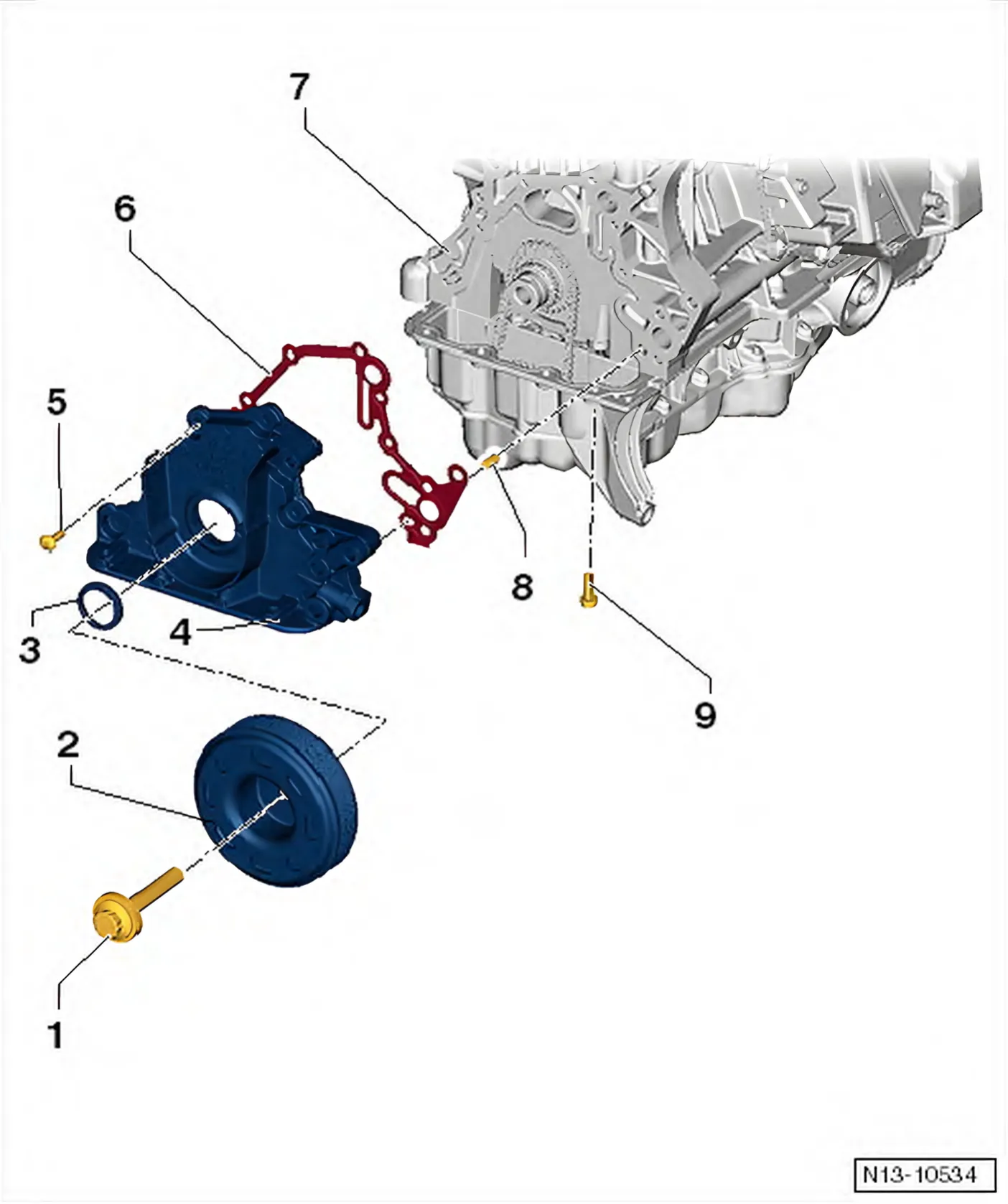

Sealing flange, belt pulley end – assembly overview and fastening
- 1 Bolt
- 2 Vibration damper
- Removing and installing ⇒ 1.5 Removing and installing vibration damper
- 3 Seal
- For crankshaft on belt pulley end
- Renew after removal ⇒ 1.7 Renewing crankshaft oil seal - belt pulley end
- Do not oil
- 4 Sealing flange at belt pulley end
- Must seat on dowel pins.
- Removing and installing ⇒ 1.8 Removing and installing sealing flange on pulley end
- 5 Bolt
- Different thread diameters ⇒ Electronic parts catalogue
- Renew after removal
- Specified torque and tightening sequence ⇒ 1.2 Assembly overview - sealing flange, belt pulley end
- 6 Seal
- Renew after removal
- 7 Cylinder block
- 8 Dowel pin
- Qty. 2
- 9 Bolt
- Renew after removal
- Specified torque and tightening sequence ⇒ 1.2 Assembly overview - sealing flange, belt pulley end
Sealing flange at belt pulley end - Prescribed torque and tightening sequence
- Tighten bolts in stages:
| Stage | Bolts | Specified torque/turning further angle |
|---|---|---|
| 1. | -1 … 8- | Screw in by hand as far as stop |
| 2. | -1 … 8- | In diagonal sequence to 8 Nm |
| 3. | -7, 8- | 20 Nm |
| 4. | -1 … 8- | Turn 90° further |
