Poly V-belt drive – assembly overview and fastening

⇒ 1.1.1 Assembly overview - poly V-belt drive, vehicles without air conditioner compressor

⇒ 1.1.2 Assembly overview - poly V-belt drive, vehicles with air conditioner compressor

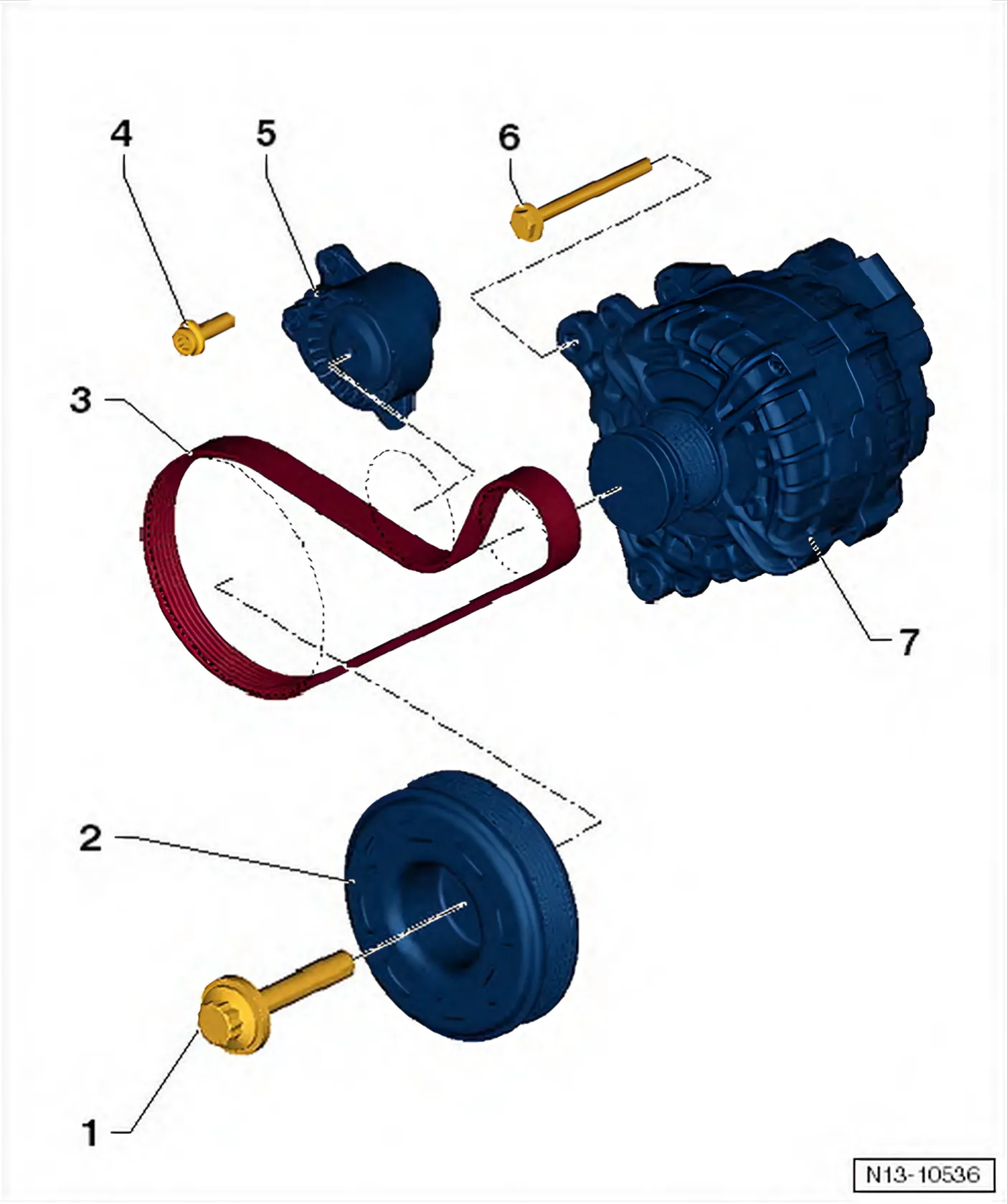

1.1.1 Assembly overview - poly V-belt drive, vehicles without air conditioner compressor

• 1 Bolt
  • Renew after removal
  • 150 Nm +180°
  • Use counter-hold tool - T10475- to loosen and tighten
• 2 Vibration damper
  • Removing and installing ⇒ 1.5 Removing and installing vibration damper
• 3 Poly V-belt
  • Check for wear
  • Before removing, mark direction of rotation with chalk or felt-tipped pen
  • Do not kink
  • Poly V-belt routing ⇒ 1.3.1 Removing and installing poly V-belt, vehicles without air conditioner compressor
  • Removing and installing ⇒ 1.3 Removing and installing poly-V belt
  • When installing, make sure it is properly seated on pulleys.
• 4 Bolt
  • 23 Nm
• 5 Tensioning device for poly V-belt
  • Pivot with socket to slacken poly V-belt
  • Lock with locking pin - T10060 A-.
  • Removing and installing ⇒ 1.4 Removing and installing tensioner for poly V-belt
• 6 Bolt
  • Specified torque ⇒ Electrical system; Rep. gr. 27; Alternator; Assembly overview - alternator
• 7 Alternator
  • Removing and installing ⇒ Electrical system; Rep. gr. 27; Alternator; Removing and installing alternator

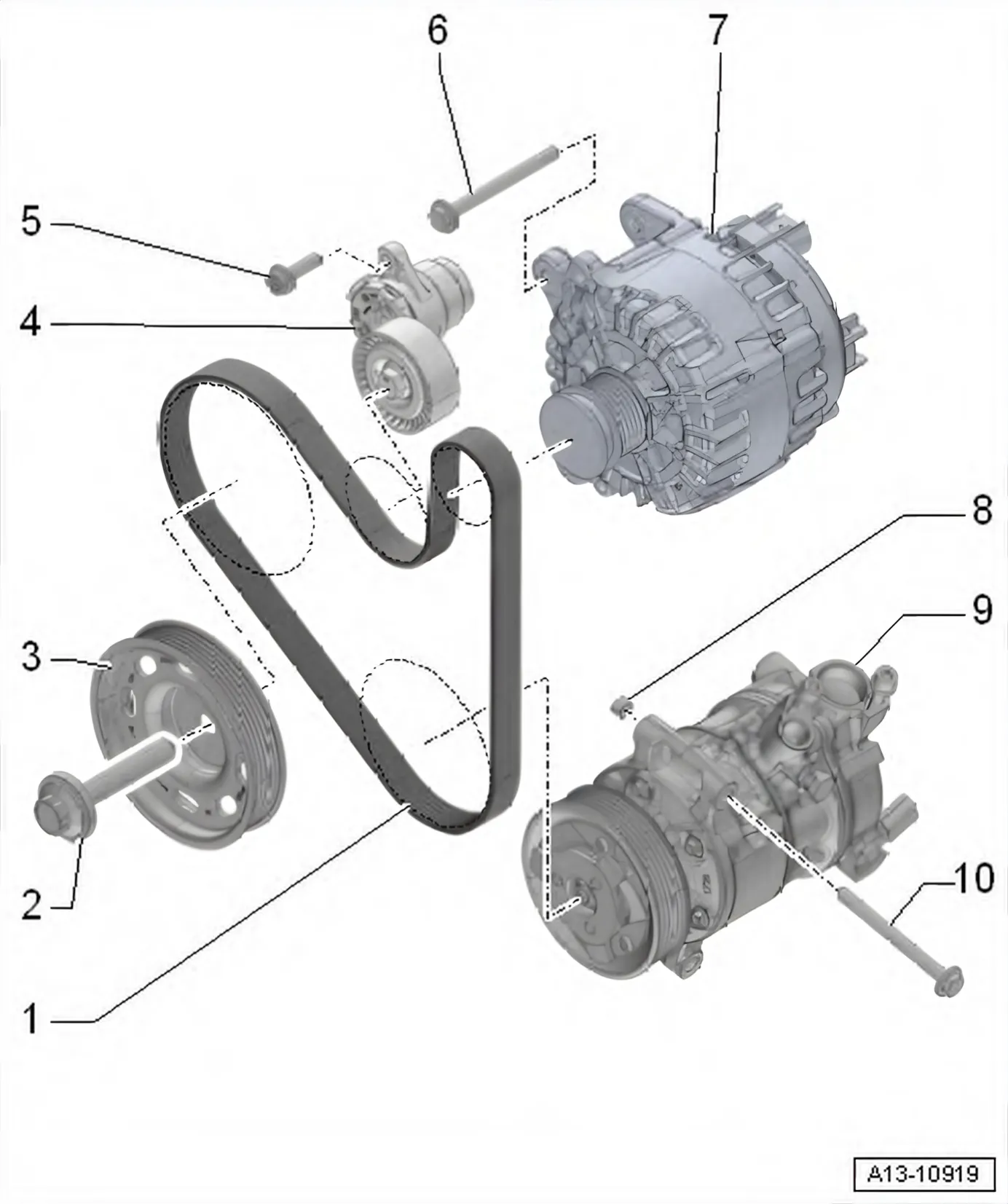

1.1.2 Assembly overview - poly V-belt drive, vehicles with air conditioner compressor

• 1 Poly V-belt
  • Check for wear
  • Before removing, mark direction of rotation with chalk or felt-tipped pen
  • Do not kink
  • Poly V-belt routing ⇒ 1.3.2 Removing and installing poly V-belt, vehicles with air conditioner compressor
  • Removing and installing ⇒ 1.3.1 Removing and installing poly V-belt, vehicles without air conditioner compressor
  • When installing, make sure it is properly seated on pulleys.
• 2 Bolt
  • Specified torque ⇒ Item 1 (1.1.1 Assembly overview - poly V-belt drive, vehicles without air conditioner compressor)
• 3 Vibration damper
  • Removing and installing ⇒ 1.5 Removing and installing vibration damper
• 4 Tensioning device for poly V-belt
  • Pivot with socket to slacken poly V-belt
  • Lock with locking pin - T10060 A-.
  • Removing and installing ⇒ 1.4 Removing and installing tensioner for poly V-belt
• 5 Bolt
  • 23 Nm
• 6 Bolt
  • Specified torque ⇒ Electrical system; Rep. gr. 27; Alternator; Assembly overview - alternator
• 7 Alternator
  • Removing and installing ⇒ Electrical system; Rep. gr. 27; Alternator; Removing and installing alternator
• 8 Dowel sleeve
  • For air conditioner compressor.
• 9 Air conditioner compressor
  • Do not unscrew or disconnect refrigerant lines
  • Removing and installing ⇒ Heating, air conditioning; Rep. gr. 87; Air conditioner compressor; Removing and installing air conditioner compressor
• 10 Bolt
  • Specified torque ⇒ Heating, air conditioning; Rep. gr. 87; Air conditioner compressor; Assembly overview - drive unit of air conditioner compressor.
