1.4 TSI engine (EA211) · Crankshaft group · Pistons and conrods
Removing and installing oil spray jets
Special tools and workshop equipment required

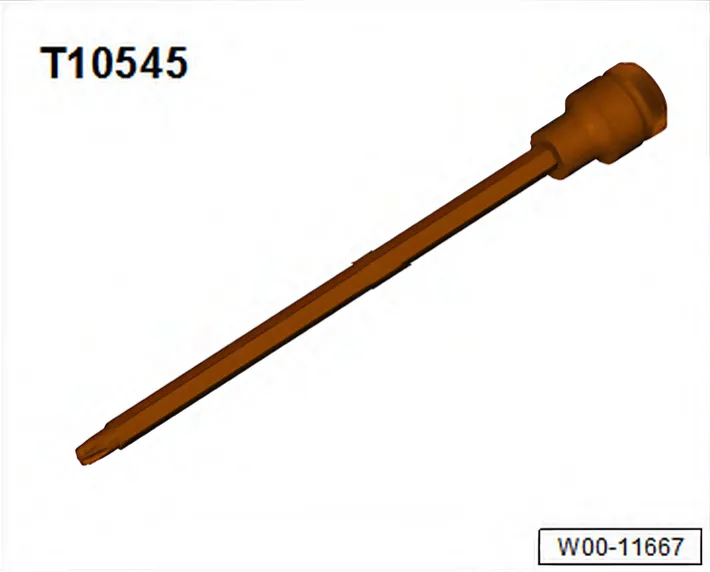

- Torx bit - T10545-
Removing
- Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation; Assembly overview - noise insulation.
- Remove upper part of sump ⇒ 1.4 Removing and installing upper part of sump.
- Turn crankshaft via vibration damper securing bolt in direction of engine rotation until the respective bolt is accessible.

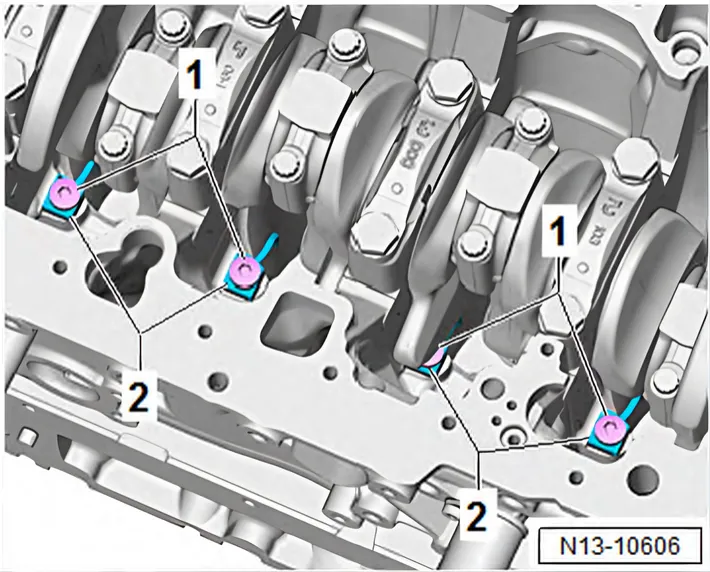

- Unscrew pressure relief valve -1- using Torx bit T40 - T10545-.
- Remove oil spray jets -2-.
Installing
| NOTICE |
Risk of damage to oil spray jets caused by deformation.
- Do not bend oil spray jets.

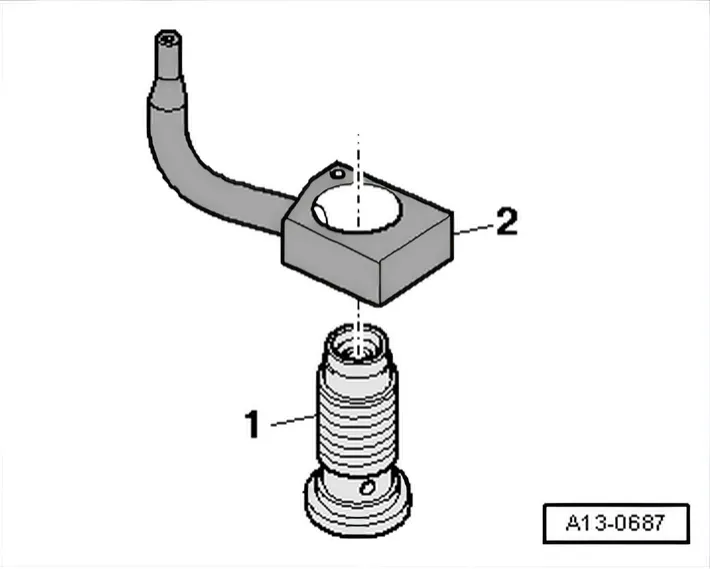

- 1 Pressure relief valve - 27 Nm
- 2 Oil spray jet
- Installation position: align leading edge of oil spray jet arrow with machined surface of cylinder block.
- Install upper part of sump ⇒ 1.4 Removing and installing upper part of sump.
- Install noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation; Assembly overview – noise insulation.
Specified torque:
- ⇒ 1.1 Assembly overview - sump/oil pump
- ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation; Assembly overview - noise insulation
