Securing engine on engine and gearbox support

Special tools and workshop equipment required

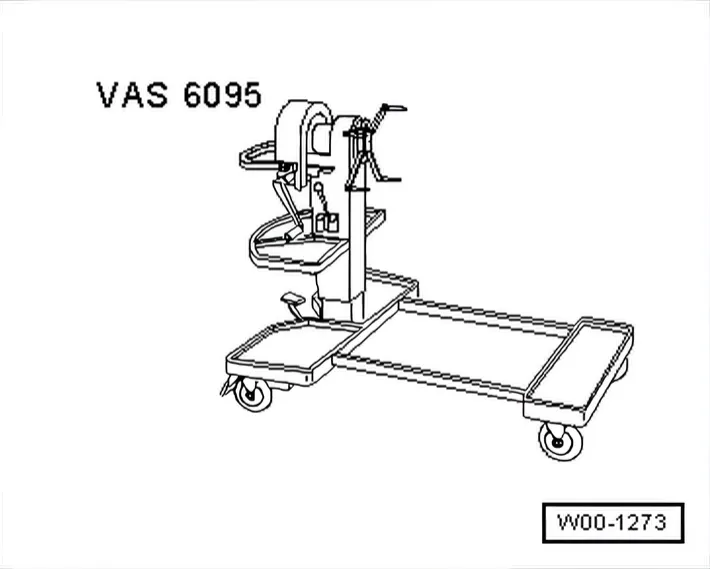

• Engine and gearbox support - VAS 6095-

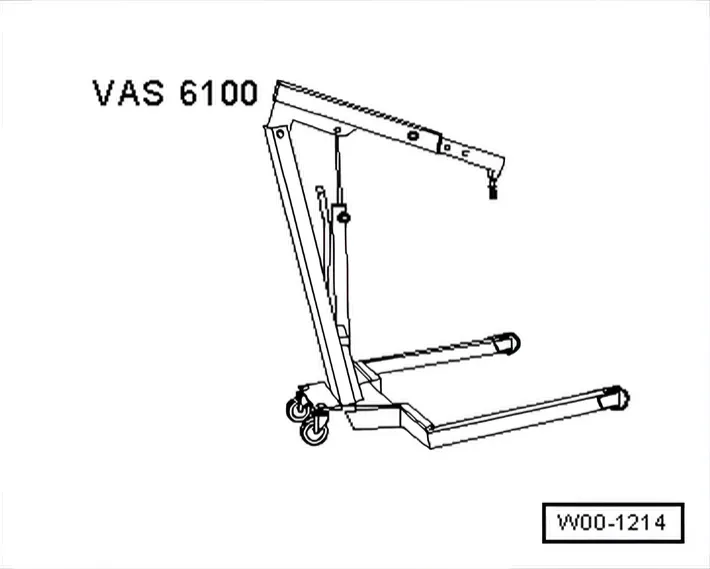

• Workshop hoist - VAS 6100-

Procedure

• Gearbox detached from engine ⇒ 1.2 Separating engine and gearbox.

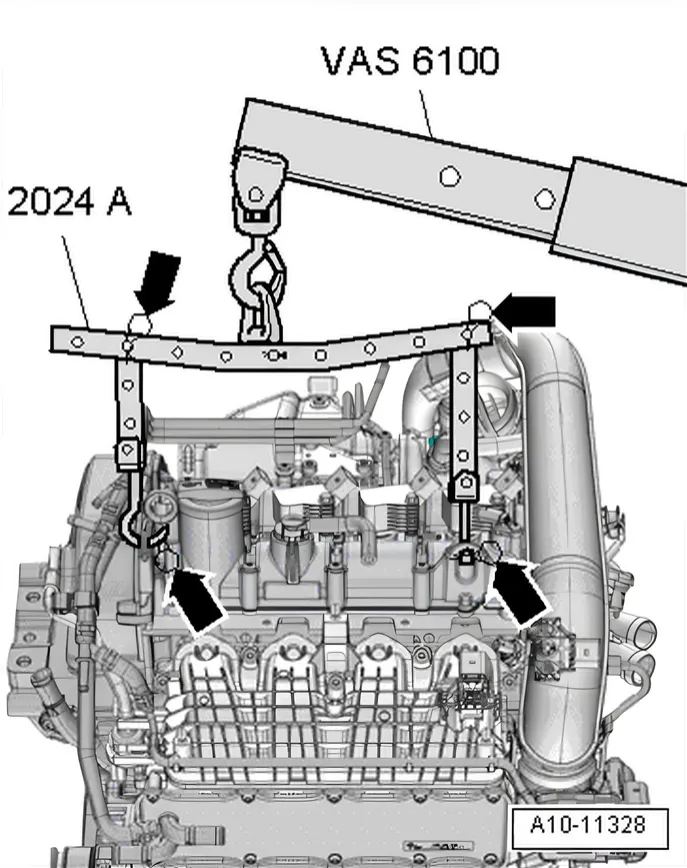

• Secure lifting tackle - 2024 A- on engine, and attach it to workshop hoist - VAS 6100- as shown in illustration.

• The support hooks and retaining pins on the lifting tackle must be secured with locking pins -arrows-.
• Lift engine off T10497 using workshop hoist - VAS 6100-.

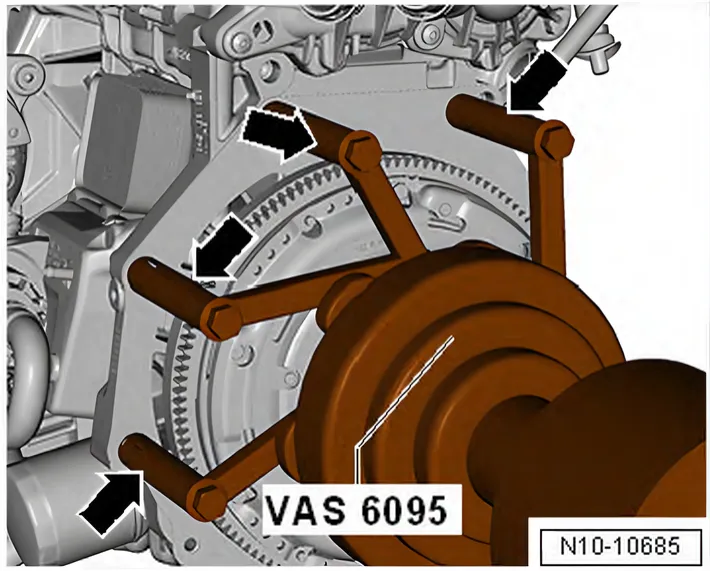

• Secure engine to engine and gearbox bracket - VAS 6095- using pins -arrows- as shown in illustration.
