Removing and installing flywheel

Special tools and workshop equipment required

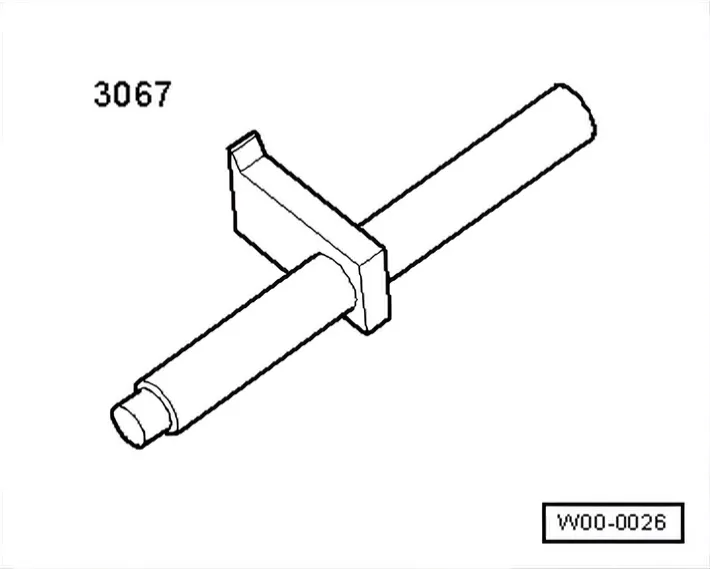

• Counter-hold tool - 3067-

Removing

• Gearbox removed

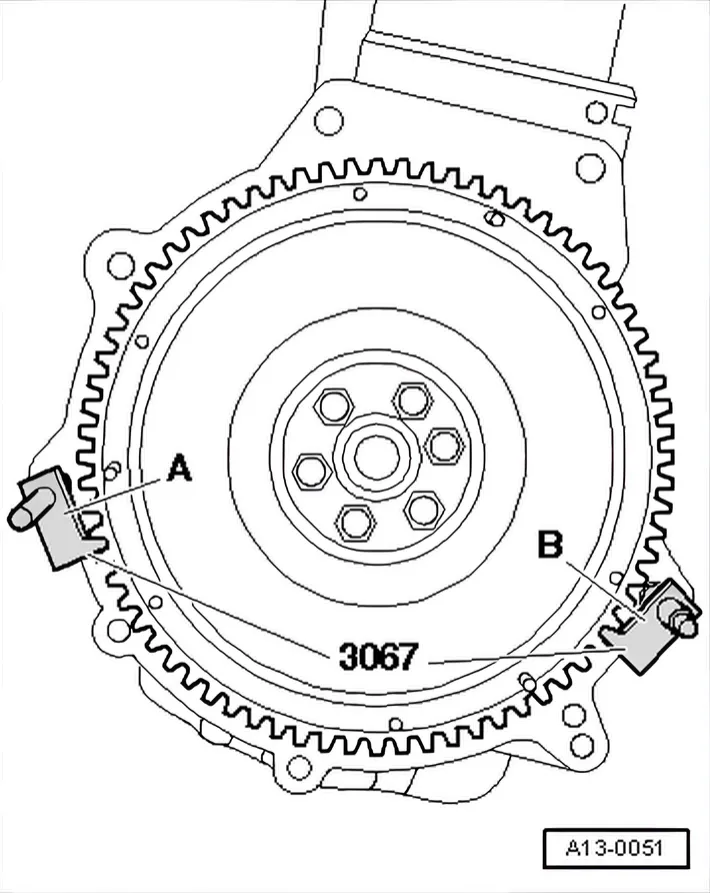

• Insert counterhold - 3067- in hole on cylinder block -item B-.
• Loosen and remove flywheel bolts.

Installing

Install in reverse order of removal, observing the following:

• Specified torque ⇒ 2.1 Assembly overview - cylinder block, gearbox end

• Insert counterhold - 3067- in hole in cylinder block -item A-.
