Water drain hoses

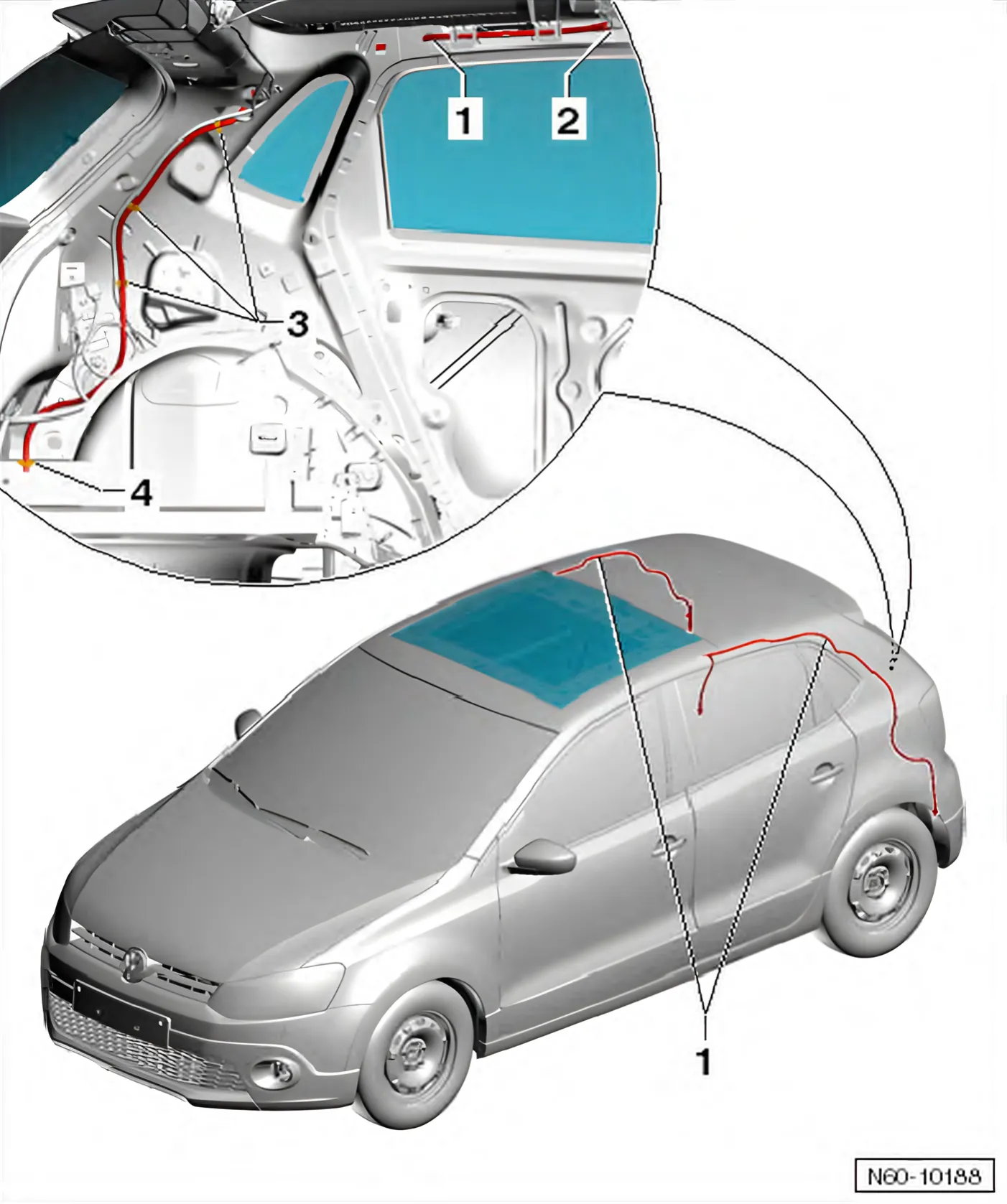

2.1 Assembly overview - water drainage hoses

• 1 Rear water drain hose
• 2 Assembly frame
• 3 Clip
• 4 Drainage grommet

2.2 Cleaning water drainage hoses

Special tools and workshop equipment required

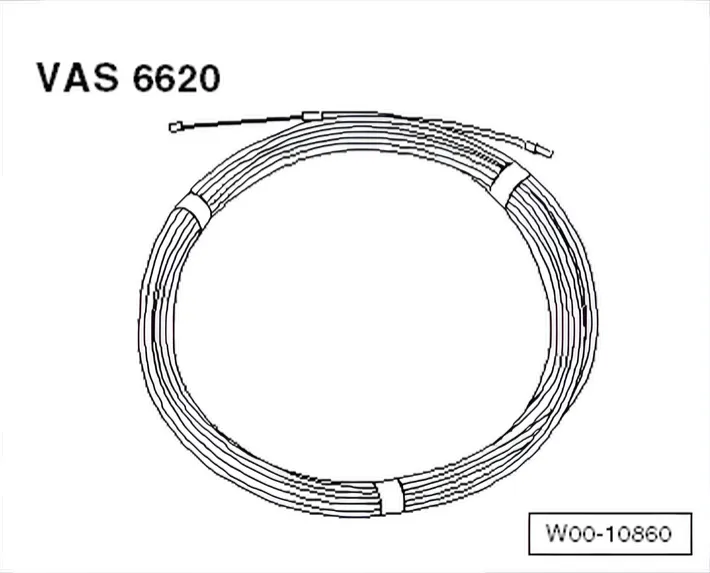

• Cleaning and fitting tool - VAS 6620-

The rear water drain hoses run through the D-pillars and end in the rear outer floor panels.

• Removing bumper of corresponding model.

• Cleaning is carried out from below with the cleaning and pullin cable - VAS 6620-.
