Body repairs – exterior · Sunroof · Sliding sunroof
Removing glass panel when drive is defective
- Open sun blind completely.

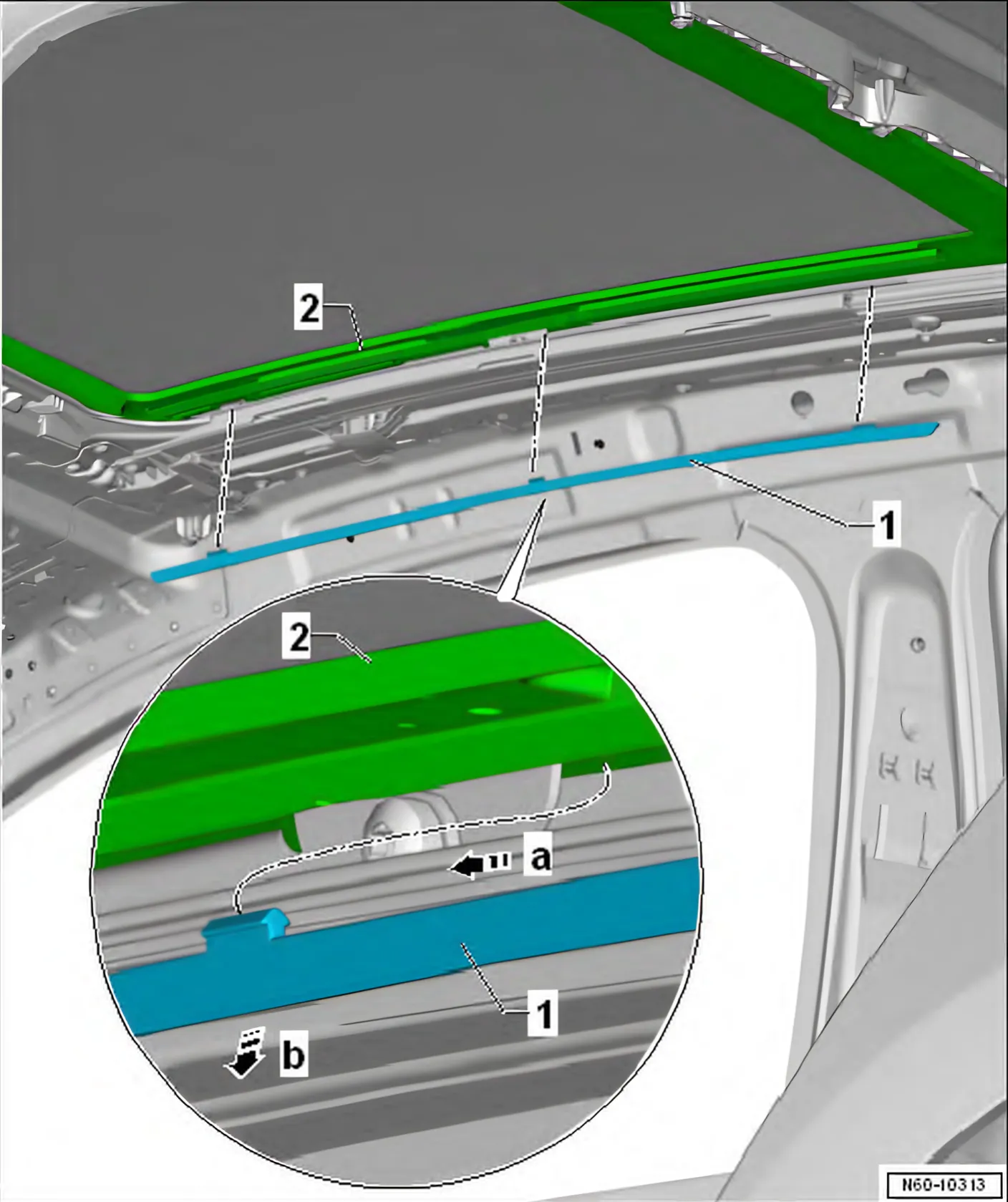

- Push trim -1- forwards slightly -arrow a-.
- Remove trim -1- from sliding sunroof frame -2- -arrow b-.
- Remove moulded headliner ⇒ General body repairs, interior; Rep. gr. 70; Roof trim; Removing and installing moulded headliner.

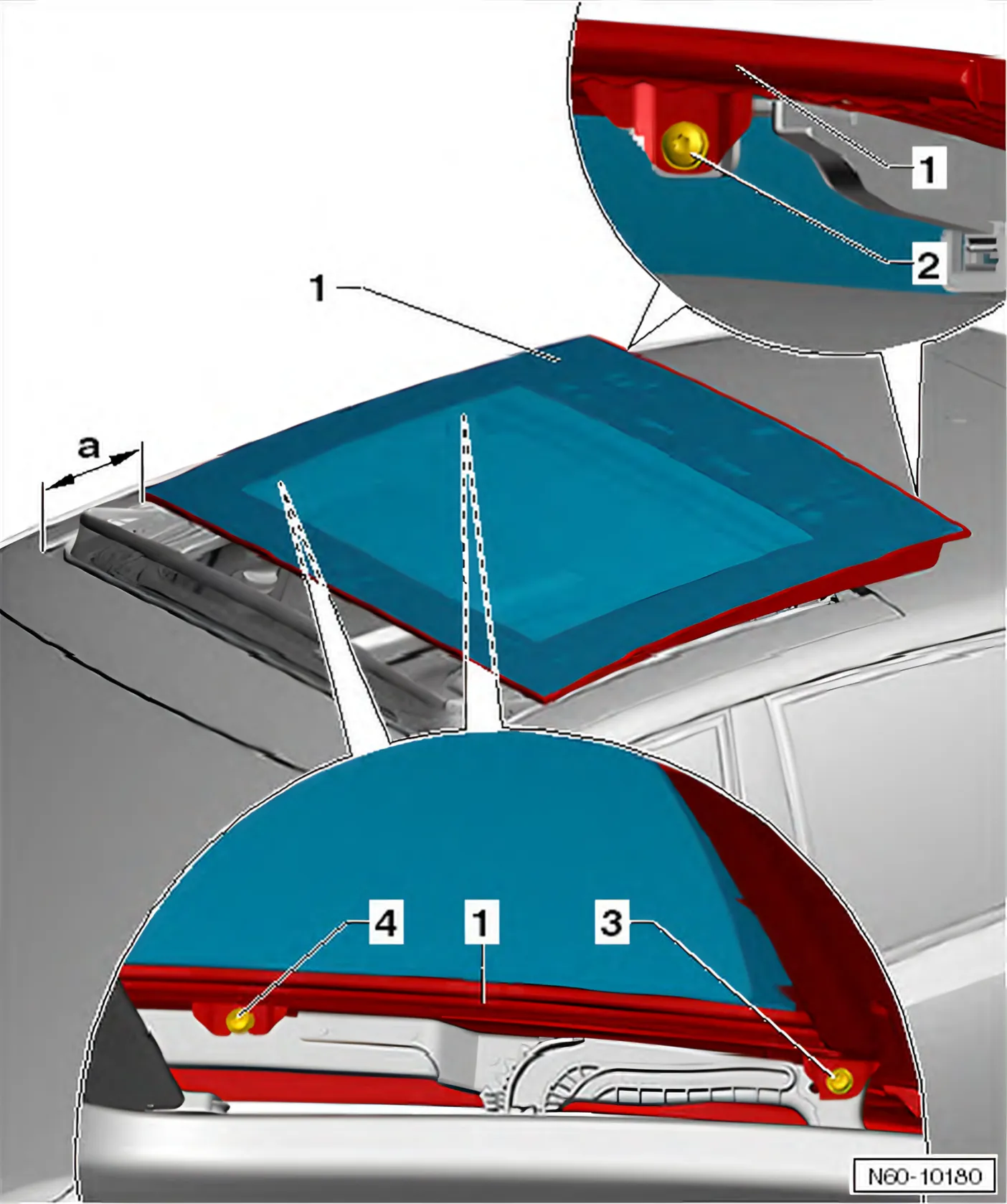

- The rear securing bolts -2- must be unscrewed from inside the vehicle.
- Loosen front securing bolts -4- on left and right but do not undo completely.
- Undo rear securing bolts -3- on left and right.
- Lift out glass panel -1- upwards.
