Body repairs – exterior · Sunroof · Sliding sunroof

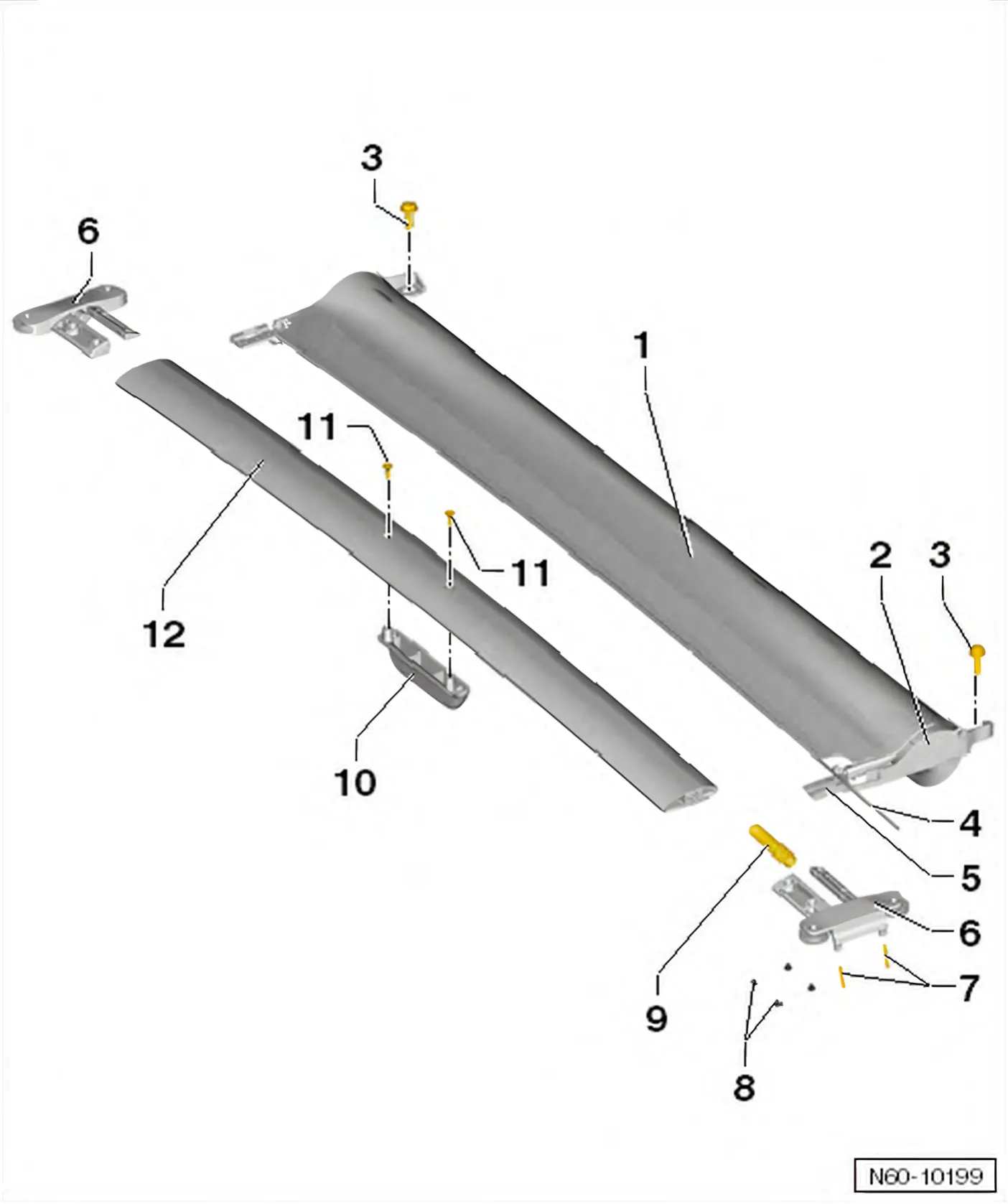

Sunroof roller blind – assembly overview and fastening
- 1 Sun blind
- Removing and installing ⇒ 1.17 Removing and installing sunroof roller blind
- 2 Support
- For the sun blind fabric
- 3 Bolt
- For sun blind
- Qty. 2
- Specified torque: 2.5 Nm
- 4 Tension wire
- For securing the fabric in the tension bow
- 5 Follower
- 6 Roller slider
- 7 Locking pins
- 2 for each roller slider
- 8 Rubber buffer
- 4 for each roller slider
- 9 Spring
- For the roller slider
- 10 Handle
- 11 Bolt
- For the handle
- Qty. 2
- Specified torque: 1 Nm
- 12 Tension bow
- Removing and installing ⇒ 1.18 Removing and installing tension bow
