Bumper cover – assembly overview and fastening

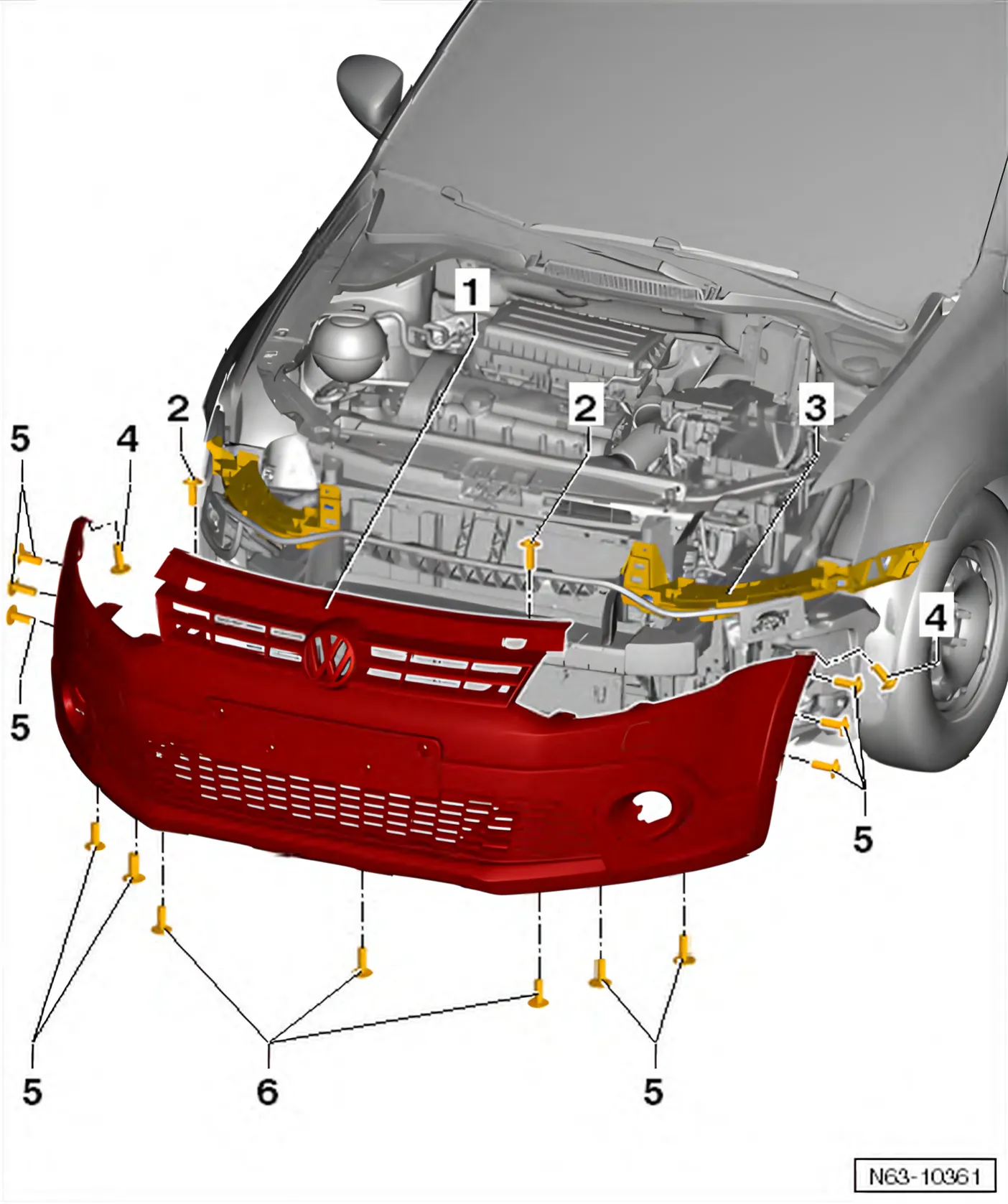

⇒ 1.1.1 Assembly overview – bumper cover, Polo, standard equipment version

⇒ 1.1.2 Assembly overview – bumper cover, Polo BlueMotion

⇒ 1.1.3 Assembly overview – bumper cover, CrossPolo

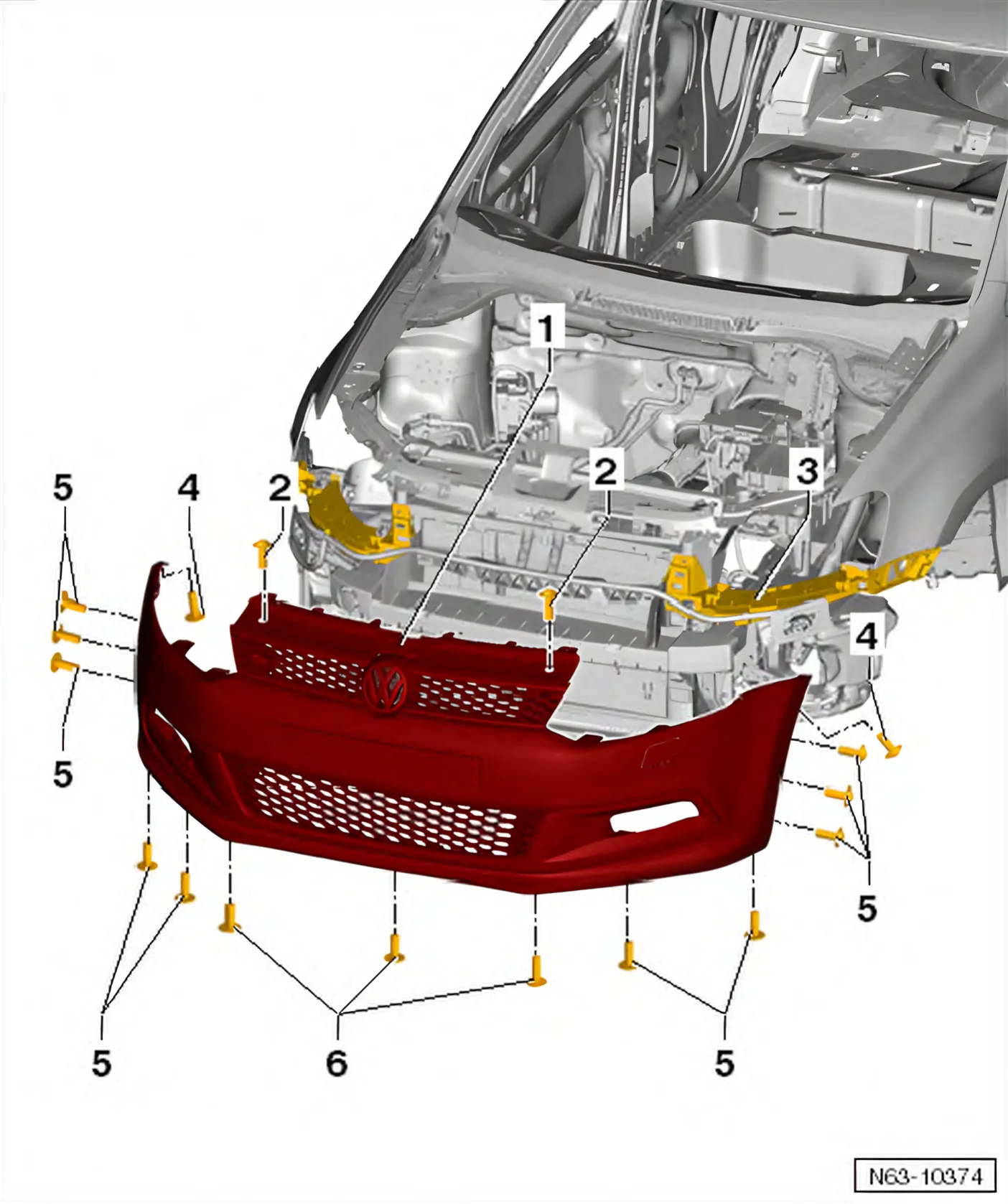

⇒ 1.1.4 Assembly overview – bumper cover, Polo GTI

⇒ 1.1.5 Assembly overview – bumper cover, Polo R-Line

1.1.1 Assembly overview – bumper cover, Polo, »standard« equipment version

• 1 Front bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 1.4.1 Removing and installing bumper cover, Polo, »standard« equipment version
• 2 Bolt
  • Qty. 2
  • Specified torque: 2 Nm
  • Bolted to lock carrier.
• 3 Guide
  • Left and right
• 4 Bolt
  • Left and right
  • Points upwards.
  • Specified torque: 2 Nm
• 5 Bolt
  • Qty. 5 on each side
  • Specified torque: 2 Nm
  • Bolted to wheel housing liner.
• 6 Bolt
  • Qty. 3
  • Specified torque: 2 Nm
  • Bolted to lock carrier.

1.1.2 Assembly overview – bumper cover, Polo BlueMotion

• 1 Front bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 1.4.2 Removing and installing bumper cover, Polo BlueMotion
• 2 Bolt
  • Qty. 2
  • Bolted to lock carrier.
  • Specified torque: 2 Nm
• 3 Guide
  • Left and right
  • ⇒ 1.2 Assembly overview - impact bar
• 4 Bolt
  • Qty. 1 on each side
  • Points upwards.
  • Specified torque: 2 Nm
• 5 Bolt
  • Qty. 5 on each side
  • Bolted to wheel housing liner.
  • Specified torque: 2 Nm
• 6 Bolt
  • Qty. 3
  • Bolted to lock carrier.
  • Specified torque: 2 Nm
• 7 Fastener
  • With lock carrier.
• 8 Front bumper carrier
  • ⇒ 1.2 Assembly overview - impact bar

1.1.3 Assembly overview – bumper cover, CrossPolo

• 1 Front bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 1.4.3 Removing and installing bumper cover, CrossPolo
• 2 Bolt
  • Qty. 2
  • Specified torque: 2 Nm
  • Bolted to lock carrier.
• 3 Guide
  • Left and right
• 4 Bolt
  • Left and right
  • Points upwards.
  • Specified torque: 2 Nm
• 5 Bolt
  • Qty. 5 on each side
  • Specified torque: 2 Nm
  • Bolted to wheel housing liner.
• 6 Bolt
  • Qty. 3
  • Specified torque: 2 Nm
  • Bolted to lock carrier.

1.1.4 Assembly overview – bumper cover, Polo »GTI«

• 1 Front bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 1.4.4 Removing and installing bumper cover, Polo »GTI«
• 2 Bolt
  • Qty. 2
  • Specified torque: 2 Nm
  • Bolted to lock carrier.
• 3 Guide
  • Left and right
• 4 Bolt
  • Left and right
  • Points upwards.
  • Specified torque: 2 Nm
• 5 Bolt
  • Qty. 5 on each side
  • Specified torque: 2 Nm
  • Bolted to wheel housing liner.
• 6 Bolt
  • Qty. 3
  • Specified torque: 2 Nm
  • Bolted to lock carrier.

1.1.5 Assembly overview – bumper cover, Polo »R-Line«

• 1 Front bumper cover
  • Material PP/EPDM.
  • Removing and installing ⇒ 1.4.5 Removing and installing bumper cover, Polo »R-Line«
• 2 Bolts
  • Qty. 2
  • 2 Nm
  • Bolted to lock carrier.
• 3 Guide
  • Left and right
• 4 Bolts
  • Left and right
  • Points upwards.
  • 2 Nm
• 5 Bolts
  • Qty. 5 on each side
  • 2 Nm
  • Bolted to wheel housing liner.
• 6 Bolts
  • Qty. 3
  • 2 Nm
  • Bolted to lock carrier.
