Body repairs – exterior · Sunroof · Sliding sunroof

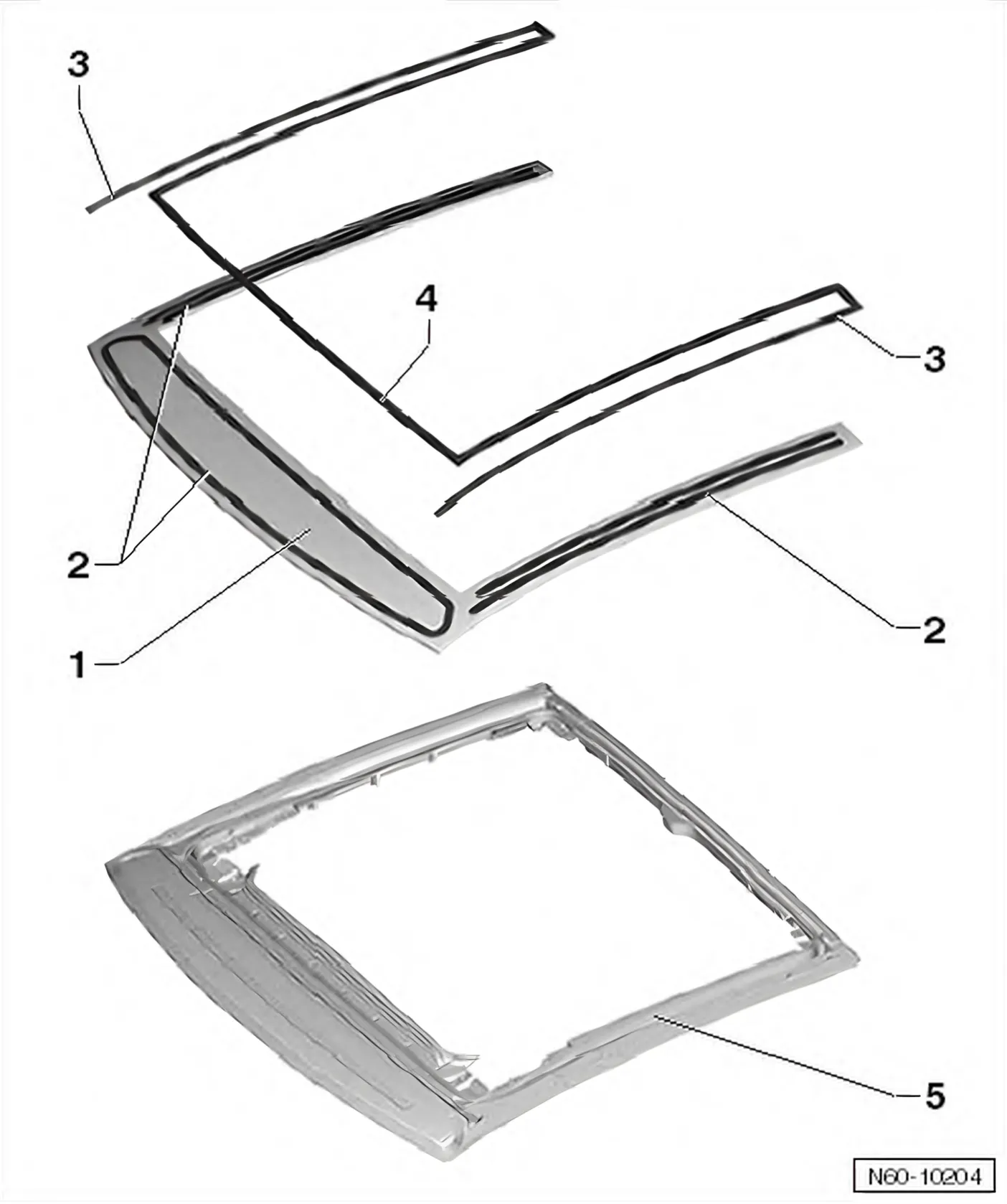

Sliding sunroof frame and front trim – assembly overview and fastening

1 Trim
- Removing and installing ⇒ 1.11 Removing and installing front trim for sliding sunroof
2 Adhesive
3 Outer seal
- Bonded to trim
- Cannot be replaced as an individual item
4 Inner seal
- Bonded to trim
- Cannot be replaced as an individual item
5 Assembly frame
- Removing and installing ⇒ 1.5 Removing and installing sliding sunroof frame
