Removing and installing tension bow

Removing pulling rib

• Open glass panel.
• Push roller blind towards front, and close it halfway while doing so.

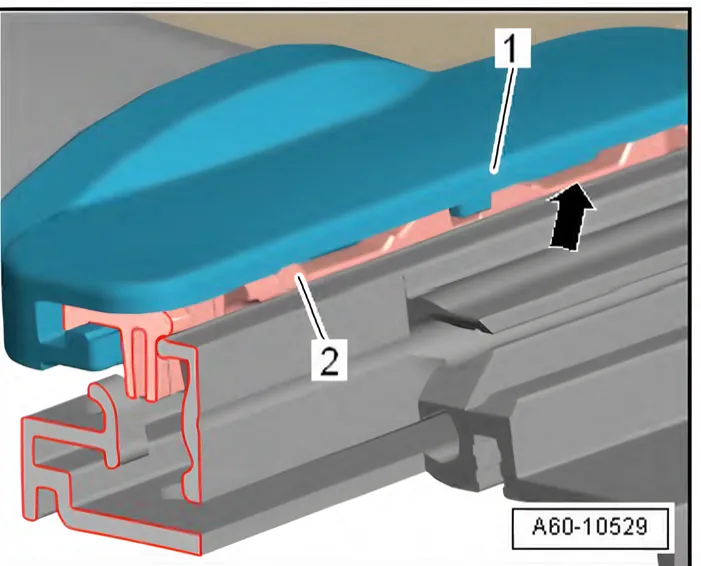

• Insert a plastic wedge -arrow- into recess, and carefully lift upper part of slide out of catch in lower part of slide.
• On both slides, push upper part of slide towards rear against lower part of slide, and open slides in this way.
• Remove tension bow upwards.

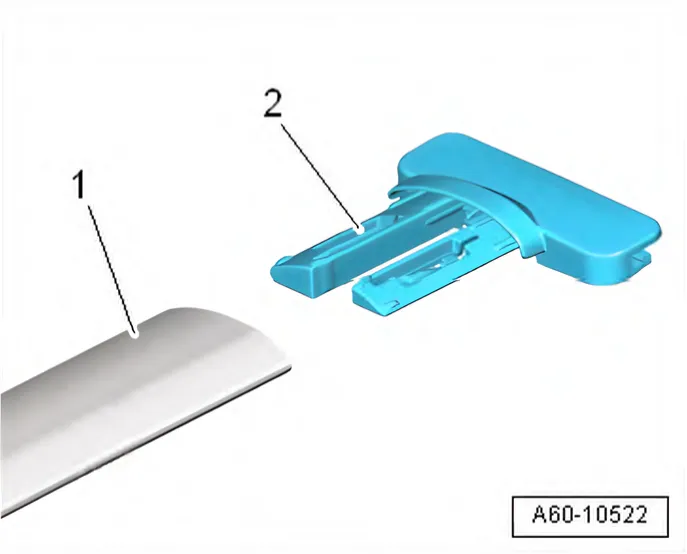

• Pull both slide upper parts -2- towards side out of tension bow -1-.

• Pull tension bow -2- towards side off sunroof sun blind -1-.

Installing pulling rib

• Sunroof sun blind is installed.

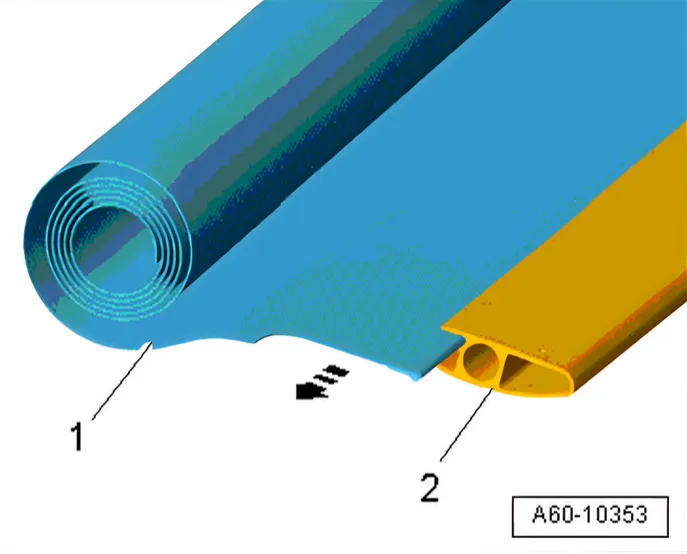

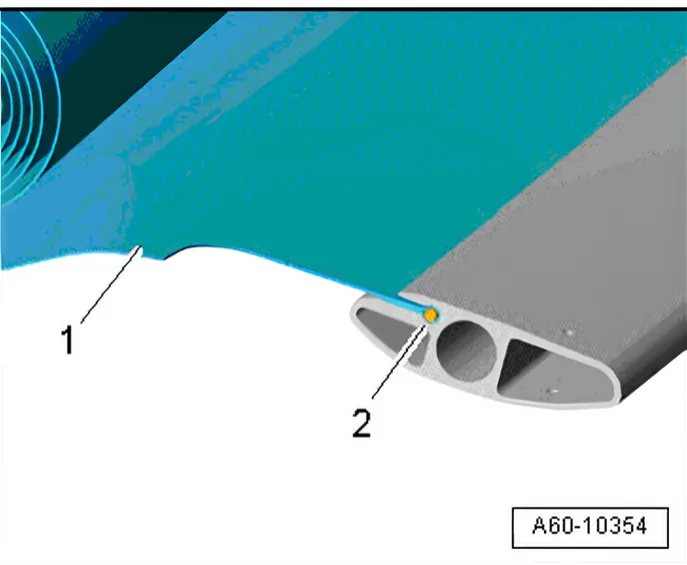

• Carefully push beading -2- of roller blind fabric -1- which has been pushed into the loop into the beading channel of the tension bow.

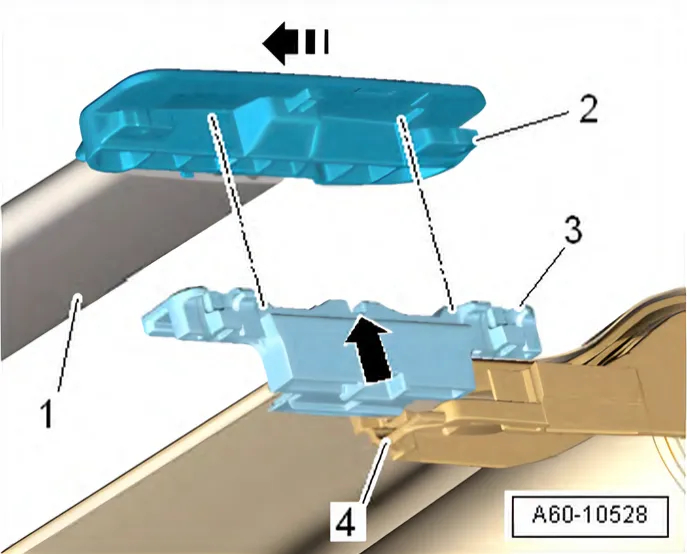

• Push slide upper parts -2- on both sides into tension bow -1-.
• Push upper part of slide -3- in direction of arrow from rear towards front into catch -arrow- in lower part of slide.

Removing and installing handle

• Open glass panel.

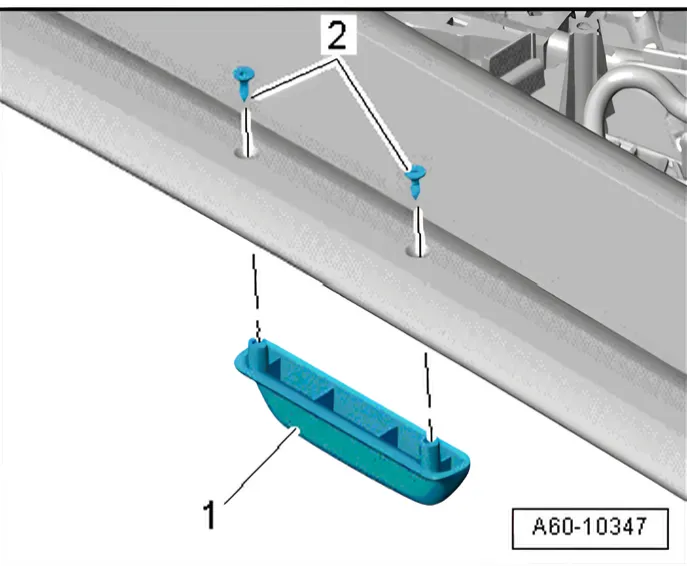

• Unscrew bolts -2-, and pull off handle -1-.
• Reinstall handle to tension bow, and make sure that the roller blind can be opened and closed completely.
• Fit handle -4- and tighten screws -3-. Specified torque: 1 Nm.
