Body repairs – exterior · Sunroof · Sliding sunroof
Removing and installing interior seal
Removing:
- Remove glass panel ⇒ 1.7 Removing and installing glass panel.

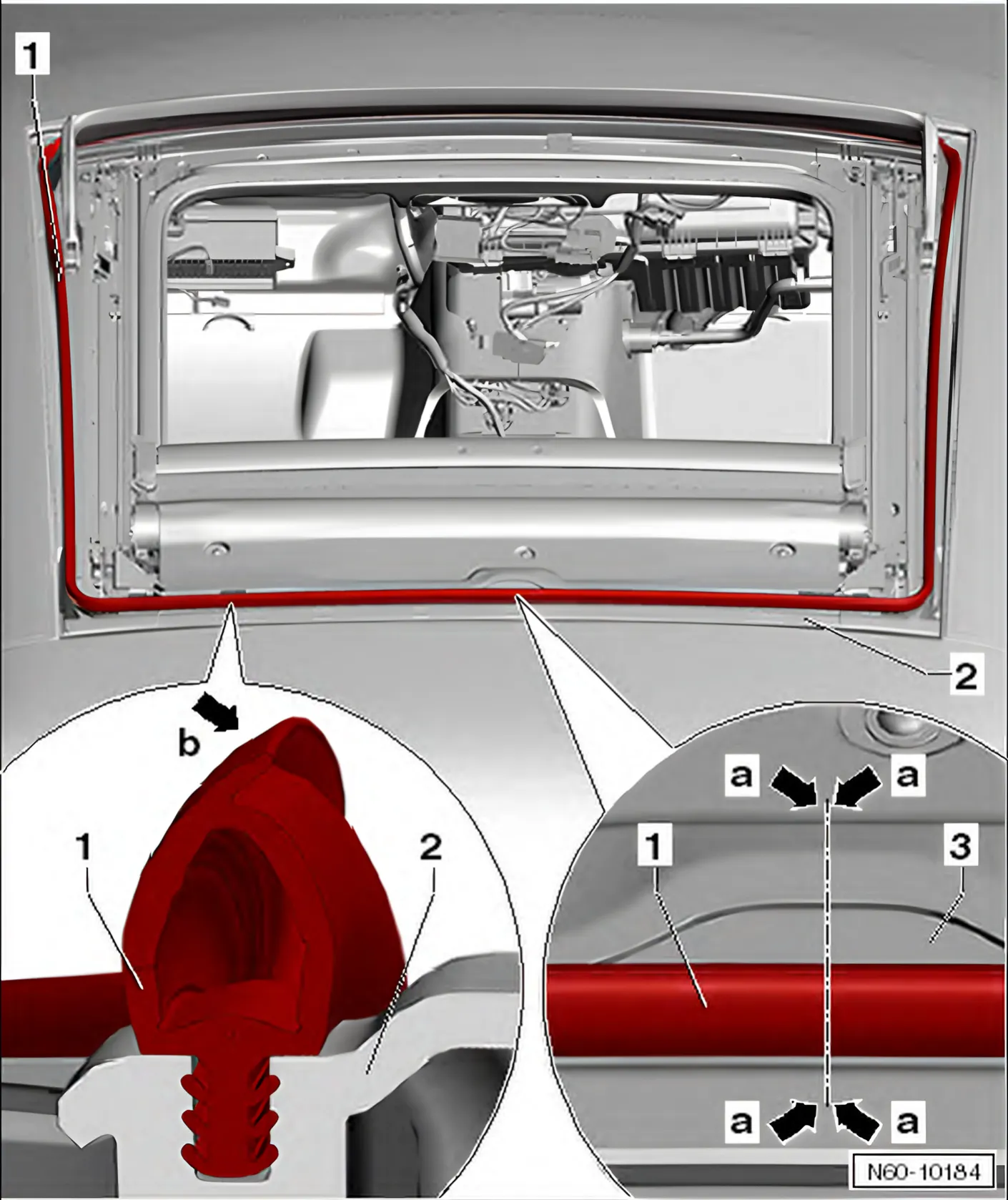

- Pull seal -1- out of assembly frame -2-.
Installing:
- Align interior seal -1- with vulcanisation point facing towards curve on assembly frame -3- -arrows a-.
- Lip of seal -arrow b- must face outwards.
Press interior seal -1- into mounting slot of assembly frame -2- uniformly.
