Supporting engine in installation position

Special tools and workshop equipment required

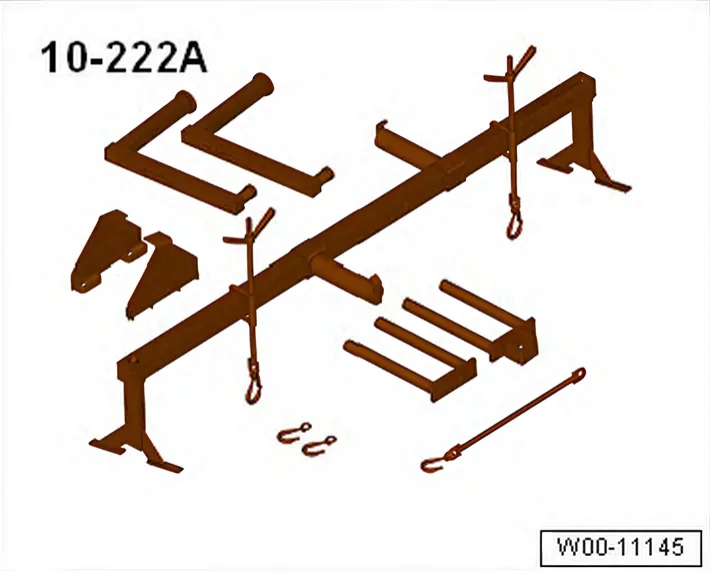

• Support - 10 - 222 A-

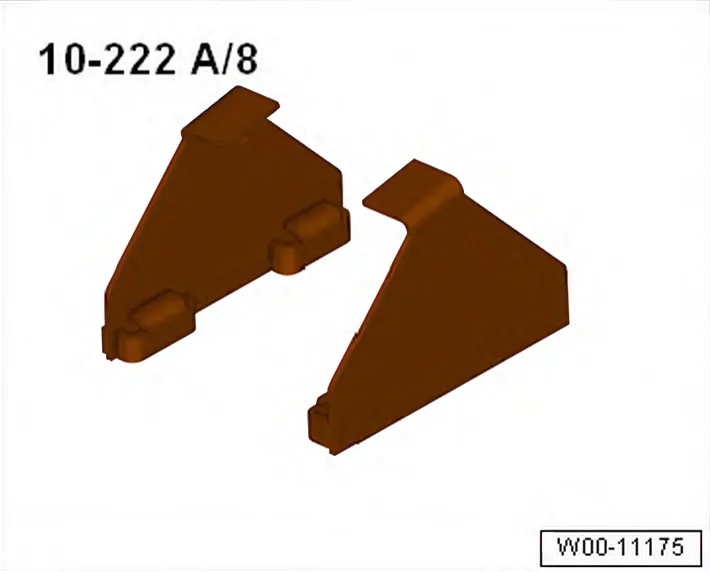

• Adapter - 10 - 222 A /8-

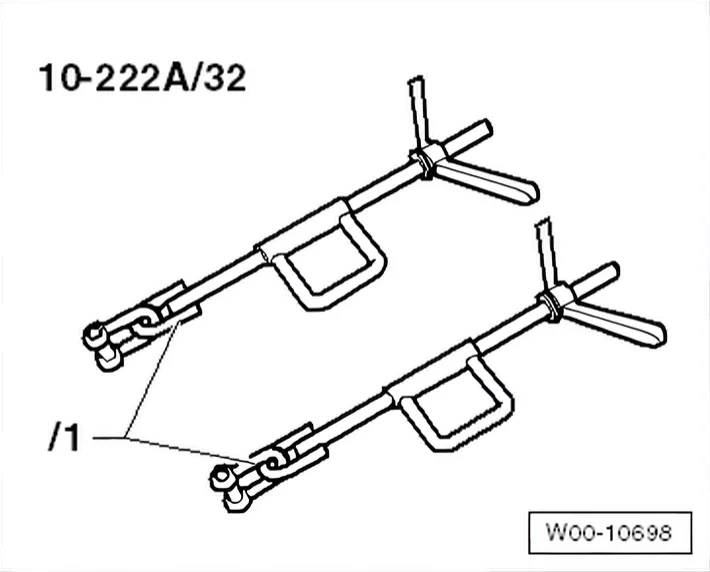

• Adapter - 10 - 222 A /32-

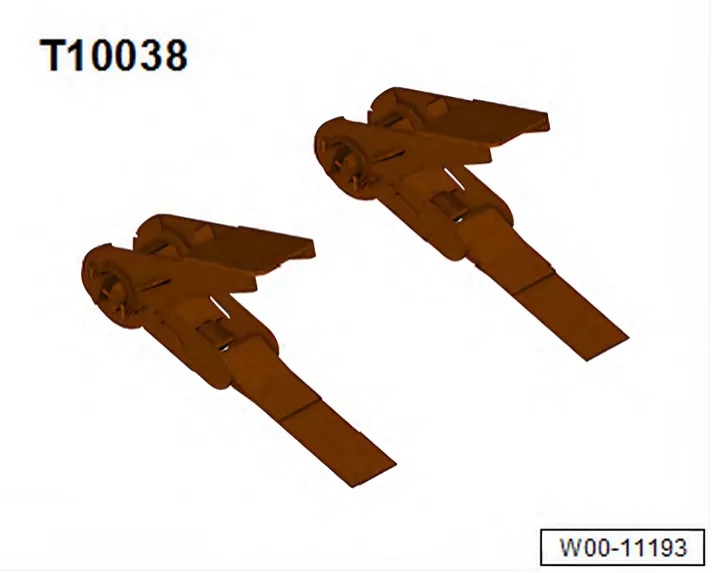

• Tensioning strap - T10038-

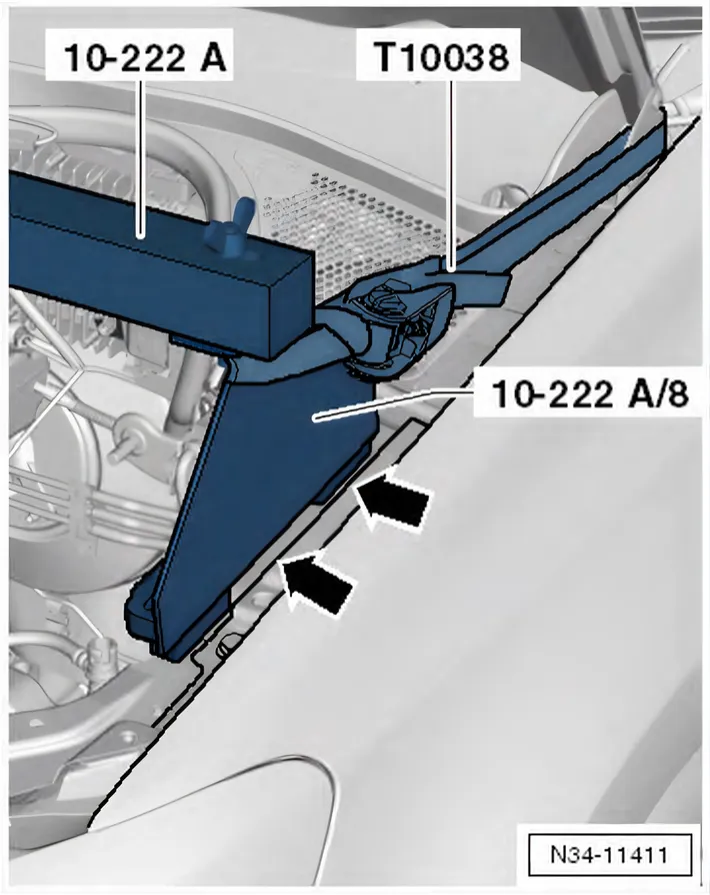

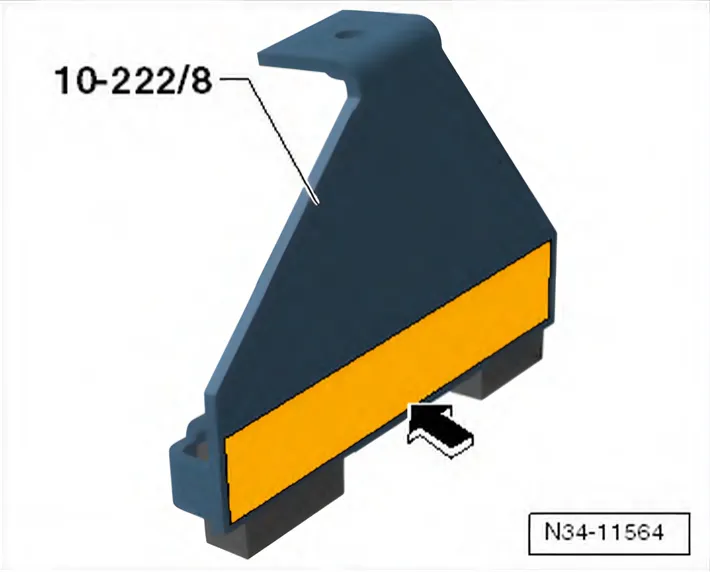

To prevent damage to edges of wings, cover lower areas of both adapters - 10 - 222 A /8- with woven adhesive tape -arrow- ⇒ Electronic Parts Catalogue (ETKA).

Procedure

• Remove air filter housing ⇒ 3.2 Removing and installing air filter housing.
• Remove battery tray ⇒ Electrical system; Rep. gr. 27; Battery; Removing and installing battery tray.

• Detach seals from upper edge of wing.
• Slide adapter - 10 - 222 A /32- onto engine support bracket -
  • 10 222 A- as shown in illustration.
• Mount adapter - 10 - 222 A /8- on engine support bracket - 10
  • 222 A-.
• Lift up plenum chamber cover at sides.
• Position engine support bracket - 10 - 222 A- on left and right onto longitudinal members as shown in illustration.

• Do not position engine support bracket - 10 - 222 A- on edges of wings.

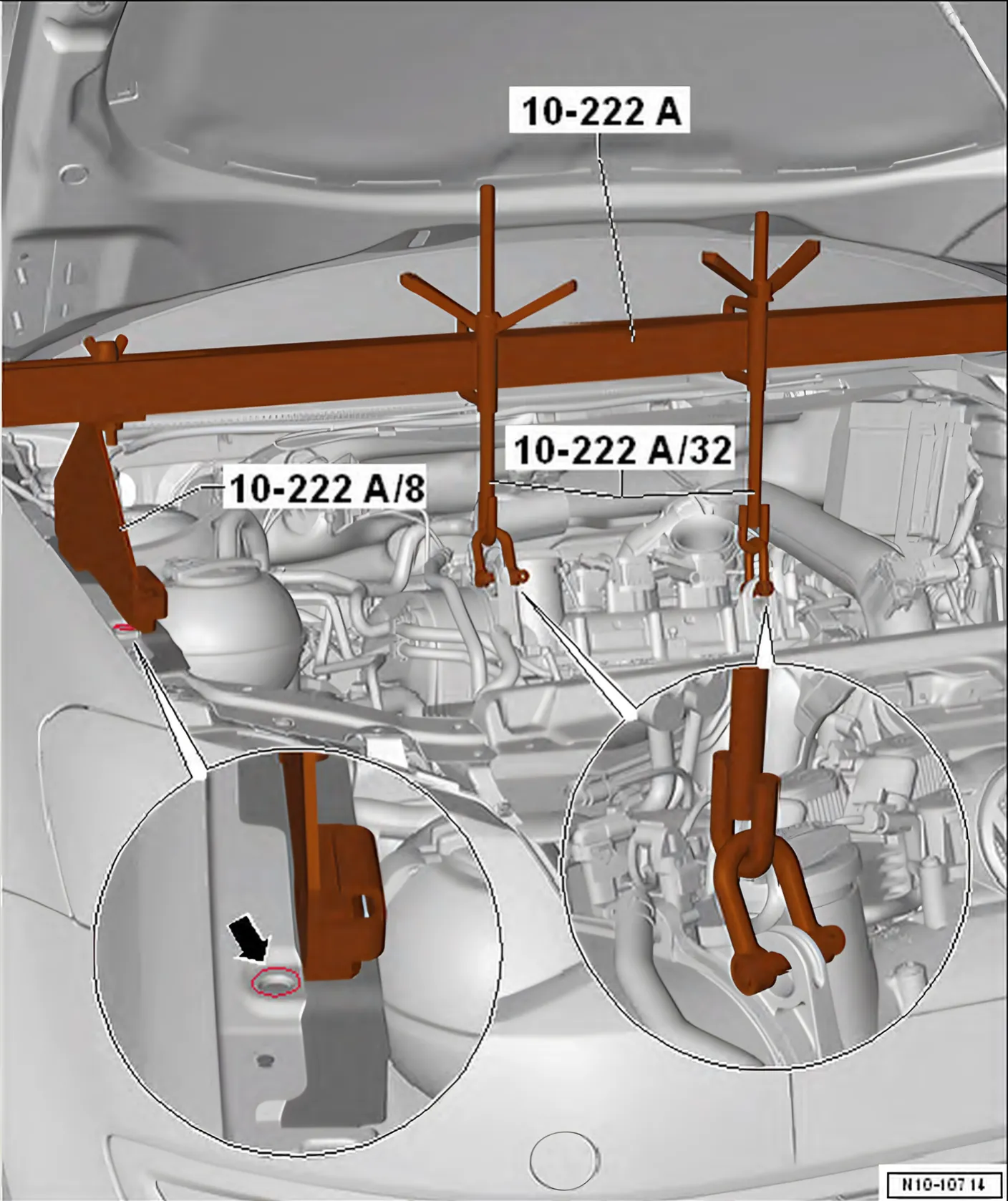

• Fit adapter - 10 - 222 A /8- behind the hole -arrow- and align it.
• Mount adapter - 10 - 222 A /32- to mountings on engine as shown in illustration.

• Secure engine support bracket - 10 - 222 A- using tensioning straps - T10038- on both sides of bonnet hinges.
• Take up weight of engine/gearbox assembly slightly with spindle; do not lift.
