1.4 TSI engine (EA211) · Cooling · Cooling system/coolant

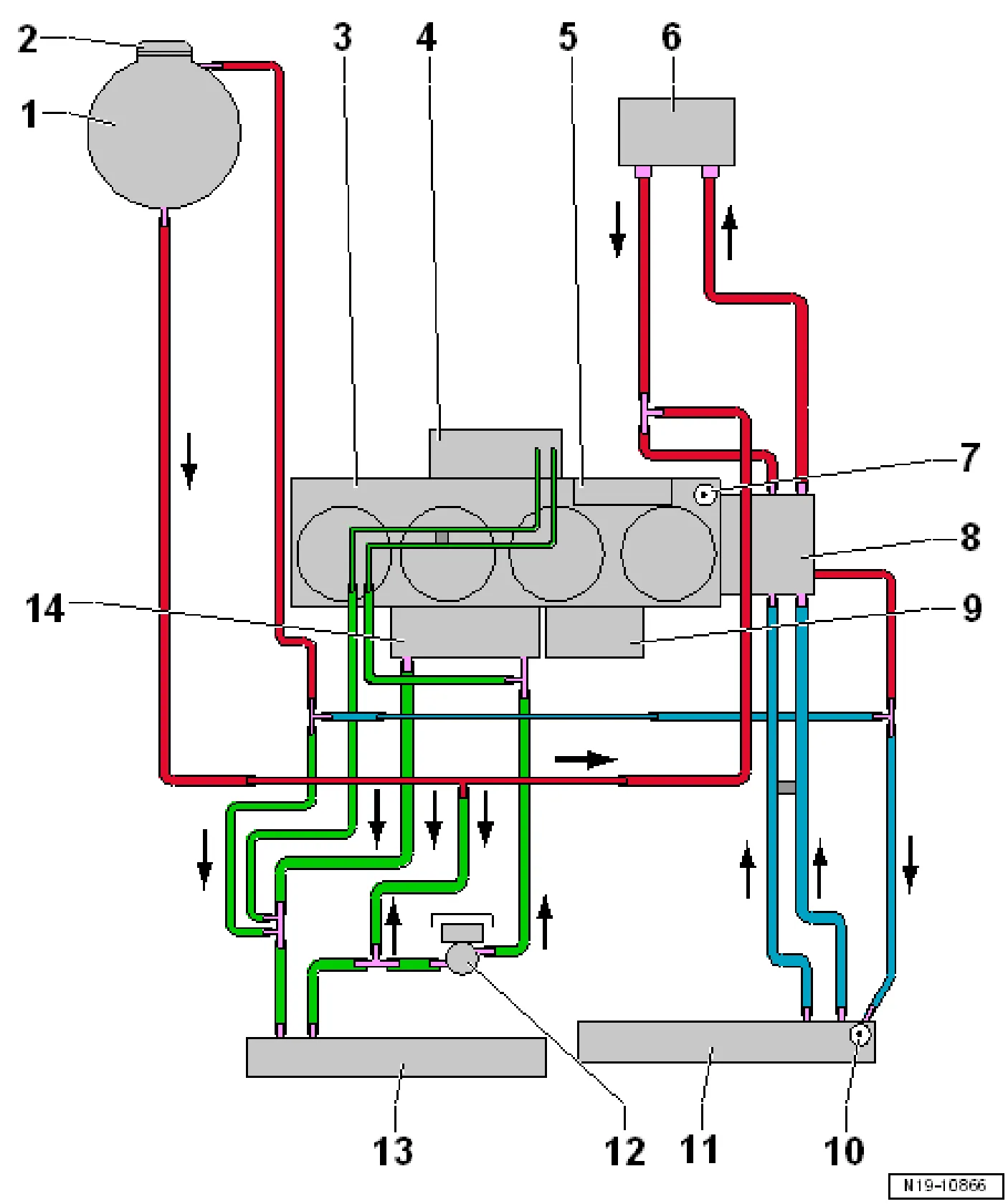

Connection diagram - coolant hoses
Vehicles ►June 2013
- 1 Coolant expansion tank
- 2 Cap
- For coolant expansion tank
- Check pressure relief valve ⇒ 1.2 Checking cooling system for leaks
- 3 Cylinder head/cylinder block
- Renew coolant after replacing
- Assembly overview ⇒ 1.1 Assembly overview - cylinder head
- 4 Exhaust turbocharger
- Assembly overview ⇒ 1.1 Assembly overview - turbocharger
- Removing and installing ⇒ 1.2 Removing and installing turbocharger
- 5 Integrated exhaust manifold
- 6 Heat exchanger for heater
- Renew coolant after replacing
- 7 Radiator outlet coolant - G62-
- Assembly overview ⇒ 2.3 Assembly overview - coolant temperature sender
- Removing and installing ⇒ 2.8 Removing and installing coolant temperature sender G62
- 8 Coolant pump
- With thermostat housing
- Assembly overview ⇒ 2.1 Assembly overview - coolant pump, thermostat
- Removing and installing ⇒ 2.5 Removing and installing coolant pump
- Removing and installing thermostat ⇒ 2.6 Removing and installing thermostat.
- 9 Engine oil cooler
- Assembly overview ⇒ 2.1 Assembly overview - engine oil cooler
- Removing and installing ⇒ 2.2 Removing and installing engine oil cooler
- 10 Radiator outlet coolant temperature sender - G83-
- Assembly overview ⇒ 2.3 Assembly overview - coolant temperature sender
- Removing and installing ⇒ 2.9 Removing and installing radiator outlet coolant temperature sender G83
- 11 Radiator for engine coolant
- Renew coolant after replacing
- Assembly overview ⇒ 4.1 Assembly overview - radiator/radiator fan
- Removing and installing ⇒ 4.3 Removing and installing radiator
- 12 Charge air cooling pump - V188-
- Assembly overview ⇒ 2.2 Assembly overview - electric coolant pump
- Removing and installing
- 13 Radiator for charge air cooling circuit
- Renew coolant after replacing
- Assembly overview ⇒ 4.1 Assembly overview - radiator/radiator fan
- Removing and installing
- 14 Charge air cooler in intake manifold
- Renew coolant after replacing
- Assembly overview ⇒ 2.1 Assembly overview - charge air system
- Removing and installing ⇒ 2.2 Removing and installing charge air cooler
Vehicles, June 2013 ►
- 1 Coolant expansion tank
- 2 Cap
- For coolant expansion tank
- Check pressure relief valve ⇒ 1.2 Checking cooling system for leaks
- 3 Cylinder head/cylinder block
- Renew coolant after replacing
- Assembly overview ⇒ 1.1 Assembly overview - cylinder head
- 4 Exhaust turbocharger
- Assembly overview ⇒ 1.1 Assembly overview - turbocharger
- Removing and installing ⇒ 1.2 Removing and installing turbocharger
- 5 Integrated exhaust manifold
- 6 Heat exchanger for heater
- Renew coolant after replacing
- 7 Radiator outlet coolant - G62-
- Assembly overview ⇒ 2.3 Assembly overview - coolant temperature sender
- Removing and installing ⇒ 2.8 Removing and installing coolant temperature sender G62
- 8 Coolant pump
- With thermostat housing
- Assembly overview ⇒ 2.1 Assembly overview - coolant pump, thermostat
- Removing and installing ⇒ 2.5 Removing and installing coolant pump
- Removing and installing thermostat ⇒ 2.6 Removing and installing thermostat.
- 9 Engine oil cooler
- Assembly overview ⇒ 2.1 Assembly overview - engine oil cooler
- Removing and installing ⇒ 2.2 Removing and installing engine oil cooler
- 10 Radiator outlet coolant temperature sender - G83-
- Assembly overview ⇒ 2.3 Assembly overview - coolant temperature sender
- Removing and installing ⇒ 2.9 Removing and installing radiator outlet coolant temperature sender G83
- 11 Radiator for engine coolant
- Renew coolant after replacing
- Assembly overview ⇒ 4.1 Assembly overview - radiator/radiator fan
- Removing and installing ⇒ 4.3 Removing and installing radiator
- 12 Charge air cooling pump - V188-
- Assembly overview ⇒ 2.2 Assembly overview - electric coolant pump
- Removing and installing
- 13 Radiator for charge air cooling circuit
- Renew coolant after replacing
- Assembly overview ⇒ 4.1 Assembly overview - radiator/radiator fan
- Removing and installing ⇒ 4.4 Removing and installing water radiator for charge air cooling circuit
- 14 Charge air cooler in intake manifold
- Renew coolant after replacing
- Assembly overview ⇒ 2.1 Assembly overview - charge air system
- Removing and installing ⇒ 2.2 Removing and installing charge air cooler
