1.4 TSI engine (EA211) · Cooling · Radiator, radiator fan

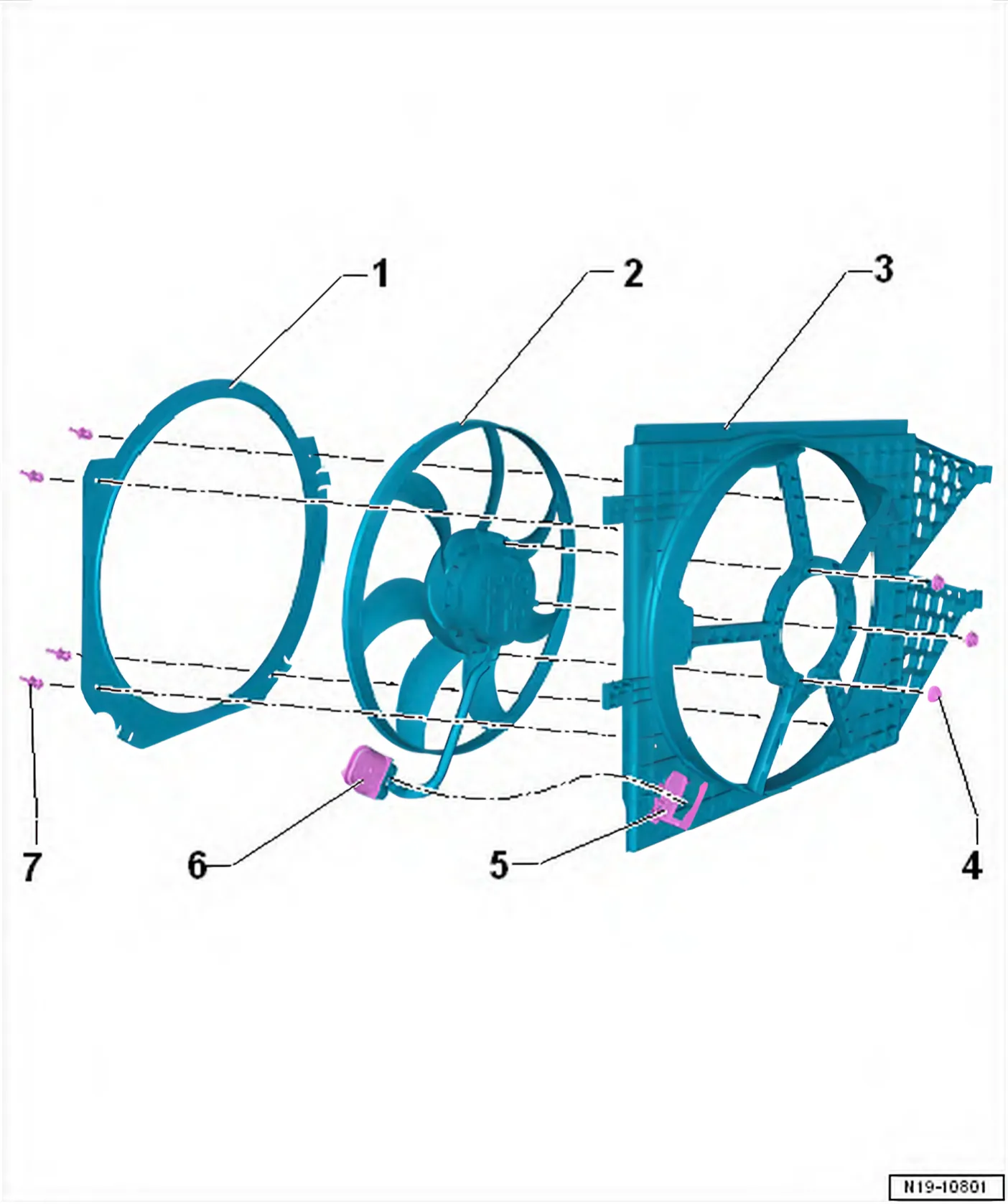

Radiator cowl and radiator fan – assembly overview and fastening

1 Air guide ring
2 Radiator fan - V7-
- Removing and installing ⇒ 4.6 Removing and installing radiator fan V7
3 Radiator cowl
- Removing and installing ⇒ 4.5 Removing and installing radiator cowl with radiator fan
4 Nut
- 8 Nm
- Qty. 3
5 Bracket
- For electrical connector
6 Connector
- For radiator fan - V7-.
7 Spreader rivet
- For securing air guide ring
- Qty. 4
