1.4 TSI engine (EA211) · Cooling · Coolant pump, regulation of cooling system
Removing and installing coolant temperature sender - G62-
Special tools and workshop equipment required

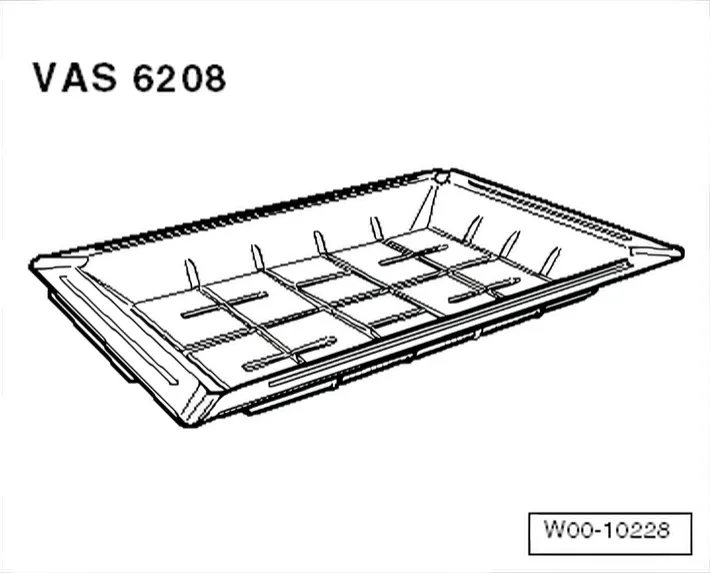

- Drip tray for workshop hoist - VAS 6208-
Removing
- Engine cold.

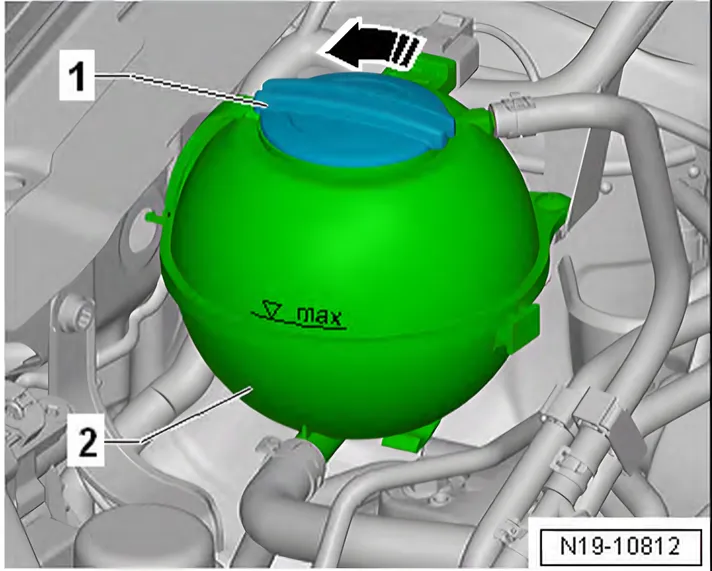

- Carefully open filler cap -1- on coolant expansion tank -2- in -direction of arrow-.
- To relieve residual pressure in cooling system, open filler cap -1- on coolant expansion tank -2- briefly and then close cap again (it should click into place).
- Place drip tray for workshop hoist - VAS 6208- underneath.
- Remove noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.
- Disconnect electrical connectors.

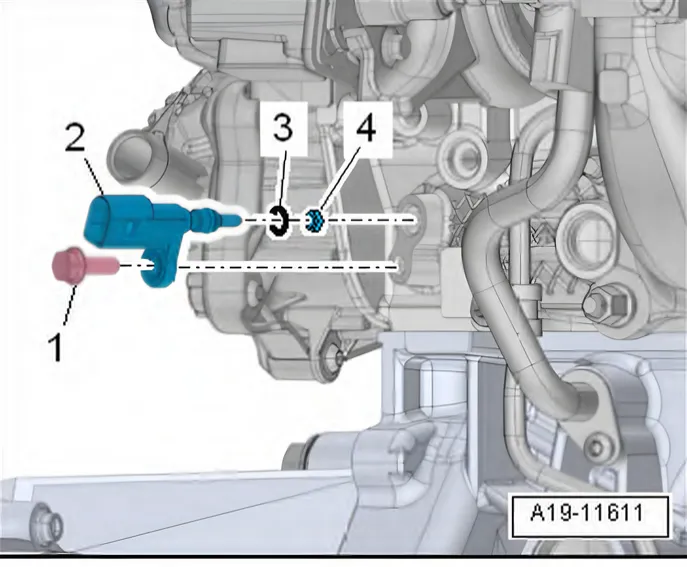

- Unscrew bolt -1- and pull off coolant temperature sender - G62- -item 2-.
Installing
Install in reverse order of removal. The following should be observed:
- Install noise insulation ⇒ General body repairs, exterior; Rep. gr. 66; Noise insulation.
- Check coolant level ⇒ 1.3 Draining and adding coolant.
Torque settings
